HYTORC

MXT+

HYDRAULIC TORQUE WRENCH

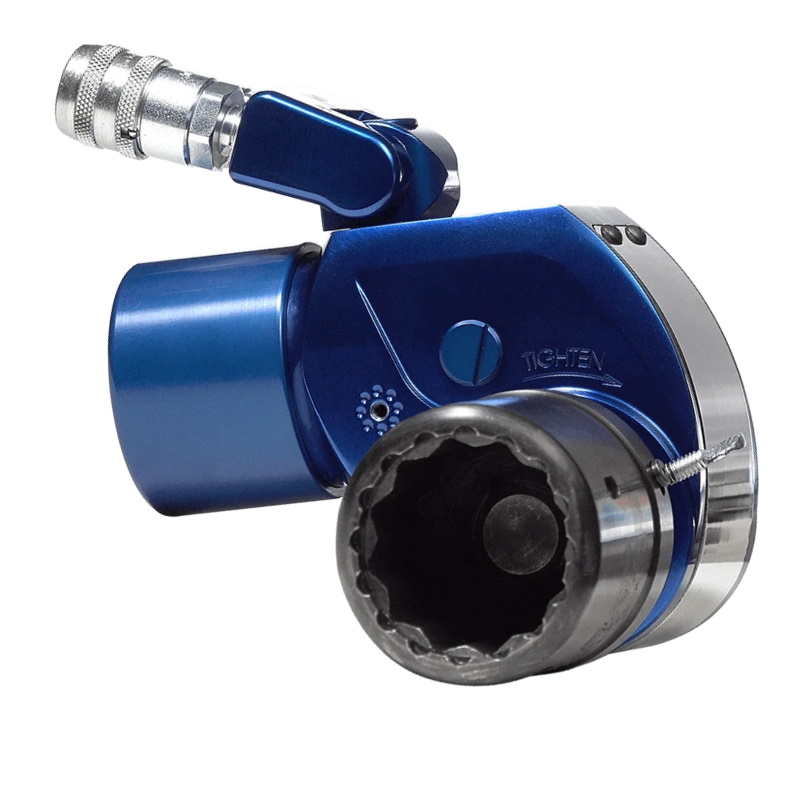

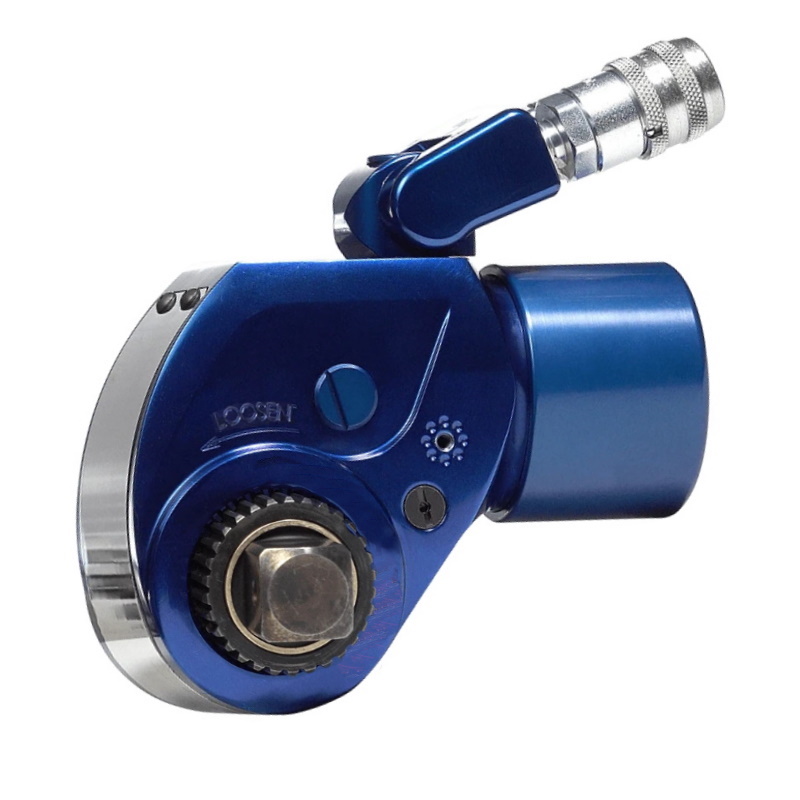

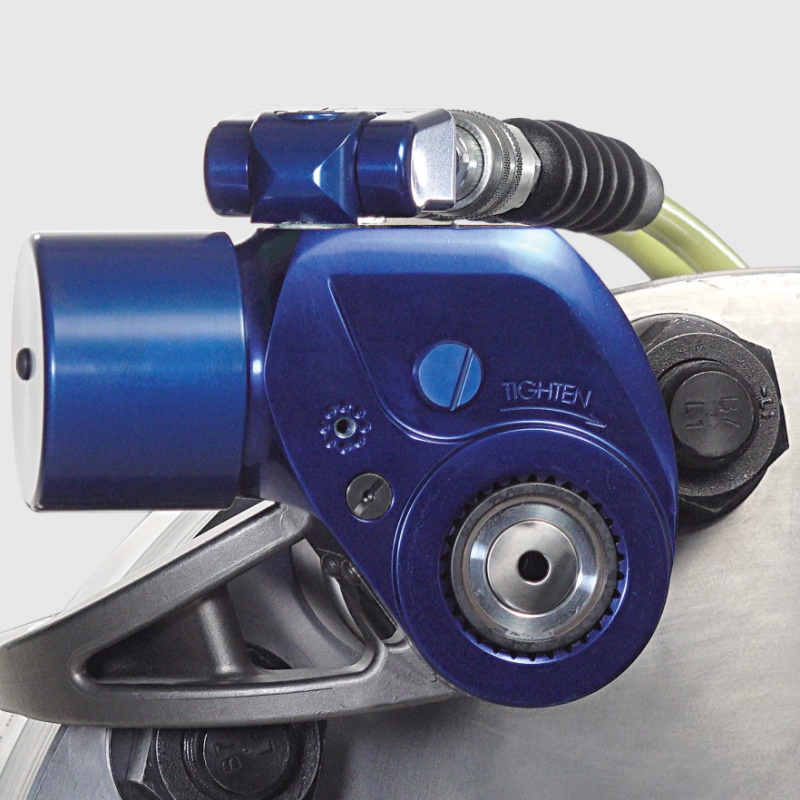

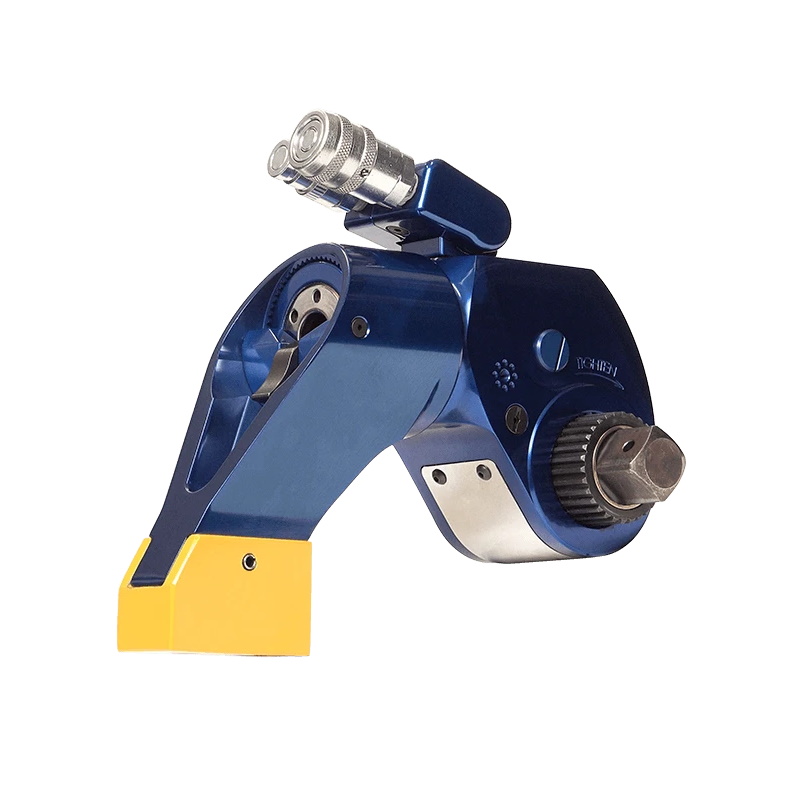

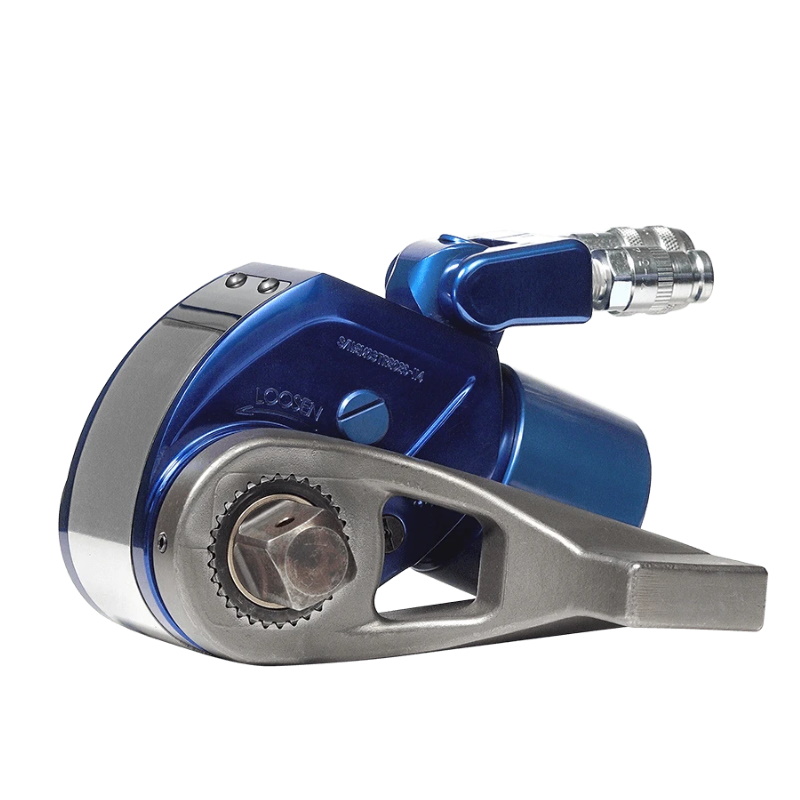

The MXT+ hydraulic torque wrench combines the best of the original MXT with the latest advances in bolting technology including coaxial reaction drive, auto-release feature and a new cycle counter. The MXT+ is constructed from higher strength materials for rugged industrial use and highly repeatable performance. The coaxial drive reaction combined with rear reaction feature provides flexibility to configure the tool in the field. Eliminating the need for two separate tools, compatible with standard sockets and equipped with coaxial drive technology to support the HYTORC Washers and HYTORC NUT systems, the new MXT+ is must-have tool for any industrial bolting situation.

  • A strong and durable frame construction
  • A comprehensive range of reaction arms for both coaxial drive and rear reaction
  • Integrated tool counter for extended tool life
  • Built-in, pump-controlled auto-release mechanism
  • 360° x 360° x 360° uni-swivel for easy setup of tool and hoses in even tight places
  • Equipped with an easy-to-install cover to prevent damage to the tool’s rear splines
  • Fully compatible with HYTORC Washers, J-Washers and NUT



Read more: The new era of hydraulic wrenches begins – HYTORC MXT+ is finally here! >>

Category:

Description



MXT+
Item Drive Torque Range (Nm) R (mm) L (mm) H (mm) W (mm) Weight (kg)
MXTP-01  3/4″ 271 – 1 816 30 131 162 55 3,1
MXTP-03  1″ 650 – 4 377 38 169 206 74 3,4
MXTP-05  1 1/2″ 1 131 – 7 575 47 204 235 86 8,4
MXTP-10  1 1/2″ 2 478 – 15 610 60 255 297 110 11,3

Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

MXTP-3 [PDF] MXTP-5 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
