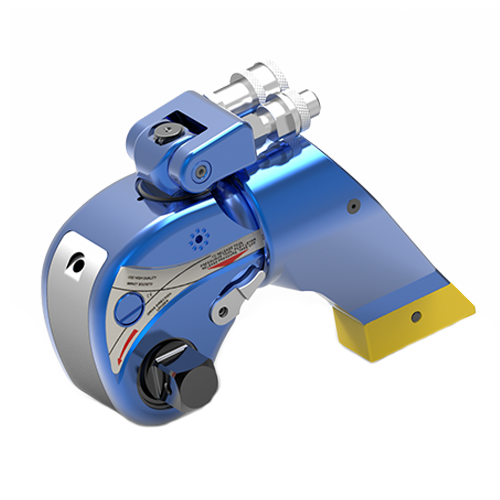

HYTORC

MXT

HYDRAULIC TORQUE WRENCH

HYTORC MXT is the world’s best-selling industrial bolting system with over one hundred thousand in use around the world. Since 1990, the signature blue housing has represented quality, durability, and reliability on job sites in every major industry. From the tallest roller coasters to the world’s largest bridges, the MXT has the power to get the job done.

  • 360° turning reaction fixture is attached to the rear of the wrench
  • 360° x 180° uni-swivel for easy setup of tool and hoses in very cramped places
  • Manufactured for production and maintenance industries
  • Wide range of reaction fixtures
  • Supplied with a calibration certificate
  • Supplied with a carry handle (on HY-1MXT and larger models)
  • Supplied with a robust heavy-duty case
Category:

Description



MXT

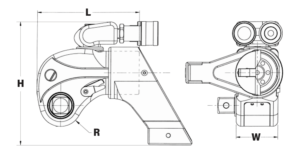

ITEM Drive Torque Range (Nm) R (mm) L (mm) H (mm) W (mm) Weight (kg)
HY-.7MXT  3/4″ 167 – 1 114 21 101 108 41 1,2
HY-1MXT  3/4″ 273 – 1 817 25 124 124 50 1,8
HY-3MXT  1″ 657 – 4 379 33 161 155 67 3,8
HY-5MXT  1 1/2″ 1 137 – 7 578 40 193 183 80 6,5
HY-10MXT  1 1/2″ 2 343 – 15 617 50 242 223 100 11,3
HY-15MXT  2 1/2″ 3 238 – 21 584 55 268 246 111 16,4
HY-20MXT  2 1/2″ 4 018 – 26 787 60 290 260 120 19,7
HY-35MXT  2 1/2″ 7 544 – 50 293 74 356 315 148 35,2
HY-.5XLT* 1/2″ 81 – 538 16,5 76,2 108 33,6 0,9
HY-8XLT* 1 1/2″ 1 627 – 10 846 44,7 195,6 215,9 90,7 11,4
HY-25XLT* 2 1/2″ 5 265 – 35 102 66,1 299,7 292,1 133,4 31,2

*) Models from the previous series.

Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

MXT-.7 [PDF] MXT-1 [PDF] MXT-3 [PDF] MXT-5 [PDF] MXT-10 [PDF] MXT-15 [PDF] MXT-20 [PDF] MXT-35 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
