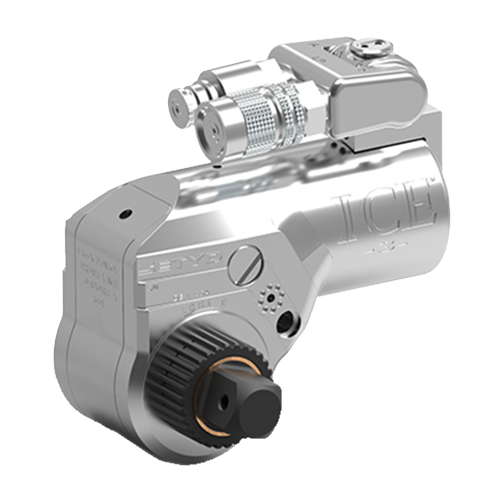

HYTORC

ICE

HYDRAULIC TORQUE WRENCH

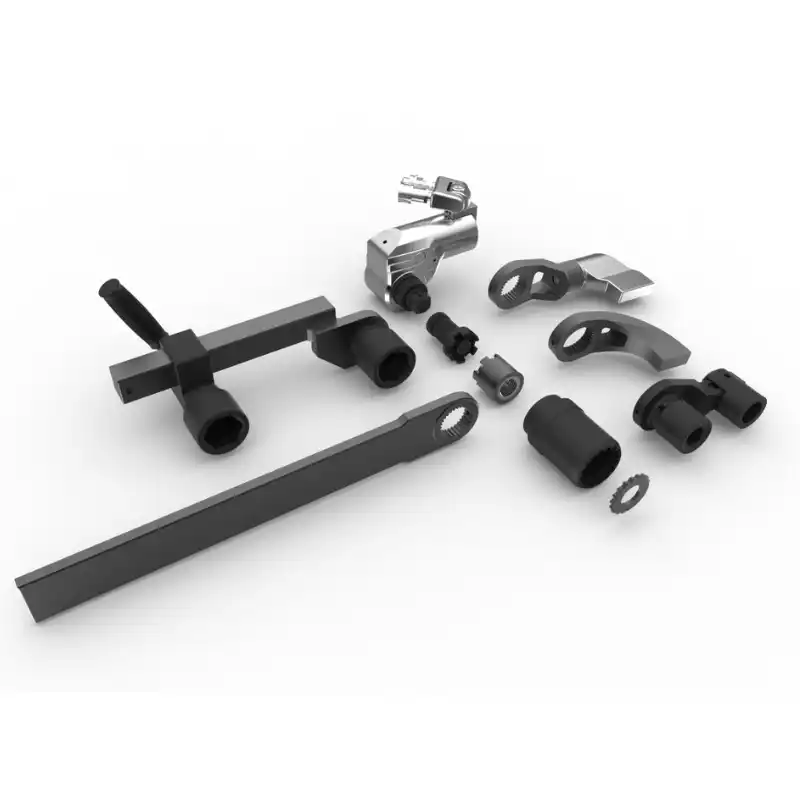

In HYTORC ICE the drive cylinder and the reaction arm turn independently of each other around the bolt axis. This design means that there is no internal torsion in the tool, which improves its durability and reliability. The HYTORC ICE is equipped with inter-changeable, interacting, coaxial driving and holding sockets for a 360 degree tool fit, and an automatic secondary pawl release, making it work without the need of an external lever. Inline reaction reduces side load and increases tool durability.

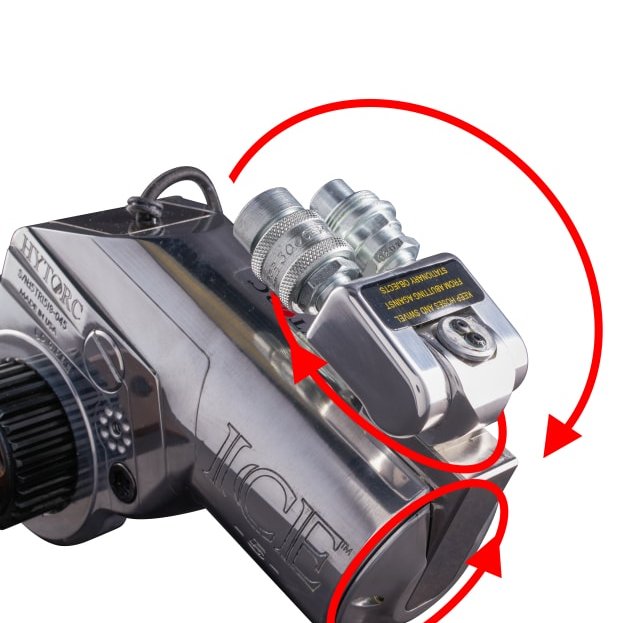

  • 360° x 360° x 180° uni-swivel for easy setup of tool and hoses in very cramped places
  • Automatic secondary pawl release – no need of an external lever
  • Manufactured for production and maintenance industries
  • Large torque range of 159 – 7 263 Nm
  • Fully compatible with the HYTORC Washers, J-Washers and NUT
  • Supplied with a calibration certificate

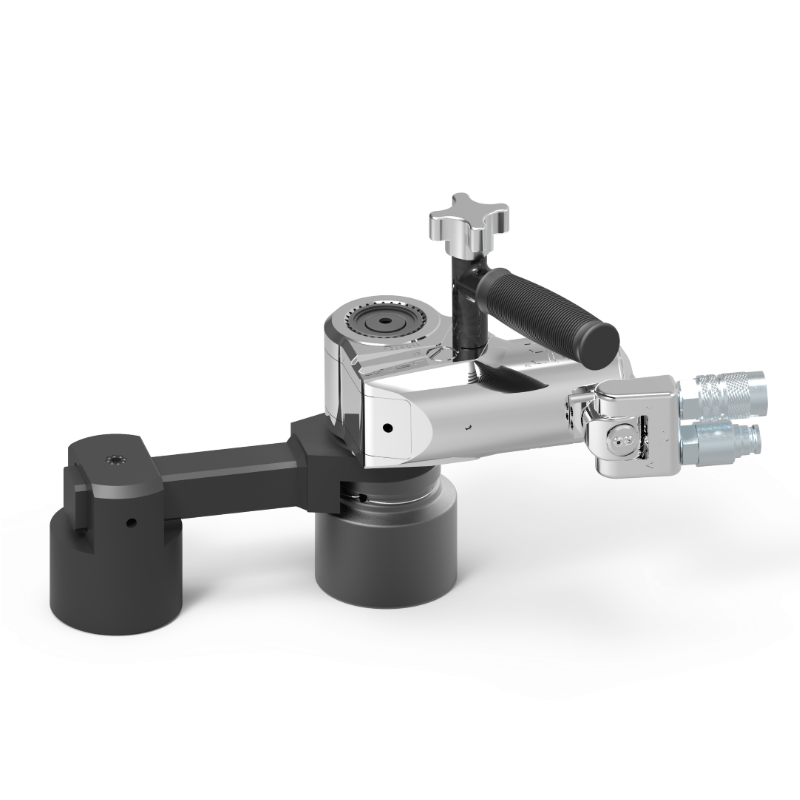

  • Supplied with a carry handle (not ICE-.7)
  • Supplied with a robust heavy-duty case



More from HYTORC >>

Category:

Description





ICE

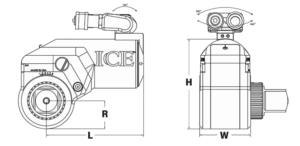

Item Drive Torque Range (Nm) R (mm) L (mm) H (mm) W (mm) Weight (kg)
ICE-.7  3/4” 159 – 1 092 25 95 117 47 2,1
ICE-1  3/4” 266 – 1 740 29 113 131 55 2,7
ICE-3  1” 623 – 4 179 39 140 167 74 4,6
ICE-5  1 1/2” 1 089 – 7 263 46 164 194 86 8,2

Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

ICE-.7 [PDF] ICE-1 [PDF] ICE-3 [PDF] ICE-5 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
