HYTORC

jGun Digital

PNEUMATIC TORQUE WRENCH

Digital jGun series is the world’s first torque-adjustable pneumatic multiplier with a digital readout and FRL-free operation. Unlike other systems that require a separate filter, regulator and lubrication system between the air line and the tool, the patented design of the digital jGun eliminates the need for this add-on for the highest level of portability and convenience.

  • Wide torque range of 80–10700 Nm
  • Digital readout for instant confirmation of selected torque
  • No more pressure-to-torque conversions or calculations
  • No impacts and therefore vibration-free and low noise
  • Built-in usage counter to estimate the need of maintenance
  • Unprecedented performance for its weight and size

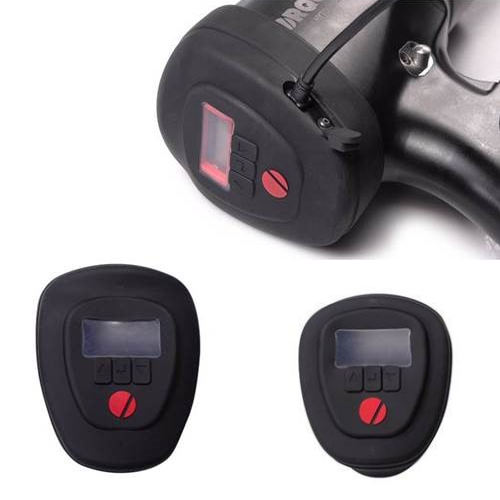

  • Possible to equip with a weather cover which protects the display during use in the field no matter the conditions
  • Compatible with HYTORC Washers, J-Washers and NUT fastening elements for maximum bolt load accuracy

Description



HYTORC jGun Digital

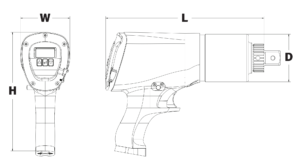

ITEM Torque Range (Nm) Drive H (mm) D (mm) L (mm) W (mm) Weight (kg) Free Speed (rpm)
JGUN-D.25 81 – 339 3/4″ 200 64 201 80 3,8 65
JGUN-D.5 251 – 678 3/4″ 200 66 227 80 4 24
JGUN-D1 475 – 1 593 3/4″ 200 66 247 80 4,5 6,5
JGUN-D2 780 – 2 834 1″ 214 83 302 86 7,5 5,5
JGUN-D3 1 160 – 4 310 1″ 214 83 319 86 8 5
JGUN-D5 1 891 – 6 847 1 1/2″ 221 105 357 86 12,9 2,5
JGUN-D6.5 3 118 – 8 814 1 1/2″ 219 101 370 86 10 2,4
JGUN-D8 3 118 – 10 711 1 1/2″ 227 116 384 86 17,5 1,5



Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Product Sheet

Product Sheet (in Finnish) [PDF]
