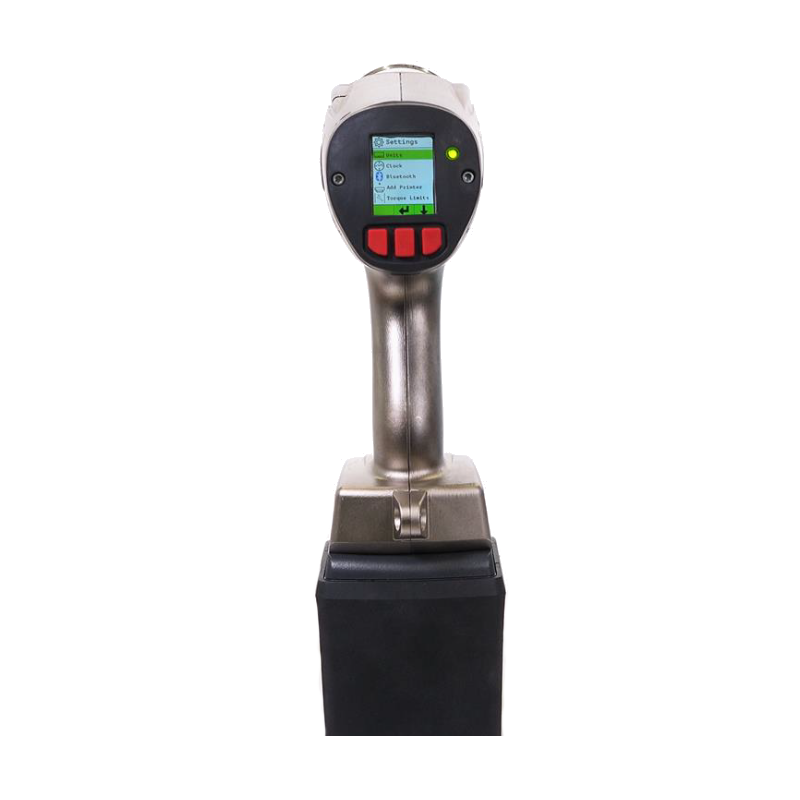

The LITHIUM SERIES II Electric Torque Tool is the next revolution in bolting technology redesigned from the ground up with expanded functionality, greater durability, and intuitive usability. This lightweight 36 volt battery powered tool, with capacity up to 5,000 ft-lbs, is the ultimate solution for strength and portability in industrial bolting jobs worldwide. The LITHIUM SERIES II Tool incorporates TorcSense™ Technology which directly measures torque providing more repeatable results. All new features such as the sliding directional switch, snug function, user access levels, advanced bolting, and more further extend the versatility of the tool.
More from HYTORC >>
| Lithium II | |||||||||
| Item | Torque Range (Nm) | Pre-Tightening min. (Nm) | Drive | H (mm) | L (mm) | W (mm) | D (mm) | Free Speed (rpm) | Weight (kg) |
| LST-0250 | 68 – 339 | 17 | 1/2″ | 328 | 254 | 89 | 66 | 180 | 3,9 |
| LST-0700 | 203 – 949 | 47 | 3/4″ | 328 | 290 | 89 | 66 | 61 | 5,3 |
| LST-1200 | 271 – 1 627 | 81 | 3/4″ | 328 | 297 | 89 | 66 | 40 | 5,5 |
| LST-2000 | 440 – 2 712 | 135 | 1″ | 335 | 353 | 89 | 81 | 17 | 7,5 |
| LST-3000 | 677 – 4 067 | 203 | 1″ | 338 | 366 | 89 | 86 | 11 | 8 |
| LST-5000 | 1 085 – 6 779 | 270 | 1 1/2″ | 422 | 391 | 102 | 102 | 7 | 10,2 |
