HYTORC

STEALTH

HYDRAULIC TORQUE WRENCH

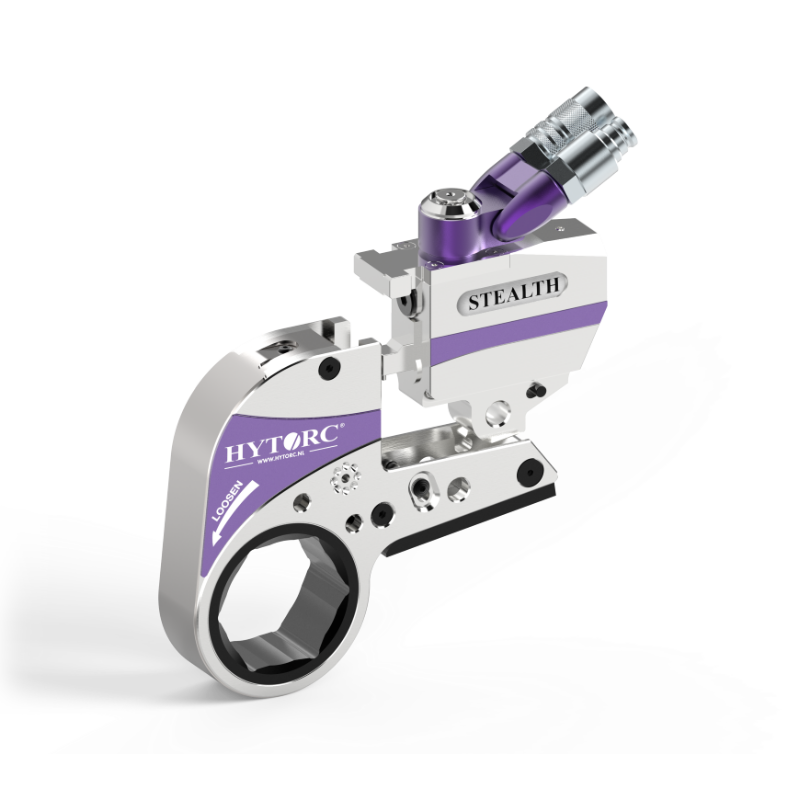

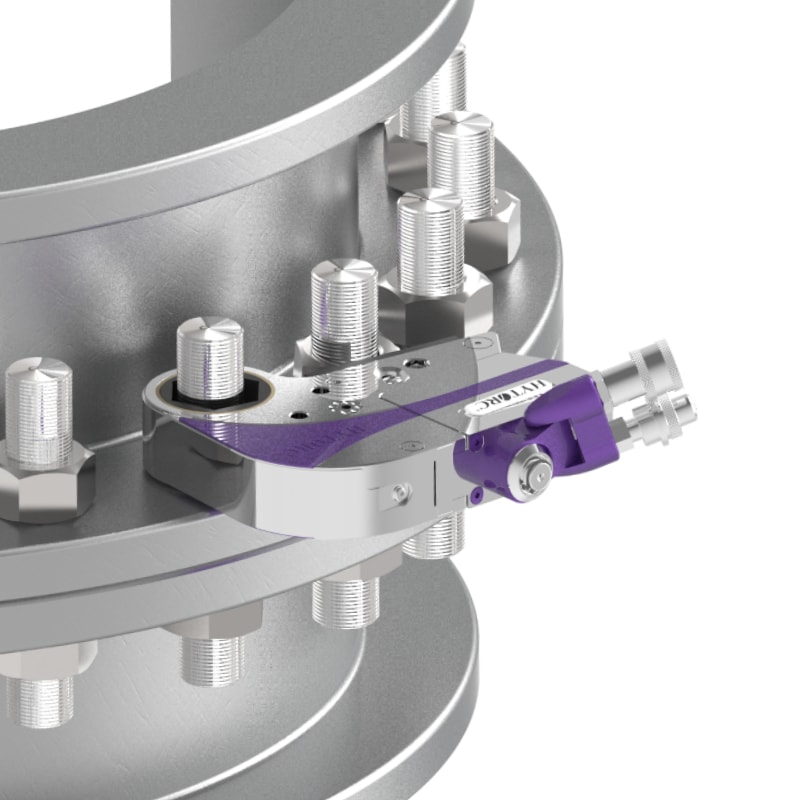

The new piston design of the HYTORC STEALTH makes the housing of the drive cylinder only as thick as the ratchet link. Just place the desired ratchet link and the STEALTH is ready to be used in applications with limited free space above the nut or on long protruding thread ends. The patented dual piston system provides for higher speed during the running of the nut on or off. The reaction pawl gives a higher effective rotational speed and rotation through exactly the same angle on each stroke. The light-weight and user friendly design makes the HYTORC STEALTH very safe tool to use.

  • Compatible with the HYTORC Washers, J-Washers (holding plate required)
  • 360° turning reaction fixture is attached to the rear of the wrench
  • 360° x 180° uni-swivel for easy setup of tool and hoses

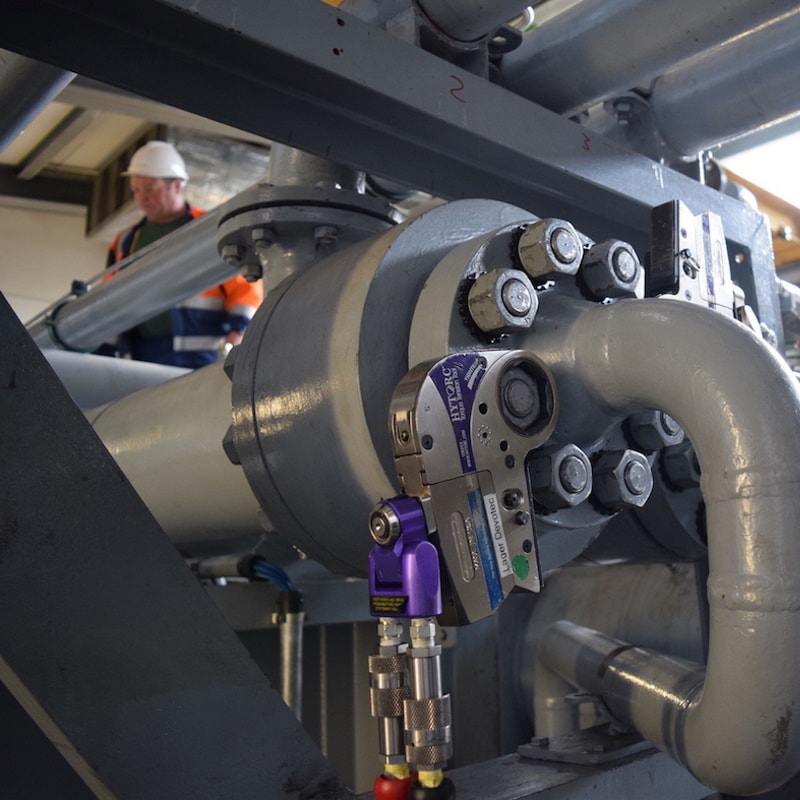

  • Manufactured for production and maintenance industries

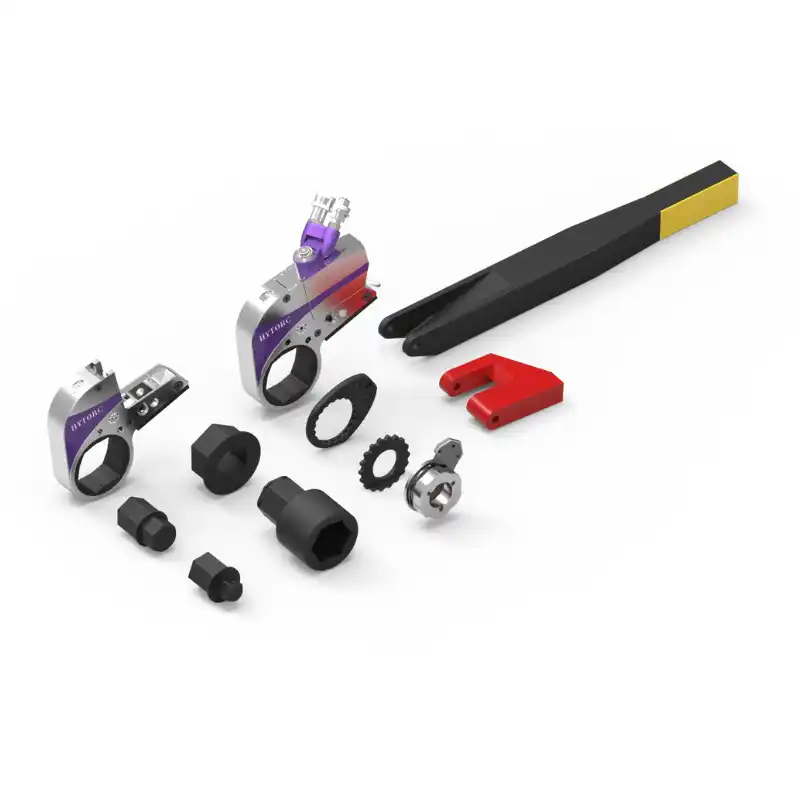

  • Wide range of reaction fixtures
  • Secure click-in hex links without pins or screws
  • Supplied with a calibration certificate
  • Supplied with a carry handle
  • Supplied with a robust heavy-duty case
Category:

Description



STEALTH
ITEM Hex Size (mm) Torque Range (Nm) R (mm) L (mm) H (mm) W (mm) Weight (kg)
STEALTH-2  19 – 65 377 – 2 534 26 – 45 140 107 32 2,4
STEALTH-4  27 – 85 819 – 5 450 34 – 59 167 138 42 5,3
STEALTH-8  32 – 105 1 625 – 10 823 45 – 73 203 163 55 9,3
STEALTH-14  55 – 145 2 854 – 19 324  59 – 88 237 202 64 16,6
STEALTH-22  70 – 155 4 406 – 29 654  66 – 98 274 233 74 19,5
STEALTH-36  90 – 175 6 665 – 47 069  78 – 122 323 275 87 31,3



Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

STEALTH-2 [PDF] STEALTH-4 [PDF] STEALTH-8 [PDF] STEALTH-14 [PDF] STEALTH-22 [PDF] STEALTH-36 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
