HYTORC

XLCT

HYDRAULIC TORQUE WRENCH

The XLCT is one of the world’s best-selling limited clearance industrial bolting system with over one hundred thousand in use around the world. Since 1992, the signature red housing has represented quality, durability, and reliability on job sites in every major industry. From the tallest roller coasters to the world’s largest bridges, the XLCT has the power to get the job done.

  • 360° x 270° uni-swivel for easy setup of tool and hoses
  • Torque range reaches even 80 000 newton-metres
  • Wide range of accessories
  • Supplied with a calibration certificate
  • Supplied with a carry handle (not in HY-2XLCT)
  • Supplied with a robust heavy-duty case



More from HYTORC >>

Category:

Description





XLCT

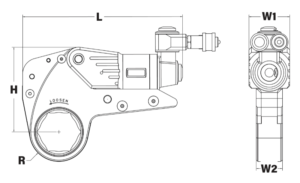

Item Drive Torque Range (Nm) R min. (mm) R max. (mm) L (mm) H (mm) W1 (mm) W2 (mm) Weight (kg)
HY-2XLCT 19 – 65 329 – 2 286 26 45 186 102 49 32 0,9
HY-4XLCT 36 – 80 786 – 5 224 34 59 259 136 66 42 1,9
HY-8XLCT 50 – 100 1 549 – 11 045 45 73 312 170 82 53 3,3
HY-14XLCT 70 – 120 2 724 – 18 157 59 88 371 204 99 64 5,1
HY-18XLCT 75 – 145 3 780 – 25 881 67 98 364 231 111 72 6,8
HY-30XLCT 90 – 155 6 205 – 41 986 78 122 427 272 131 85 10,8
HY-45XLCT 100 – 190 9 667 – 66 679 103 124 536 340 152 100 19,5
HY-60XLCT 120 – 190 12 022 – 80 143 122 128 526 340 164 106 21,8



Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

XLCT-2 [PDF] XLCT-4 [PDF] XLCT-8 [PDF] XLCT-14 [PDF] XLCT-18 [PDF] XLCT-30 [PDF] XLCT-45 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
