VERSA

HYDRAULIC TORQUE WRENCH

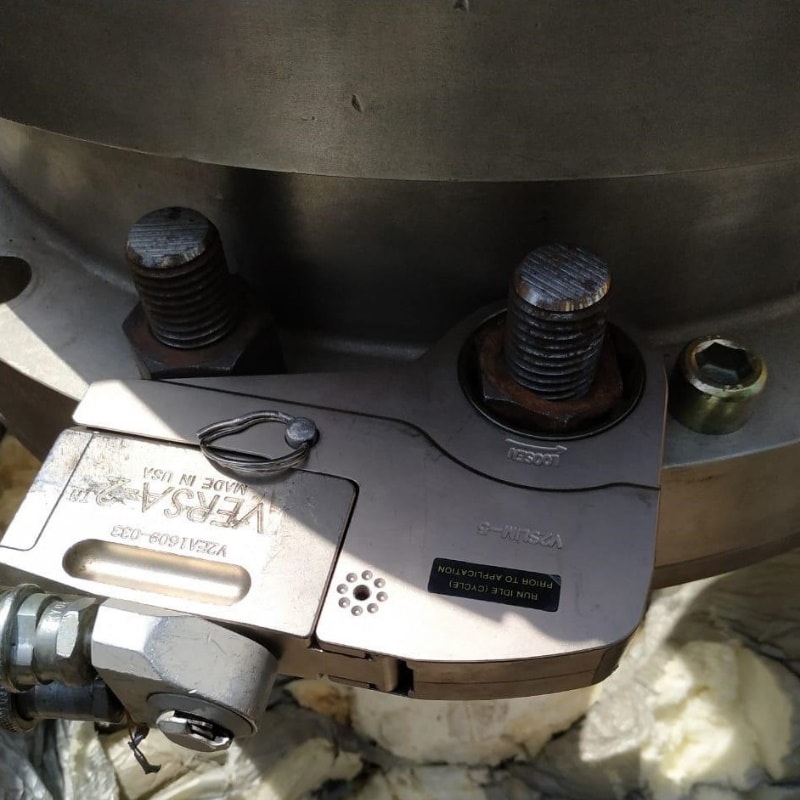

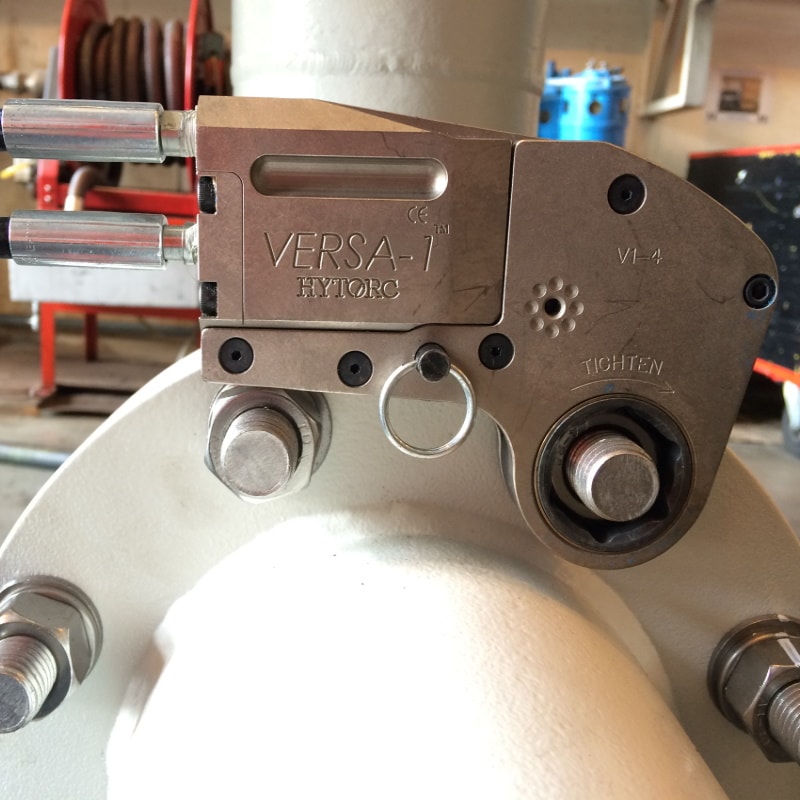

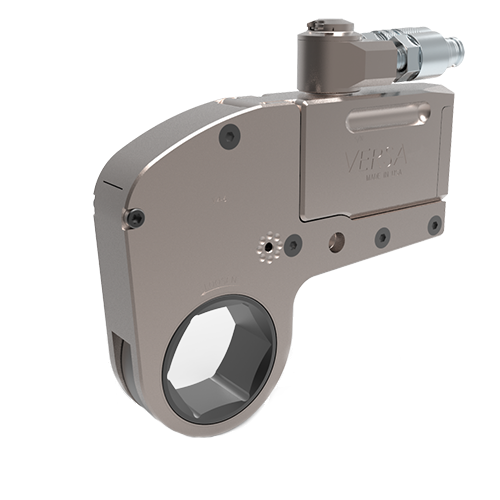

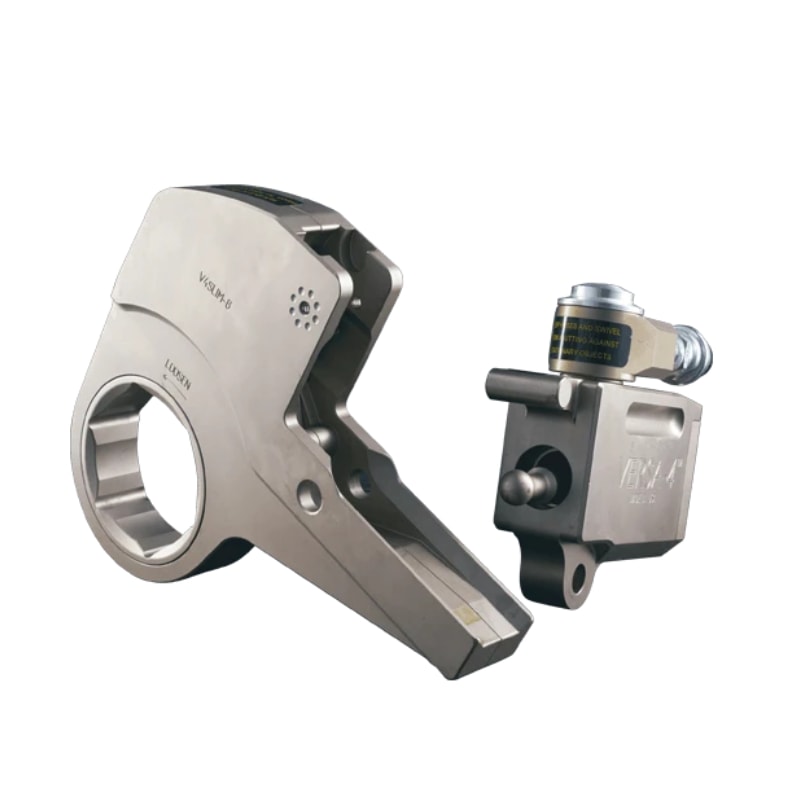

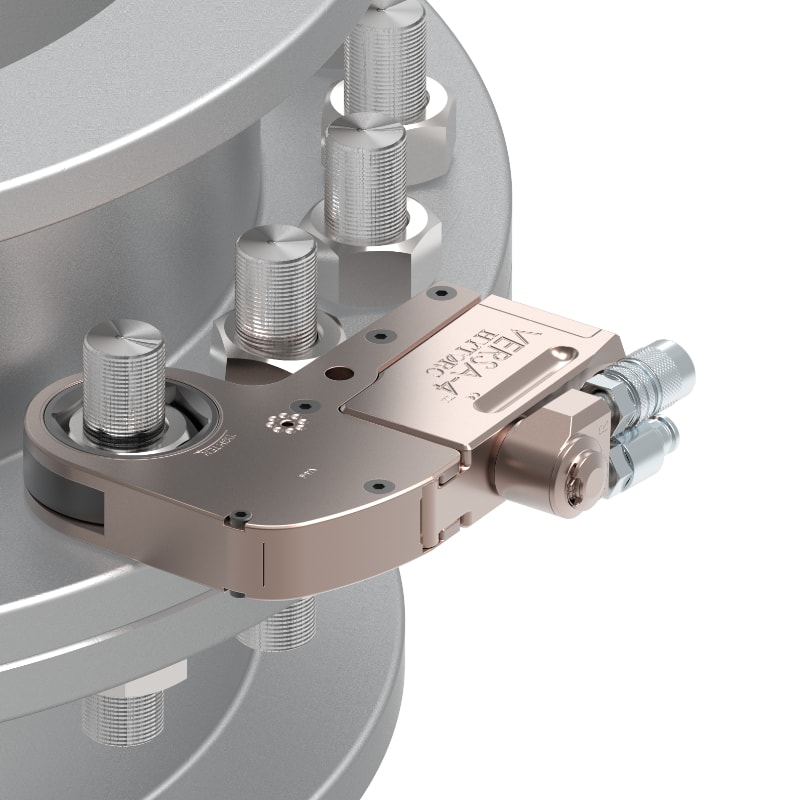

The narrow radius of the HYTORC VERSA ratchet link does not require much space, whereby the long neck can also reach deep-lying nuts. It is built to withstand the rigors of daily use in both heavy industry and maintenance. The three-moving part design of the VERSA series reduces the number of potential repairs and keeps operating costs to a minimum. Ratchet links are swapped using pins, without any auxiliary equipment.

Compatible with the HYTORC Washers, J-Washers and HYTORC Nut (holding plate required)
Manufactured for both heavy industry and maintenance.
The whole tool is as slim as the ratchet link
Bolt and tool piston aligned – no additional side forces
Uni-swivel technology for free movement and positioning of tool and hoses
Versatile for use with hex, 12-point, castle-nut sockets, etc
Safe, no hand-held support required
Supplied with a calibration certificate
Supplied with a carry handle
Supplied with a robust heavy-duty case

Description

VERSA
ITEM	Hex Size (mm)	Torque Range (Nm)	R (mm)	L (mm)	H (mm)	W (mm)	Weight (kg)
VERSA-1	17 – 46	190 – 1 356	8	107	87	27	1,4
VERSA-2	24 – 60	354 – 2 603	10	135	95	32	1,5
VERSA-4	36 – 80	887 – 6 104	13	180	140	42	3,3
VERSA-8	50 – 95	1 830 – 12 200	18	218	166	53	5,4
VERSA-14	70 – 120	1 975 – 20 352	19	267	204	64	8,8
VERSA-20	70 – 130	4 345 – 29 979	23	278	225	76	11,4
VERSA-30	85 – 165	7 313 – 49 862	25	353	278	95	21,7

Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
