HYTORC

AVANTI

HYDRAULIC TORQUE WRENCH

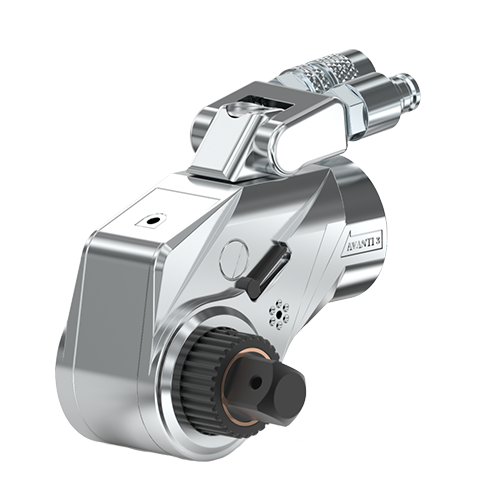

HYTORC AVANTI is the lightest torque wrench for heavy-duty usage. The drive cylinder and the reaction arm turn independently of each other around the bolt axis, which means there is no internal torsion in the tool, improving the already well-known durability and reliability of the AVANTI even further. This inline reaction design combined with the smallest space requirements of any hydraulic square drive torque wrench makes the HYTORC AVANTI extremely safe and easy to use.

  • Inline reaction reduces side load and increases tool durability
  • 360 x 180° uni-swivel technology for free movement and positioning of tool and hoses
  • Compatible with the HYTORC Washers, J-Washers and NUT
  • Manufactured for production and maintenance industries
  • Large torque range of 155 – 190 000 Nm
  • Supplied with a calibration certificate
  • Supplied with a carry handle (not AVANTI-.7)
  • Supplied with a robust heavy-duty case
Category:

Description



AVANTI
ITEM Drive Torque Range (Nm) R (mm) L (mm) H (mm) W (mm) Weight (kg)
AVANTI-.7  3/4” 156 – 1 040 25 105 106 45 1,4
AVANTI-1  3/4″ 261 – 1 741 29 120 121 55 2
AVANTI-3  1″ 623 – 4 179 39 156 157 74 4,3
AVANTI-5  1 1/2″ 1 090 – 7 263 46 187 181 86 7,1
AVANTI-8  1 1/2″ 1 558 – 10 515 49 209 201 98 9,4
AVANTI-10  1 1/2″ 2 439 – 15 912 57 234 225 110 13,3
AVANTI-20  2 1/2″ 3 742 – 24 241 66 278 260 129 21,7
AVANTI-35  2 1/2″ 6 646 – 43 130 81 342 310 158 37,6
AVANTI-50  2 1/2″ 9 759 – 62 501 100 395 353 179 57,1
AVANTI-80  3 1/2″ 16 213 – 116 118 119 496 428 190 127,5
AVANTI-130  3 1/2″ 26 280 – 187 683 135 577 493 216 265,9



Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Torque Charts

AVANTI-.7 [PDF] AVANTI-1 [PDF] AVANTI-3 [PDF] AVANTI-5 [PDF] AVANTI-8 [PDF] AVANTI-10 [PDF] AVANTI-20 [PDF] AVANTI-35 [PDF] AVANTI-50 [PDF] AVANTI-130 [PDF]

Product Sheet

Product Sheet (in Finnish) [PDF]
