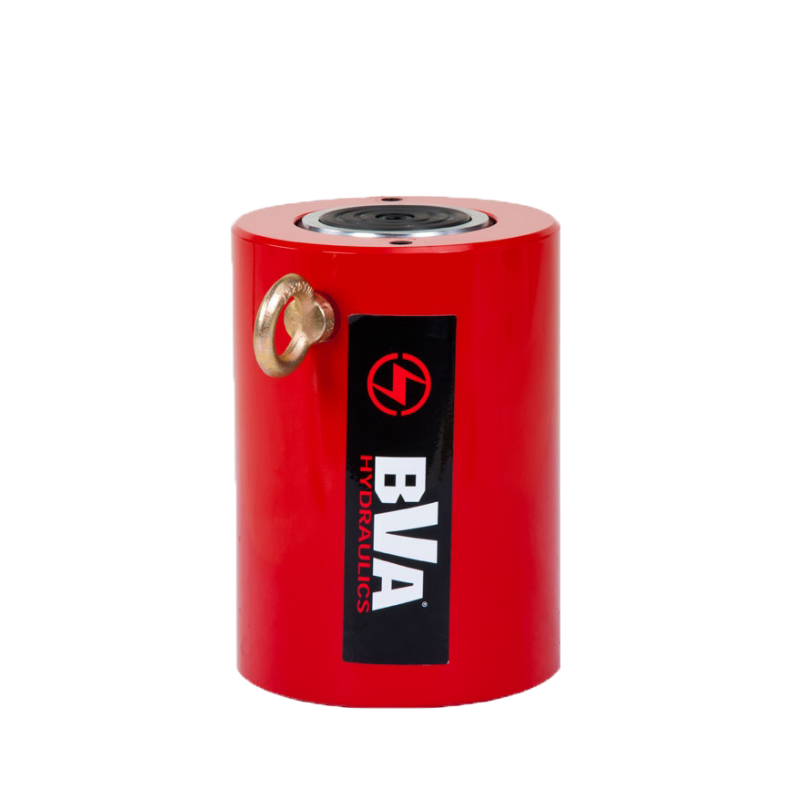

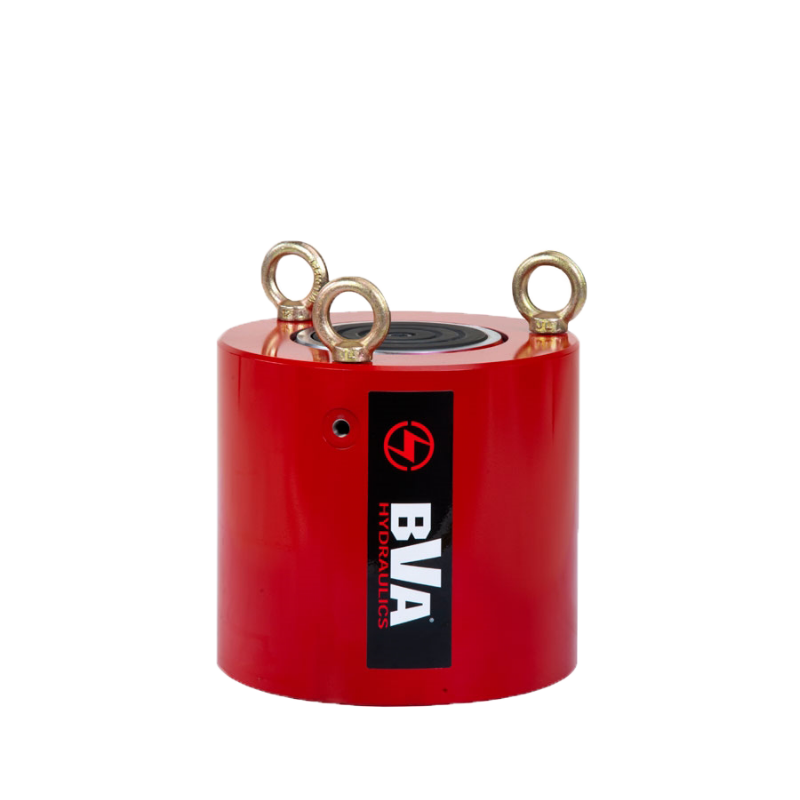

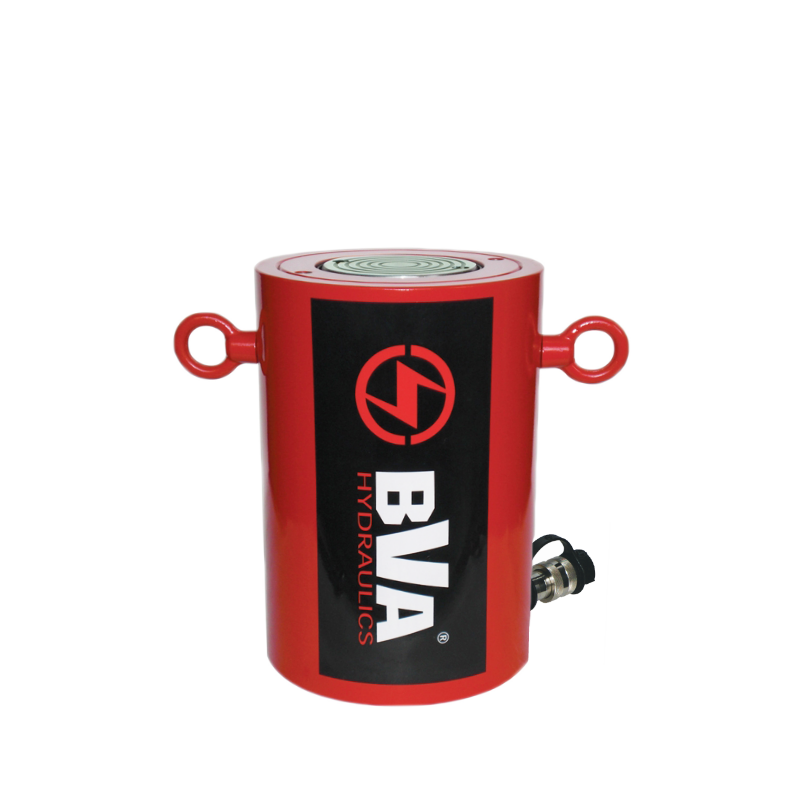

Single Acting High Tonnage Cylinders

HG SERIES

Steel-framed high tonnage hydraulic cylinders are great solutions for applications demanding high-lift power. The basic range covers cylinders in the push capacity range from 100 to 1000 tn, in addition to which cylinders are available on special order up to 1500 tons.

  • Heavy duty return spring for quicker retraction
  • Solid steel cylinder body
  • High flow ball coupler and dust cap included
  • Handles included in all models
  • Maximum working pressure is 700 bar



Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 95 tn

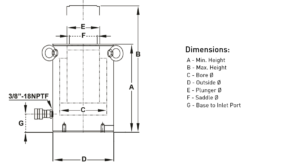

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG10002 50 182 232 130 165 95 75 54 664 132,7 28
HG10004 100 232 332 130 165 95 75 54 1 327 132,7 34
HG10006 150 282 432 130 165 95 75 54 1 991 132,7 40
HG10008 200 332 532 130 165 95 75 54 2 655 132,7 45
HG10010 250 382 632 130 165 95 75 54 3 318 132,7 52
HG10012 300 432 732 130 165 95 75 54 3 982 132,7 58
Push capacity 150 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG15002 50 196 246 158 205 110 94 61 981 196,3 46
HG15004 100 246 346 158 205 110 94 61 1 963 196,3 55
HG15006 150 296 446 158 205 110 94 61 2 978 196,3 64
HG15008 200 346 546 158 205 110 94 61 3 926 196,3 74
HG15010 250 396 646 158 205 110 94 61 4 907 196,3 82
HG15012 300 446 746 158 205 110 94 61 5 889 196,3 92
Push capacity 200 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG20002 50 216 266 183 235 135 113 67 1 322 264,4 55
HG20006 150 316 466 183 235 135 113 67 3 989 264,4 91
HG20008 200 366 566 183 235 135 113 67 5 289 264,4 110
HG20012 300 466 766 183 235 135 113 67 7 977 264,4 146
Push capacity 300 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG30002 50 312 362 241 310 197 177 101 2 281 456,2 184
HG30006 150 412 562 241 310 197 177 101 6 843 456,2 232
HG30012 300 562 862 241 310 197 177 101 13 685 456,2 303
Push capacity 400 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG40002 50 374 424 267 350 216 196 114 2 800 559,9 270
HG40006 150 474 624 267 350 216 196 114 8 399 559,9 330
HG40012 300 625 925 267 350 216 196 114 17 077 559,9 421
Push capacity 500 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG50002 50 419 469 305 400 248 228 114 3 653 730,6 401
HG50006 150 519 669 305 400 248 228 114 10 959 730,6 480
HG50012 300 669 969 305 400 248 228 114 21 919 730,6 599
Push capacity 600 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG60002 50 429 479 330 430 267 247 114 4 277 855,3 474
HG60006 150 529 679 330 430 267 247 114 12 829 855,3 565
HG60010 250 629 879 330 430 267 247 114 21 383 855,3 656
HG60012 300 679 979 330 430 267 247 114 25 662 855,3 701
Push capacity 800 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG80002 50 474 524 387 505 317 297 149 5 881 1 176,3 741
HG80006 150 574 724 387 505 317 297 149 17 649 1 176,3 868
HG80012 300 724 1024 387 505 317 297 149 35 281 1 176,3 1 058
Push capacity 1 000 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HG100002 50 564 614 432 560 343 323 174 7 329 1 465,7 1 062
HG100006 150 664 814 432 560 343 323 174 21 991 1 465,7 1 213
HG100012 300 814 1114 432 560 343 323 174 43 966 1 465,7 1 439
