BVA Hydraulics

Electric Pumps

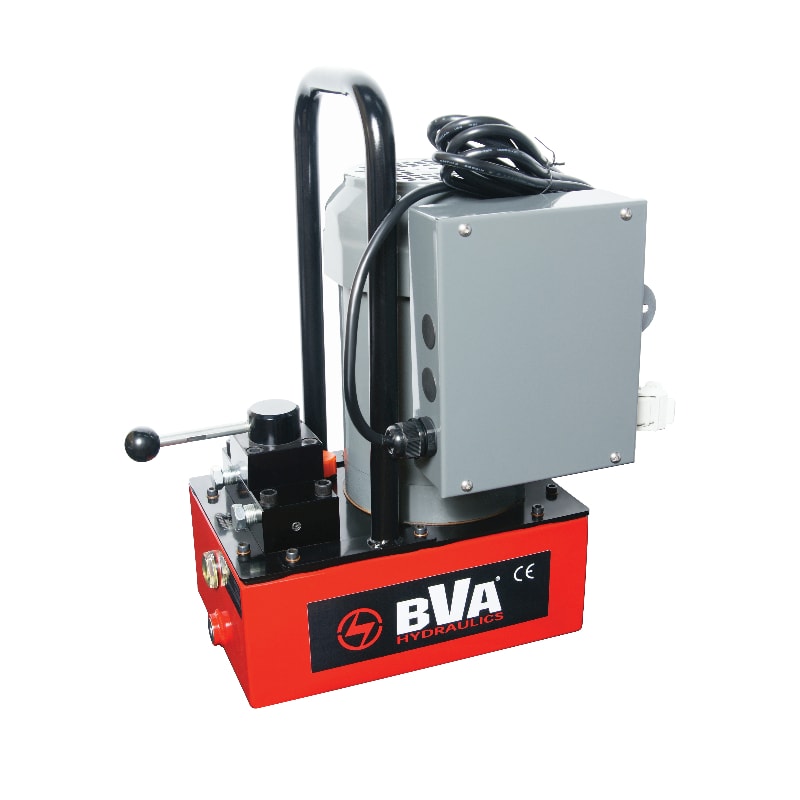

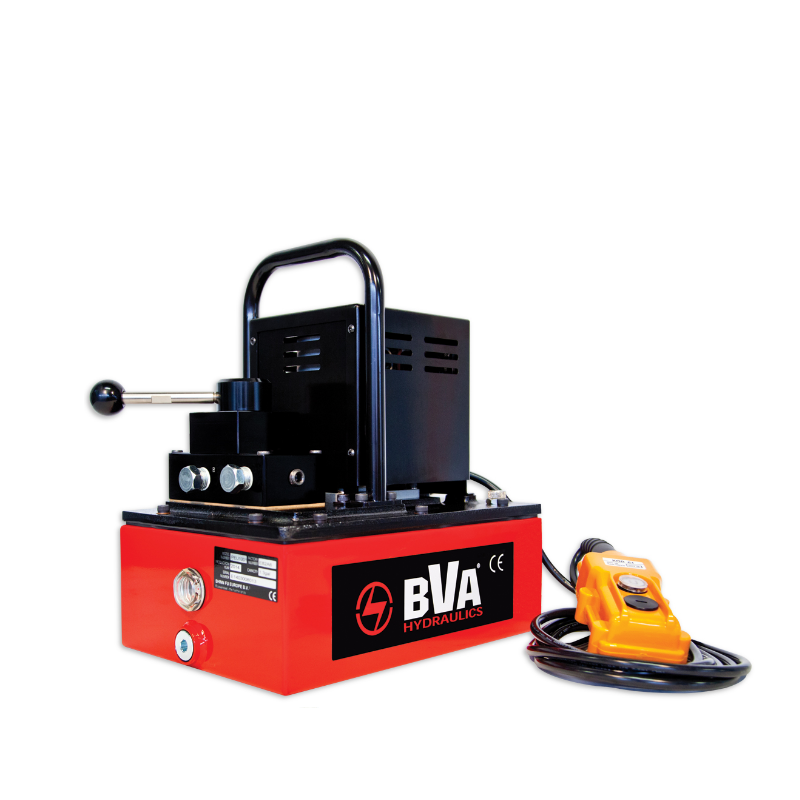

Electric pump units are ideal options especially for the demanding conditions of construction sites and factories. Thanks to the robust construction and high-quality components, the pump units have an excellent wear resistance and are maintenance-free. Electric pump units for double-acting cylinders are also available as models with a solenoid valve and remote control.

  • Quiet operation meets OSHA regulations (80dBA)
  • 2 Speed operation
  • Full load starting capacities
  • Available in 3-way or 4-way configuration
  • 65 meter hand-held remote control as standard
Category:

Description



230V pumps
Item Power (kW) Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Oil Outlet Port Current Draw (amp) Weight (kg)
PU20M4N01C 0,7 3,8 2 0,4 323 262 485 119 145 305 206 315 3/8”-18NPTF 5 17,0
PE30M4N01D 0,37 3,8 4,2 0,22 323 262 485 119 145 305 206 315 3/8”-18NPTF 4,5 28,5
PE40M4N02D 0,75 7,6 4,2 0,46 424 305 455 152 175 335 114 315 3/8”-18NPTF 6 33,0
PE50M4N03D 1,12 11,4 5,1 0,69 424 305 500 183 208 267 114 315 3/8”-18NPTF 8,5 41,5
PE50M4N03D 2,24 19,4 6,3 1,22 424 305 630 312 335 394 114 315 3/8”-18NPTF 17 47,0
PE60M4N15D 2,24 56 6,3 1,22 531 419 879 561 587 645 211 419 3/8”-18NPTF 17 76,0
380V pumps
Item Power (kW) Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Oil Outlet Port Current Draw (amp) Weight (kg)
PE60M4N06W 2,24 22,7 6,3 1,33 524 376 583 224 247 307 436 3/8”-18NPTF 4,5 62,0
PEW03 Remote Control
230V pumps with solenoid valve (only for double acting cylinders)
Item Power (kW) Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Oil Outlet Port Current Draw (amp) Weight (kg)
PE30S4N01D 0,37 3,8 3,9 0,25 323 262 485 119 145 305 206 315 3/8”-18NPTF 4,5 33,5
PE40S4N02D 0,75 7,6 4,2 0,49 424 305 455 152 175 335 114 315 3/8”-18NPTF 6 38,5
PE50S4N03D 1,12 11,4 6,3 0,82 424 305 500 183 208 267 114 315 3/8”-18NPTF 8,5 46,6
PE60S4N05D 2,24 18,9 7,1 1,48 424 305 630 312 335 394 114 315 3/8”-18NPTF 17 52,5

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet (in Finnish) [PDF]
