Double Acting High Tonnage Cylinders

HDG SERIES

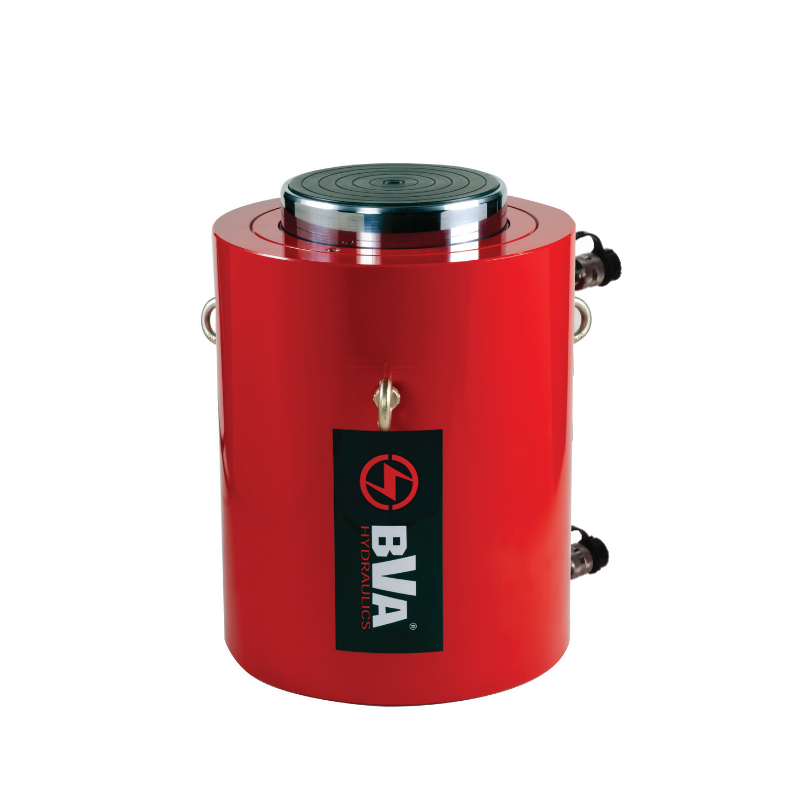

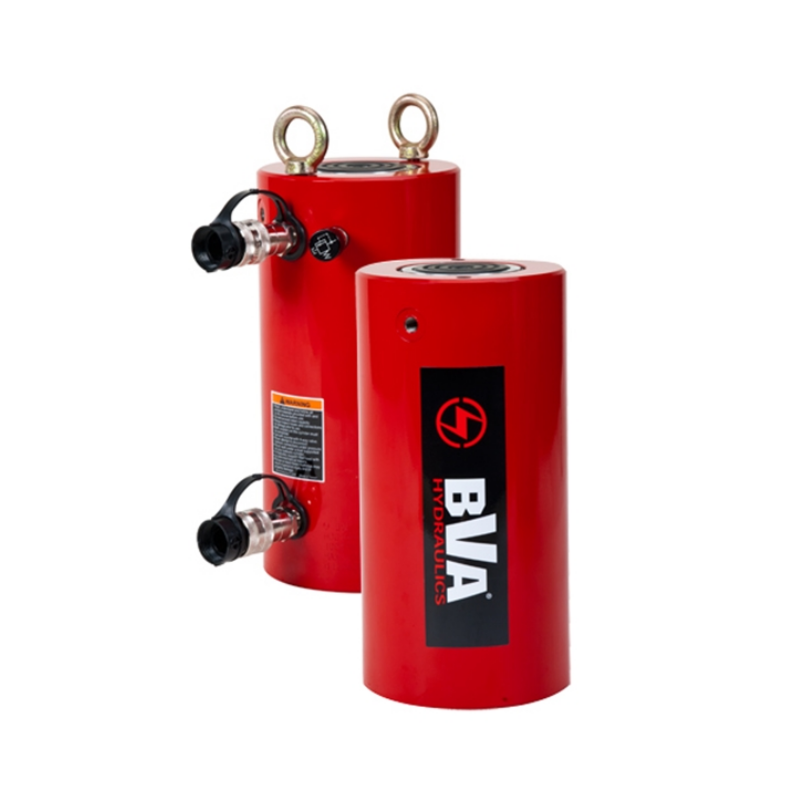

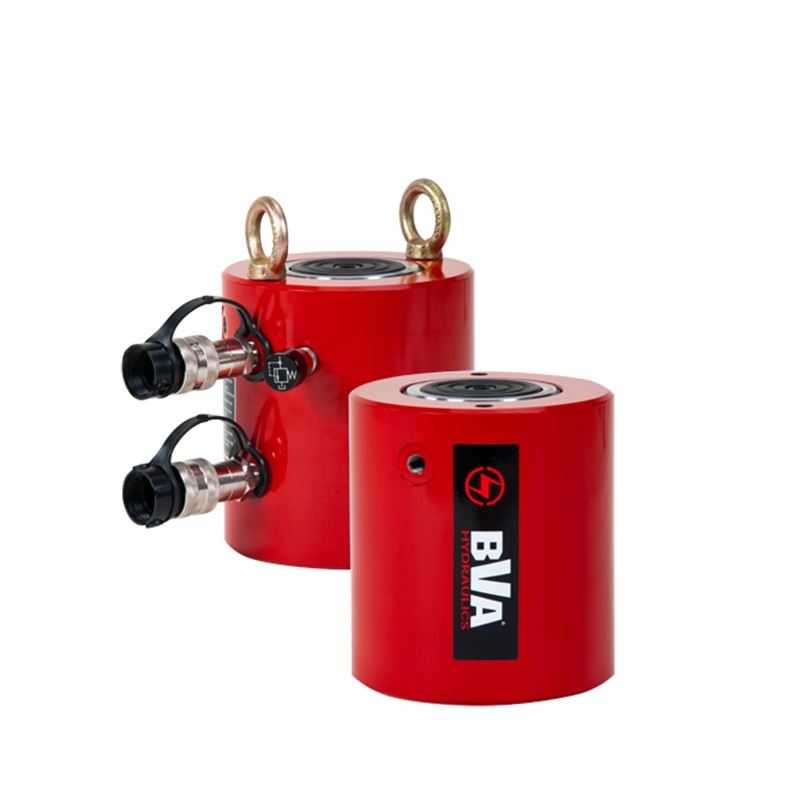

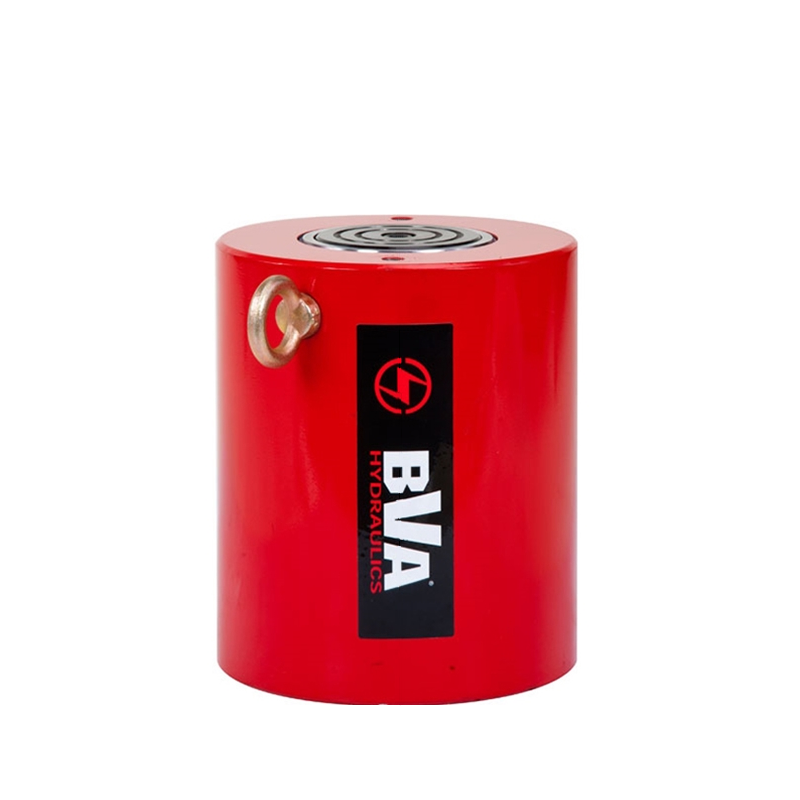

Every detail of BVA’s high tonnage double acting hydraulic cylinders is designed to meet the demands of heavy loads. The wide range covers cylinders in the pushing range of 95–1000 ton and pull range of 40–370 tn. The large power ranges make the cylinders an ideal tool for extremely heavy pushing and pulling work.

  • Cylinders are burnish rolled for a smooth precision mirror finish
  • Industrial hard chrome plated ram prevents scratching and corrosion
  • Base mounting holes standard on all models
  • Rod wiper seals out dirt and contamination
  • High strength steel construction from gun drilled solid bar
  • High flow 3/8”-18NPTF  ball couplers with dust caps included
  • Maximum working pressure 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 95 tn, pull capacity 44 tn

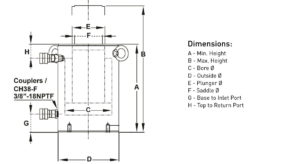

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG10002 50 182 232 130 165 95 75 54 48 664 309 132,7 61,9 28
HDG10004 100 232 332 130 165 95 75 54 48 1 327 618 132,7 61,9 34
HDG10006 150 282 432 130 165 95 75 54 48 1 991 928 132,7 61,9 40
HDG10008 200 332 532 130 165 95 75 54 48 2 655 1 237 132,7 61,9 46
HDG10010 250 382 632 130 165 95 75 54 48 3 318 1 546 132,7 61,9 52
HDG10012 300 432 732 130 165 95 75 54 48 3 982 1 856 132,7 61,9 58
Push capacity 150 tn, pull capacity 72 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG15002 50 196 246 158 205 110 94 61 56 981 506 196,3 101,3 47
HDG15004 100 246 346 158 205 110 94 61 56 1 963 1 013 196,3 101,3 56
HDG15006 150 296 446 158 205 110 94 61 56 2 978 1 447 196,3 101,3 64
HDG15008 200 346 546 158 205 110 94 61 56 3 926 2 025 196,3 101,3 74
HDG15010 250 396 646 158 205 110 94 61 56 4 907 2 531 196,3 101,3 82
HDG15012 300 446 746 158 205 110 94 61 56 5 889 3 038 196,3 101,3 92
Push capacity 200 tn, pull capacity 85 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG20002 50 216 266 183 235 135 113 67 56 1 322 606 264,5 121,3 55
HDG20006 150 316 466 183 235 135 113 67 56 3 989 1 905 264,5 121,3 91
HDG20008 200 366 566 183 235 135 113 67 56 5 289 2 426 264,5 121,3 110
HDG20012 300 466 766 183 235 135 113 67 56 7 977 3 809 264,5 121,3 146
Push capacity 300 tn, pull capacity 104 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG30002 50 312 362 241 310 197 177 101 75 2 281 757 456,2 151,4 184
HDG30006 150 412 562 241 310 197 177 101 75 6 843 2 270 456,2 151,4 232
HDG30012 300 562 862 241 310 197 177 101 75 13 685 4 541 456,2 151,4 303
Push capacity 400 tn, pull capacity 135 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG40002 50 374 424 267 350 216 196 114 105 2 800 967 559,9 196,9 270
HDG40006 150 474 625 267 350 216 196 114 105 8 399 2 902 559,9 196,9 330
HDG40012 300 625 925 267 350 216 196 114 105 17 077 6 004 559,9 196,9 421
Push capacity 500 tn, pull capacity 170 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG50002 50 419 469 305 400 248 228 114 135 3 653 1 238 730,7 247,7 401
HDG50006 150 519 669 305 400 248 228 114 135 10 959 3 713 730,7 247,7 480
HDG50012 300 669 969 305 400 248 228 114 135 21 919 7 427 730,7 247,7 599
Push capacity 600 tn, pull capacity 203 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG60002 50 429 479 330 430 267 247 114 135 4 277 1 477 855,3 295,4 474
HDG60006 150 529 679 330 430 267 247 114 135 12 829 4 431 855,3 295,4 565
HDG60010 250 629 879 330 430 267 247 114 135 19 422 6 643 855,3 295,4 430
HDG60012 300 679 979 330 430 267 247 114 135 25 662 8 862 855,3 295,4 701
Push capacity 800 tn, pull capacity 266 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG80002 50 474 524 387 505 317 297 149 135 5 881 1 935 1 176 387,1 741
HDG80006 150 574 724 387 505 317 297 149 135 17 649 5 806 1 176 387,1 868
HDG80012 300 724 1 024 387 505 317 297 149 135 35 281 11 611 1 176 387,1 1 058
Push capacity 1 000 tn, pull capacity 373 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDG100002 50 564 614 432 560 343 323 174 170 7 329 2 709 1 465 541,8 1 062
HDG100006 150 664 814 432 560 343 323 174 170 21 991 8 126 1 465 541,8 1 213
HDG100012 300 814 1 114 432 560 343 323 174 170 43 966 16 252 1 465 541,8 1 439
