Single Acting Lock Nut Cylinders

HLN SERIES

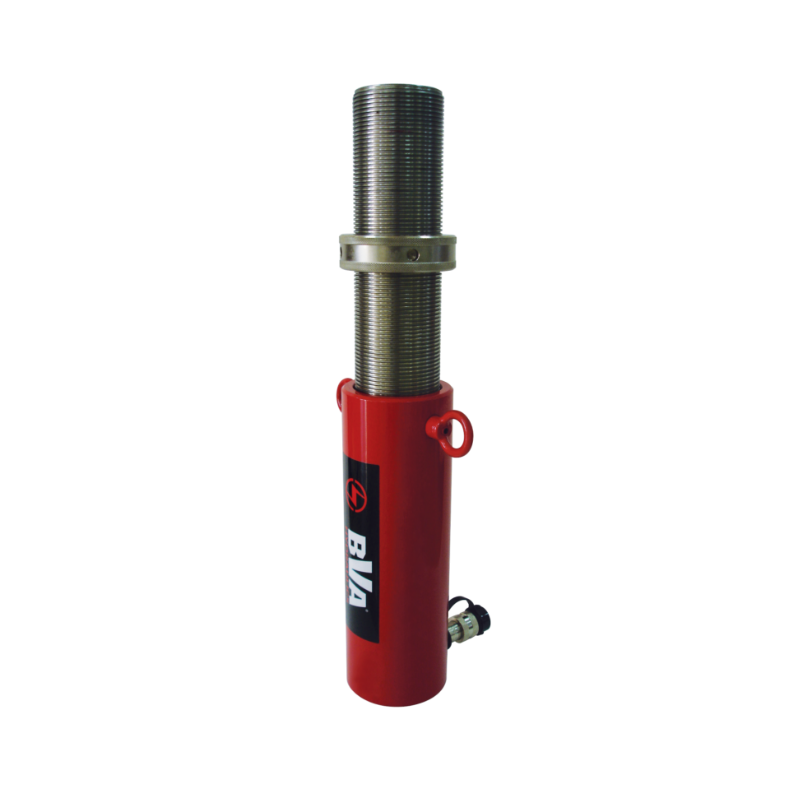

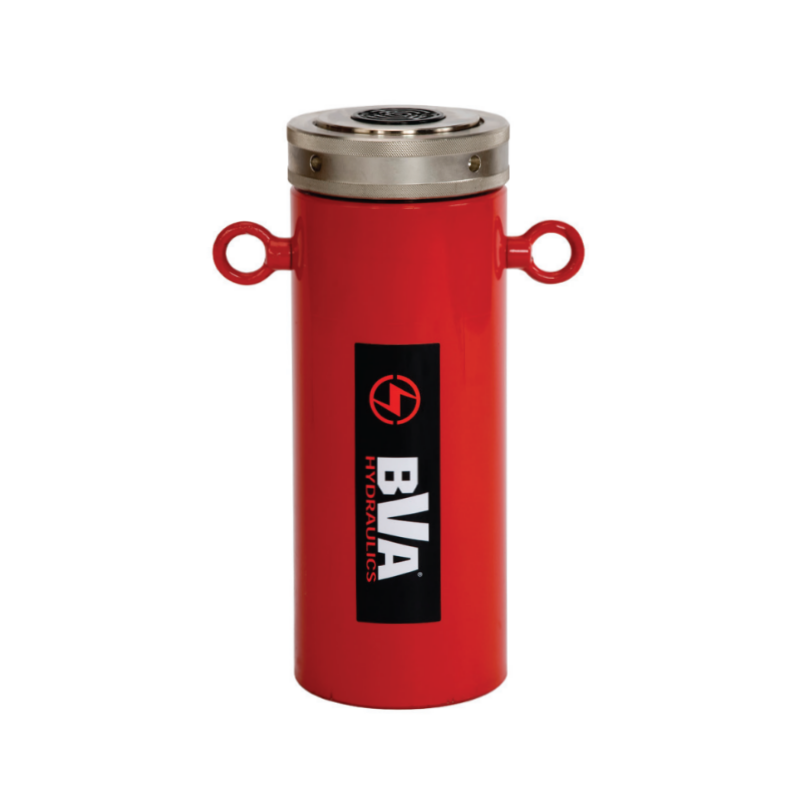

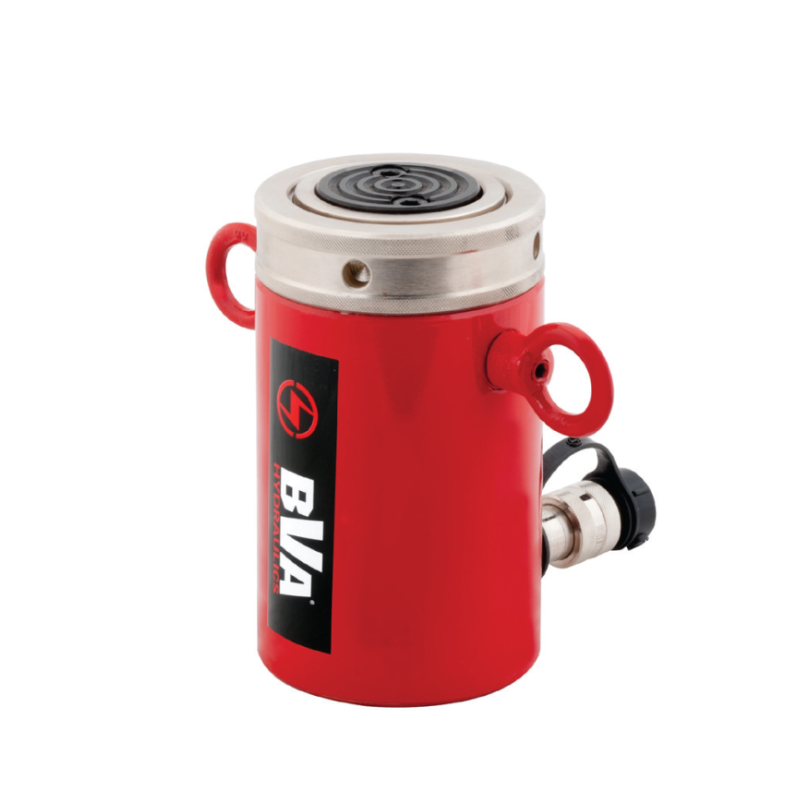

Single-acting hydraulic cylinders with a locking ring are a safe solution for long-term lifting work. The basic range covers cylinders in the push capacity range from 50 to 300 ton, in addition to which cylinders are available on special order up to 1000 tons.

  • Can support the load for a long period of time
  • The lock nut can be adjusted at any point on the stroke of the cylinder to lock the load off
  • Ram and inside housing are nickel plated to prevent rust and corrosion
  • Two overflow ports in the support rings to avoid over extension of the ram
  • Colour indicator to alert the operator of maximum stroke level
  • High flow ball coupler and dust cap included
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

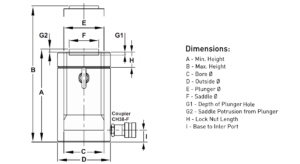

Description





Push Capacity 50 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN5502 50 165 124 355 70,9 15
HLN5504 100 213 124 709 70,9 20
HLN5506 150 264 124 1 064 70,9 25
HLN5508 200 315 124 1 418 70,9 30
HLN5510 250 363 124 1 773 70,9 35
HLN5512 300 414 124 2 127 70,9 40
Push Capacity 100 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN10002 50 188 165 664 132,7 30
HLN10004 100 236 165 1 327 132,7 39
HLN10006 150 287 165 1 991 132,7 47
HLN10008 200 338 165 2 654 132,7 56
HLN10010 250 386 165 3 318 132,7 64
HLN10012 300 437 165 3 981 132,7 73
Push Capacity 150 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN15002 50 209 205 1 006 201 53
HLN15004 100 259 205 2 012 201 66
HLN15006 150 309 205 3 018 201 79
HLN15008 200 359 205 4 019 201 92
HLN15010 250 409 205 5 025 201 105
HLN15012 300 459 205 6 031 201 118
Push Capacity 200 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN20002 50 243 235 1 322 264,5 82
HLN20004 100 293 235 2 645 264,5 99
HLN20006 150 343 235 3 966 264,5 116
HLN20008 200 394 235 5 293 264,5 133
HLN20010 250 442 235 6 612 264,5 150
HLN20012 300 493 235 7 934 264,5 167
Push Capacity 250 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN25002 50 249 275 1 815 363,1 115
HLN25006 150 349 275 5 446 363,1 162
HLN25012 300 499 275 10 891 363,1 231
Push Capacity 300 ton (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLN30002 50 295 310 2 271 454,3 172
HLN30006 150 395 310 6 814 454,3 231
HLN30012 300 545 310 13 628 454,3 320

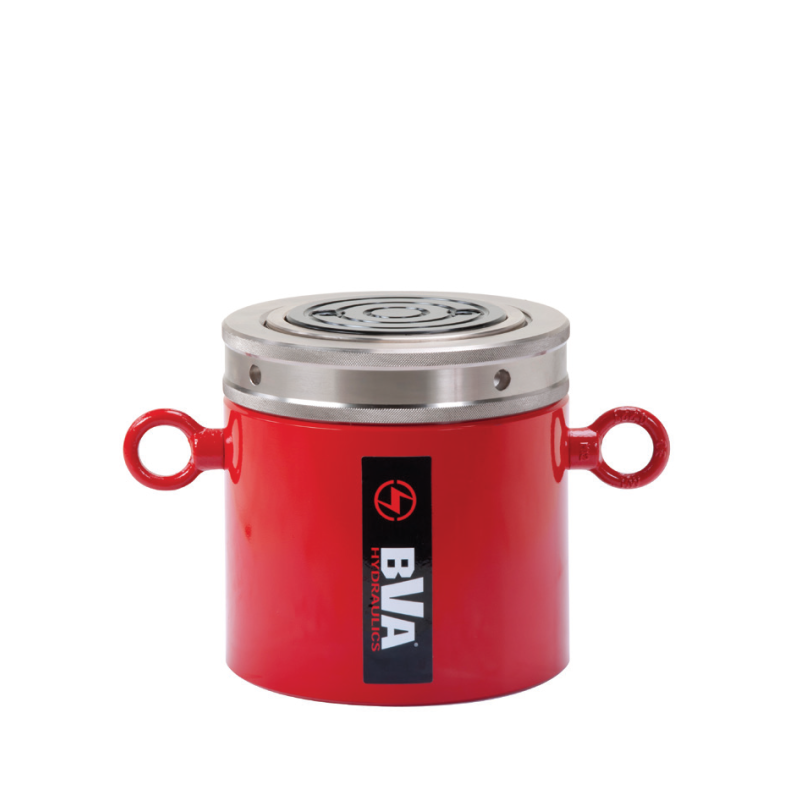

Low Profile Lock Nut Cylinders
Item Push Capacity (tn) Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HLNF6002 60 50 125 140 433 86,6 14
HLNF10002 100 50 137 175 725 144,9 25
HLNF16002 160 45 148 220 1 031 229,1 41
HLNF20002 200 45 155 245 1 276 283,6 54
HLNF25002 250 45 159 275 1 634 363,1 70
HLNF40002 400 45 178 350 2 519,60 559,9 129
