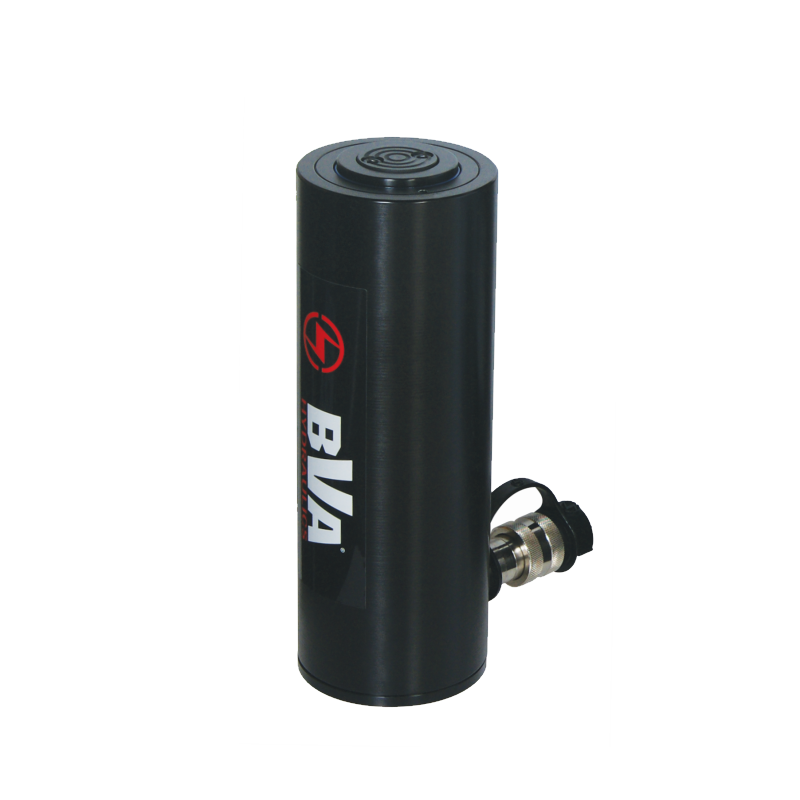

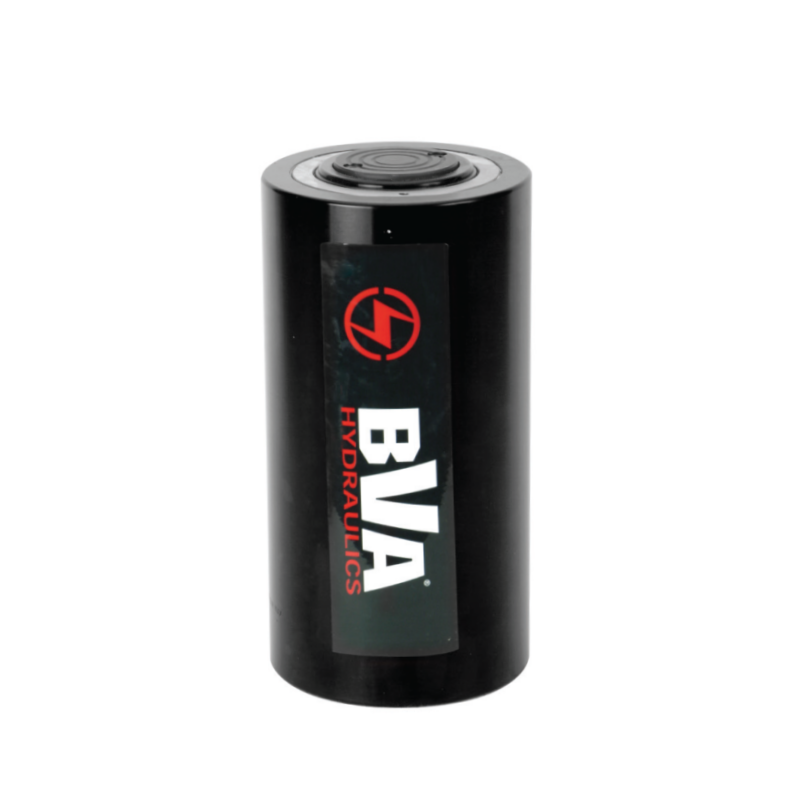

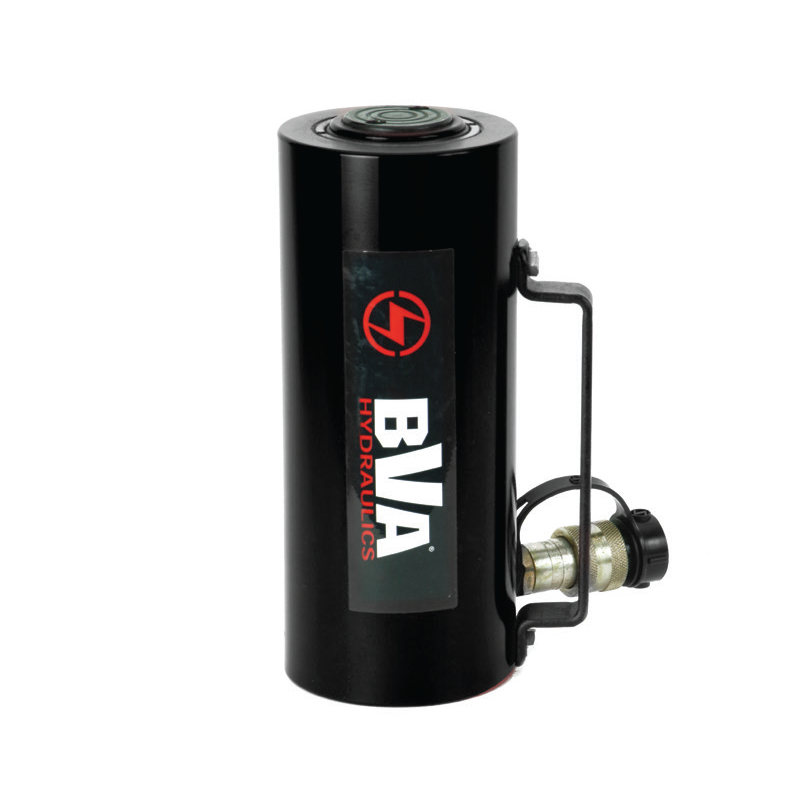

Single Acting Aluminium Cylinders

The single acting aluminium cylinders are as quality as the traditional steel-framed cylinders but due to their manufacturing material they are considerably lighter and thus easier to move. High strength surface and construction guarantees a long-service life for the cylinders. The extensive range provides right tool for every need on capacity range of 20-100 ton.

  • Heavy duty return spring for quicker retraction
  • Light weight for easy handling
  • Hard anodized surface
  • High flow ball coupler and dust cap included
  • Maximum working pressure is 700 bar



Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 20 tn

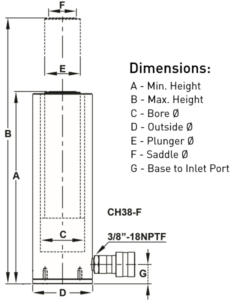

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HU2002 50 174 224 63 85 50,8 39,5 27,5 153 31,2 3
HU2004 100 224 324 63 85 50,8 39,5 27,5 312 31,2 3,7
HU2006 150 274 424 63 85 50,8 39,5 27,5 468 31,2 4,4
Push capacity 30 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HU3002 50 181 231 75 100 60 39,5 33,5 221 44,2 4,7
HU3004 100 231 331 75 100 60 39,5 33,5 442 44,2 5,4
HU3006 150 281 431 75 100 60 39,5 33,5 663 44,2 6,1
Push capacity 55 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HU5502 50 186 236 95 130 80 70 30,5 354 70,9 7,6
HU5504 100 236 336 95 130 80 70 30,5 708 70,9 10,3
HU5506 150 286 436 95 130 80 70 30,5 1 063 70,9 11,6
HU5508 200 336 536 95 130 80 70 30,5 1 417 70,9 12,3
HU5510 250 386 636 95 130 80 70 30,5 1772 70,9 14,2
Push capacity 100 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Capacity (cc) Cylinder Effective Area (cm²) Weight (kg)
HU10004 102 271 303 130 180 109,9 70 46,5 1 328 132,7 19,5
HU10006 152 321 453 130 180 109,9 70 46,5 1 992 132,7 23,1
HU10008 254 371 603 130 180 109,9 70 46,5 2 655 132,7 30,8

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet (in Finnish) [PDF]
