Precision Double Acting Cylinders

HPD SERIES

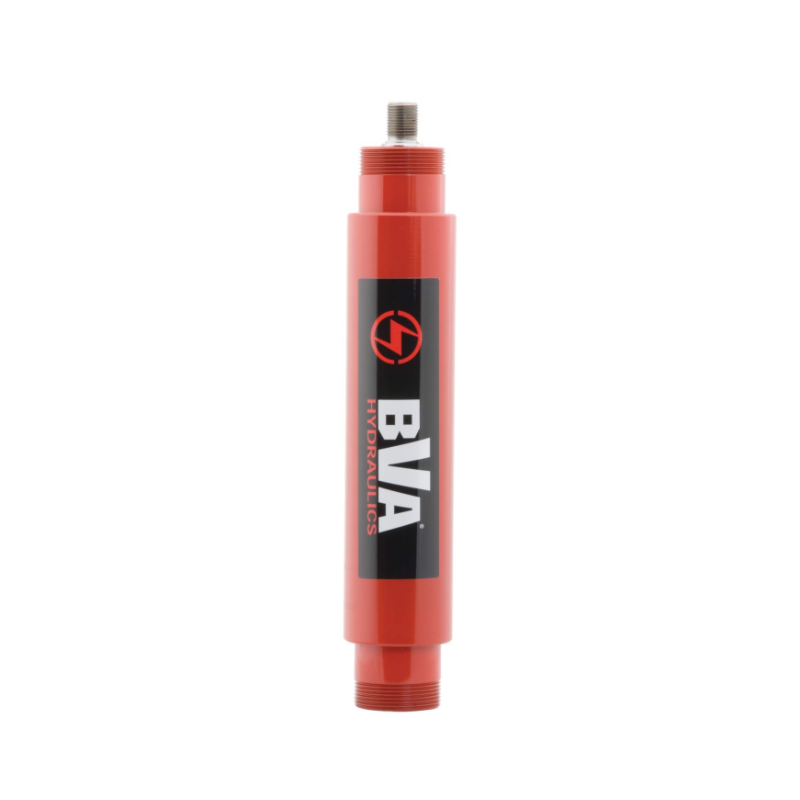

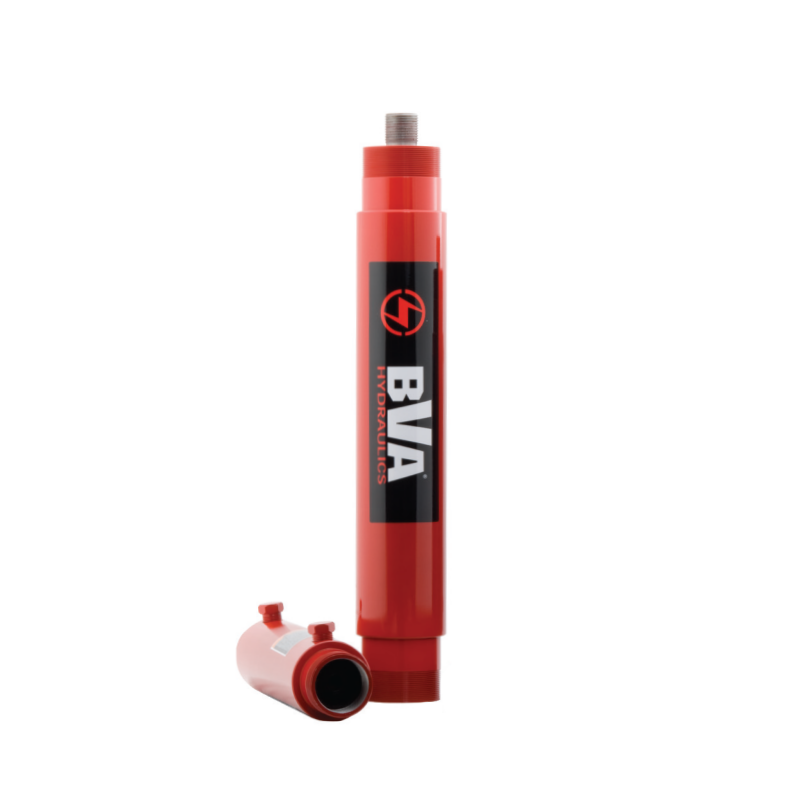

High-precision double acting cylinders suit well for a variety of applications requiring pushing and pulling especially in production work. The cylinder can easily be attached to a variety of applications using the threads externally on the plunger and internally in the base as well as external threads on the collar and base. Wide range of cylinders covers pushing range of 8-15 ton and pulling range of 4.5 – 7.1 ton.

  • High strength steel construction

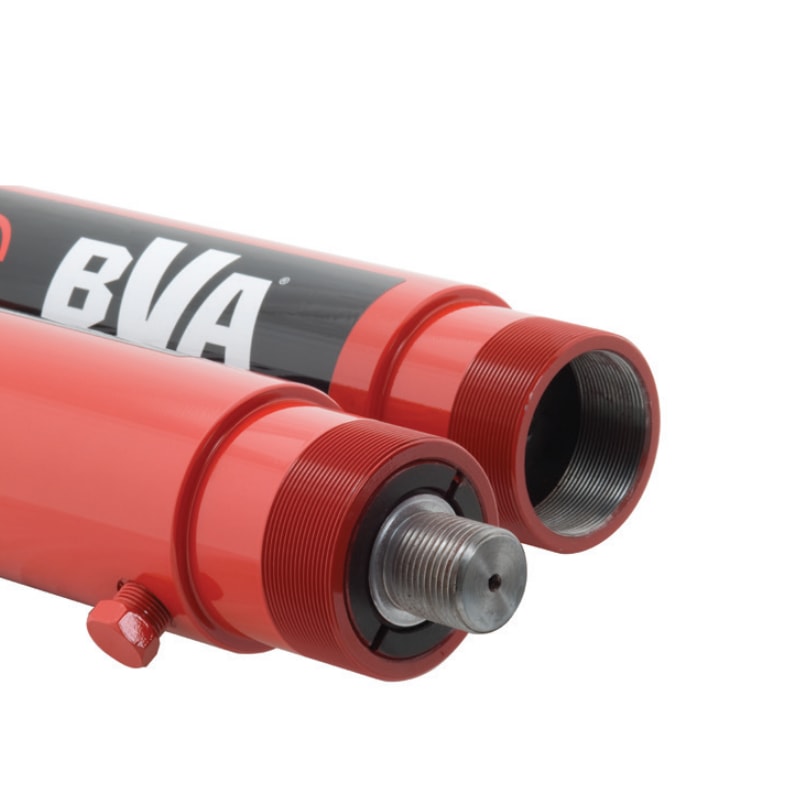

  • One piece high grade alloy bearing for side load protection and longer life
  • External plunger threads, internal base threads
  • Polyurethane cup seal helps to provide an optimal performance
  • High flow 3/8”-18NPTF  ball couplers with dust caps included
  • Maximum working pressure 700 bar.



Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 8 tn, pull capacity 4,5 tn

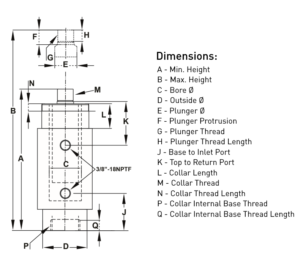

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) J (mm) K (mm) L (mm) N (mm) Q (mm) G M P Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HPD0906 155 350 505 38 64 25 25 19 56 56 38 15 35 3/4”-16N 2”-12N 111/16”-18N 175 99 11,3 6,4 6,6
HPD0910 257 452 709 38 64 25 25 19 56 56 38 15 35 3/4”-16N 2”-12N 111/16”-18N 291 165 11,3 6,4 8,4
Push capacity 15 tn, pull capacity 7,1 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) J (mm) K (mm) L (mm) N (mm) Q (mm) G M P Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HPD1606 159 389 548 50 74 36 28 25 73 73 54 25 41 11/8”-12N 2 5/8”-16N 2 3/16”-16N 322 160 20,3 10,8 10,0
HPD1610 260 490 750 50 74 36 28 25 73 73 54 25 41 11/8”-12N 2 5/8”-16N 2 3/16”-16N 527 262 20,3 10,8 12,8
