BVA Hydraulics

Air Pumps

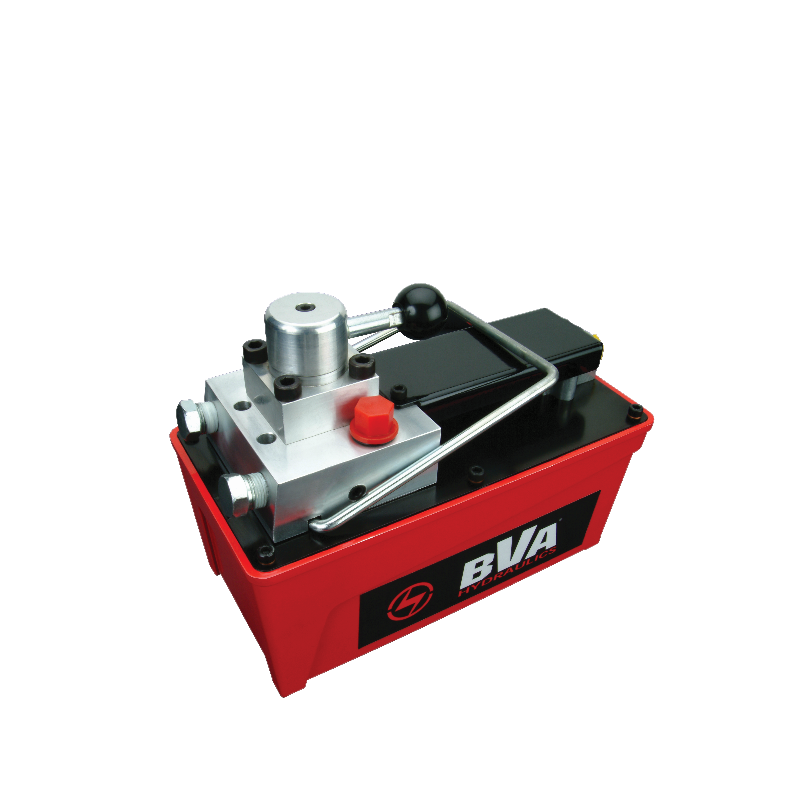

The comprehensive air pump unit series provides a proper choice for any single or double acting hydraulic cylinder. Due to light weight the traditional air pumps can be easily moved from one place to another, while rotary pumps are suitable choices when an especially high oil output is required.

  • High strength reinforced alloy aluminium reservoir is lightweight and corrosion resistant
  • Internal pressure relief valve for overload protection
  • Suggested air pressure range up to 14 bar
  • Maximum working pressure 700 bar
  • PA600 & PA600H models can be operated in any position – mounting plate allows the pump to be securely fastened and hydraulic port swivels 360 degrees for easy connection.



More from BVA Hydraulics >>

Category:

Description

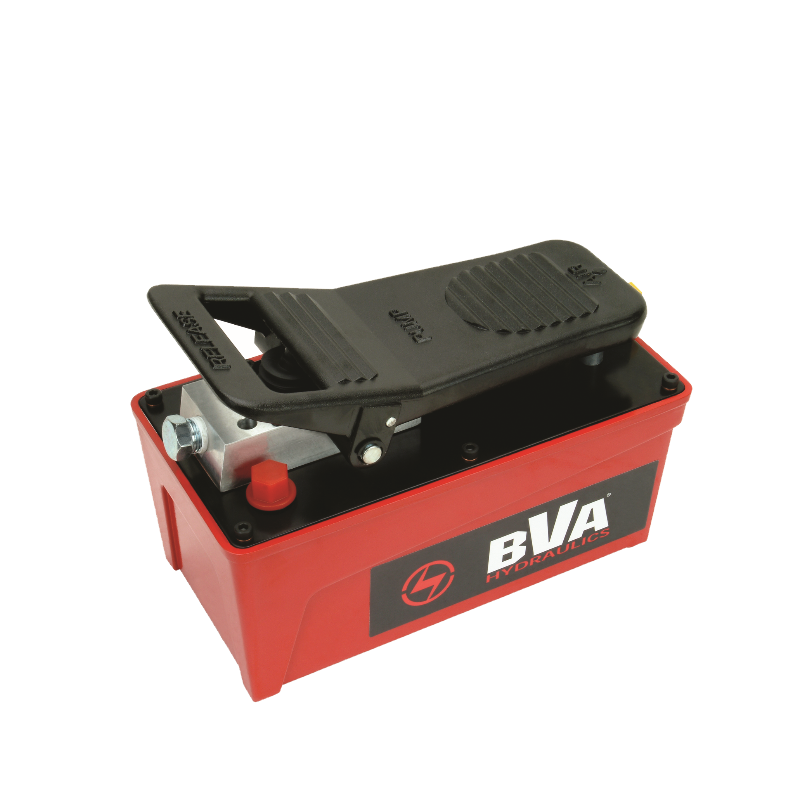

Pumps for Single Acting Cylinders

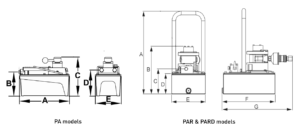

Nimike Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) Oil Inlet Port Oil Outlet Port Weight (kg)
PA600 0,6 1,00 0,15 426 250 178 157 142 1/4″-18NPTF” 3/8″-18NPTF” 6,4
PA600H 0,6 1,00 0,15 426 250 178 114 146 1/4″-18NPTF” 3/8″-18NPTF” 5,7
PA1500 1,5 1,08 0,18 263 127 185 131 136 1/4″-18NPTF” 3/8″-18NPTF” 8,2
PA1500A* 1,5 1,08 0,18 263 127 185 131 136 1/4″-18NPTF” 3/8″-18NPTF” 8,2
PA1500L** 1,5 1,00 0,16 278 160 204 130 136 1/4″-18NPTF” 3/8″-18NPTF” 8,8
PA1500LA*,** 1,5 1,08 0,18 263 127 185 131 136 1/4″-18NPTF” 3/8″-18NPTF” 8,2
PA2000 2,0 1,07 0,20 321 163 207 132 187 1/4″-18NPTF” 3/8″-18NPTF” 9,1
PA3801 3,8 1,07 0,18 321 129 187 133 187 1/4″-18NPTF” 3/8″-18NPTF” 12,3
PA3801L** 3,8 1,00 0,16 321 163 207 132 187 1/4″-18NPTF” 3/8″-18NPTF” 13,8
PA7550 7,6 1,07 0,18 321 127 211 156 214 1/4″-18NPTF” 3/8″-18NPTF” 16,3
PA7550L** 7,6 1,07 0,18 321 127 211 156 214 1/4″-18NPTF” 3/8″-18NPTF” 16,3
Pumps for Double Acting Cylinders
Item Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) Oil Inlet Port Oil Outlet Port Weight (kg)
PA1500M 1,5 1,08 0,18 267 127 203 136 136 1/4″-18NPTF” 3/8″-18NPTF” 8,7
PA3801M 3,8 1,07 0,18 321 128 204 135 187 1/4″-18NPTF” 3/8″-18NPTF” 10,9
PA7550M 7,6 1,07 0,18 321 152 229 161 255 1/4″-18NPTF” 3/8″-18NPTF” 18,1

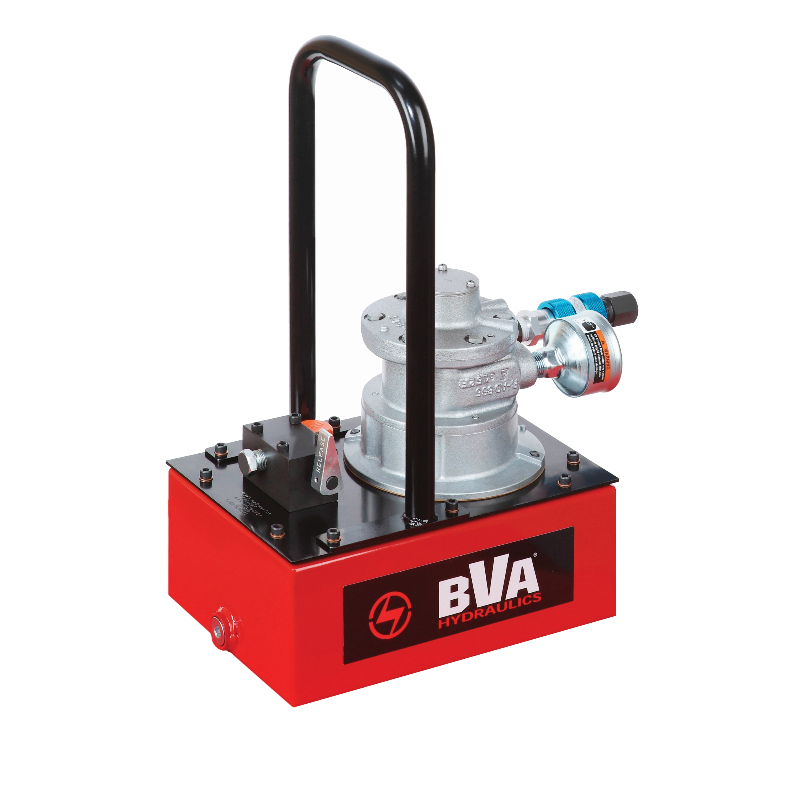

Rotary Pumps for Single Acting Cylinders
Item Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Inlet Port Oil Outlet Port Weight (kg)
PARD1701 3,8 5,13 0,36 485 239 147 120 205 313 404 1/4”-18NPTF 3/8”-18NPTF 19
PARD1703 11,4 5,13 0,30 304 212 185 305 313 456 1/4”-18NPTF 3/8”-18NPTF 25
PARD4003 11,4 7,62 1,15 344 212 185 305 313 467 1/4”-18NPTF 3/8”-18NPTF 30
Rotary Pumps for Double Acting Cylinders
Item Oil Capacity (l) Stage 1 – Oil Output Flow Rate (l/min) Stage 2 – Oil Output Flow Rate (l/min) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Oil Inlet Port Oil Outlet Port Weight (kg)
PARM1703 11,4 6,83 0,36 303 267 209 185 305 313 459 1/4”-18NPTF 3/8”-18NPTF 25
PARM4003 11,4 8,39 1,15 344 209 185 305 313 470 1/4”-18NPTF 3/8”-18NPTF 27

*) Unit is equipped with an external pressure adjustment

**) These pumps are equipped with a hand held air powered pendant
