Double Acting Hollow Hole Cylinders

HDC SERIES

High-quality double acting hollow hole cylinders are suitable for a wide range of purposes in various industrial applications. The comprehensive range covers pushing range of 30-145 ton and pulling range of 18-65 ton. In addition, cylinders are available on special order up to 1000 tons.

  • Collar thread for easy attachment
  • Dual Plunger wipers help to prevent contamination
  • High flow 3/8”-18NPTF  ball couplers with dust caps included
  • Maximum working pressure is 700 bar



Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 30 tn, pull capacity 18 tn

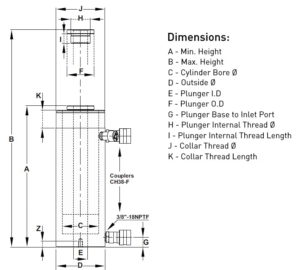

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) I (mm) K (mm) H J Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDC3007 177 331 508 85 114 33 63 23 17 42,2 1 13/16”-16UN 4 1/2”-12 792 455 41 26 19,5
HDC3010 257 432 689 85 114 33 63 23 17 42,2 1 13/16”-16UN 4 1/2”-12 1 051 658 41 26 25,7
Push capacity 60 tn, pull capacity 40 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) I (mm) K (mm) H J Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDC6003 89 248 337 125 159 54 92 27 17 48,5 2 3/4”-16UN 6 1/4”-12 641 428 84 56 29,8
HDC6006 165 324 489 125 159 54 92 27 17 48,5 2 3/4”-16UN 6 1/4”-12 1 390 926 84 56 36,8
HDC6010 257 438 695 125 159 54 92 27 17 48,5 2 3/4”-16UN 6 1/4”-12 2 165 1 443 84 56 51
Push capacity 100 tn, pull capacity 64 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) I (mm) K (mm) H J Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDC10001 38 165 203 165 213 79 125 27 21 60,5 4”-16UN 8 3/8”-12 545 347 143 91 33,4
HDC10003 76 254 330 165 213 79 125 27 21 60,5 4”-16UN 8 3/8”-12 1 086 694 143 91 51,4
HDC10006 152 343 495 165 213 79 125 27 21 60,5 4”-16UN 8 3/8”-12 2 169 1 388 143 91 69,5
HDC10010 257 461 718 165 213 79 125 27 21 60,5 4”-16UN 8 3/8”-12 3 679 2 345 143 91 90,2
Push capacity 150 tn, pull capacity 75 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) I (mm) K (mm) H J Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HDC15008 203 349 563 250 79 4 247 2 170 205 107 108,5
