Hand Pumps

An economical, yet excellent option to be used together with hydraulic cylinder is the hydraulic hand pump. Our wide range of pumps includes units with different sized oil tanks according to the size of the cylinder. Hand pumps are suitable for use with both single and double acting cylinders.

Models P352, P1000, P2301, P4301 and P8701 have a two-speed feature for faster operation
Internal pressure relief valve for overload protection
External load release valve (when using together with single acting cylinders)
Large oil capacities to power a wide range of cylinders and tools

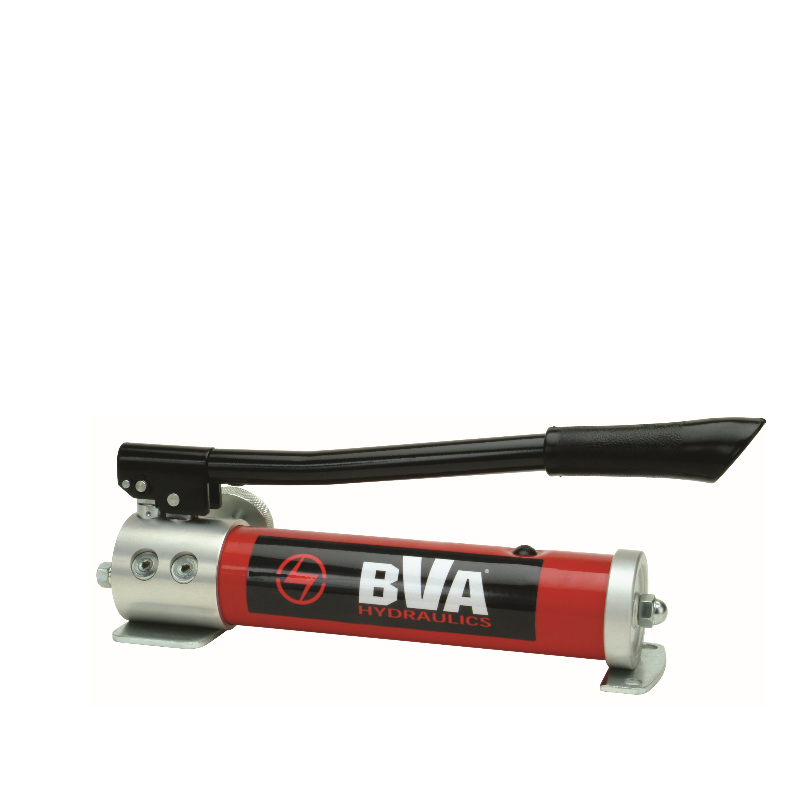

Models P352 and P1000 are constructed of high strength lightweight aluminium alloy for easy handling when portability is important
Maximum working pressure is 700 bar

Description

Single Speed for Single Acting Cylinders

Item

Oil Capacity (cc)

Stage 1 – Pressure Rating (bar)

Stage 1 – Oil Displacement per Stroke (cc)

Stage 2 – Pressure Rating (bar)

Stage 2 – Oil Displacement per Stroke (cc)

Handle Operating Force (N)

Piston Stroke (mm)

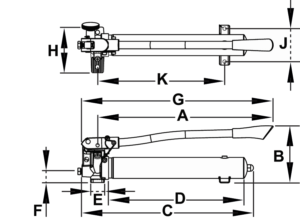

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

J (mm)

K (mm)

Oil Outlet Port

Weight (kg)

P601S

600

–

700

2,5

485

482

160

506

115

511

100

452

3/8”-18NPTF

Two Speed for Single Acting Cylinders
Item	Oil Capacity (cc)	Stage 1 – Pressure Rating (bar)	Stage 1 – Oil Displacement per Stroke (cc)	Stage 2 – Pressure Rating (bar)	Stage 2 – Oil Displacement per Stroke (cc)	Handle Operating Force (N)	Piston Stroke (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	Oil Outlet Port	Weight (kg)
P352	350	14	3,3	700	0,8	390	10	323	150	333	85	344	34	343	98	65	370	3/8”-18NPTF	3
P1000	1 000	14	13,3	700	2,3	440	21	552	175	507	120	92	32	576	100	100	430	3/8”-18NPTF	6

Two Speed for Single Acting Cylinders
Item	Oil Capacity (cc)	Stage 1 – Pressure Rating (bar)	Stage 1 – Oil Displacement per Stroke (cc)	Stage 2 – Pressure Rating (bar)	Stage 2 – Oil Displacement per Stroke (cc)	Handle Operating Force (N)	Piston Stroke (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	Oil Outlet Port	Weight (kg)
P1201	1 100	14	13,3	700	2,3	440	21	525	182	586	123	–	44	552	95	95	540	3/8”-18NPTF	9
P2301	2 200	14	13,3	700	2,3	440	21	525	173	609	135	–	44	553	95	90	573	3/8”-18NPTF	13
P4301	4 100	14	13,3	700	2,3	440	21	524	195	581	135	–	44	551	95	95	545	3/8”-18NPTF	17
P8701	7 800	20	126,3	700	4,8	636	43	655	295	771	293	614	210	684	387	284	–	3/8”-18NPTF	35

Two Speed for Double Acting Cylinders
Item	Oil Capacity (cc)	Stage 1 – Pressure Rating (bar)	Stage 1 – Oil Displacement per Stroke (cc)	Stage 2 – Pressure Rating (bar)	Stage 2 – Oil Displacement per Stroke (cc)	Handle Operating Force (N)	Piston Stroke (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	Oil Outlet Port	Weight (kg)
P2301M	2 200	14	13,3	700	2,3	440	21	525	173	659	120	–	–	553	95	90	573	3/8”-18NPTF	15
P4301M	4 100	14	13,3	700	2,3	440	21	524	195	630	120	–	–	552	95	95	545	3/8”-18NPTF	19
P8701M	7 800	20	126,3	700	4,8	636	43	655	295	771	293	614	229	684	387	284	–	3/8”-18NPTF	35
