BVA Hydraulics

Double Acting Cylinders

HD SERIES

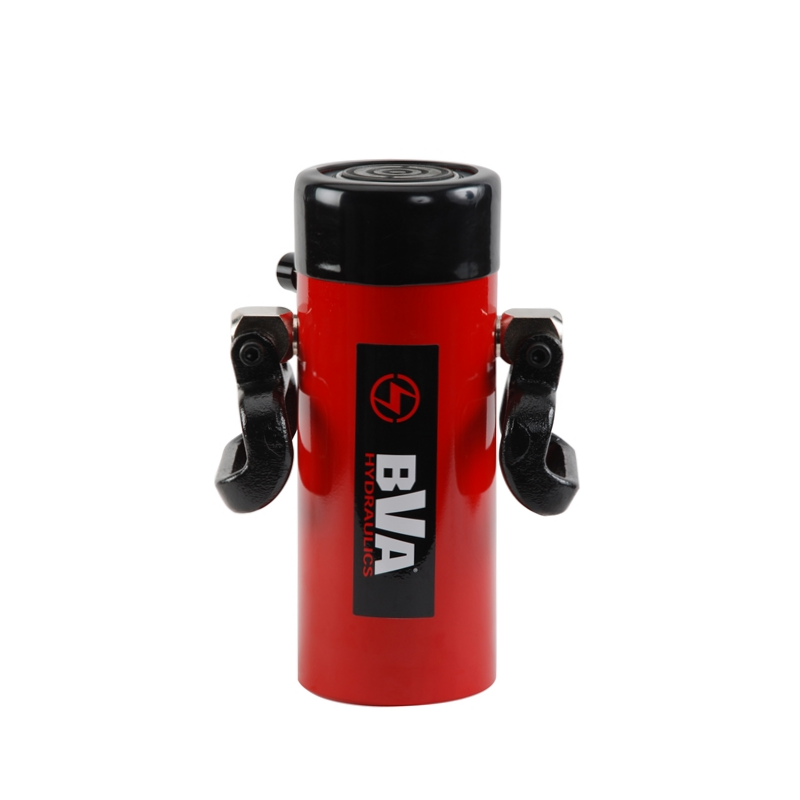

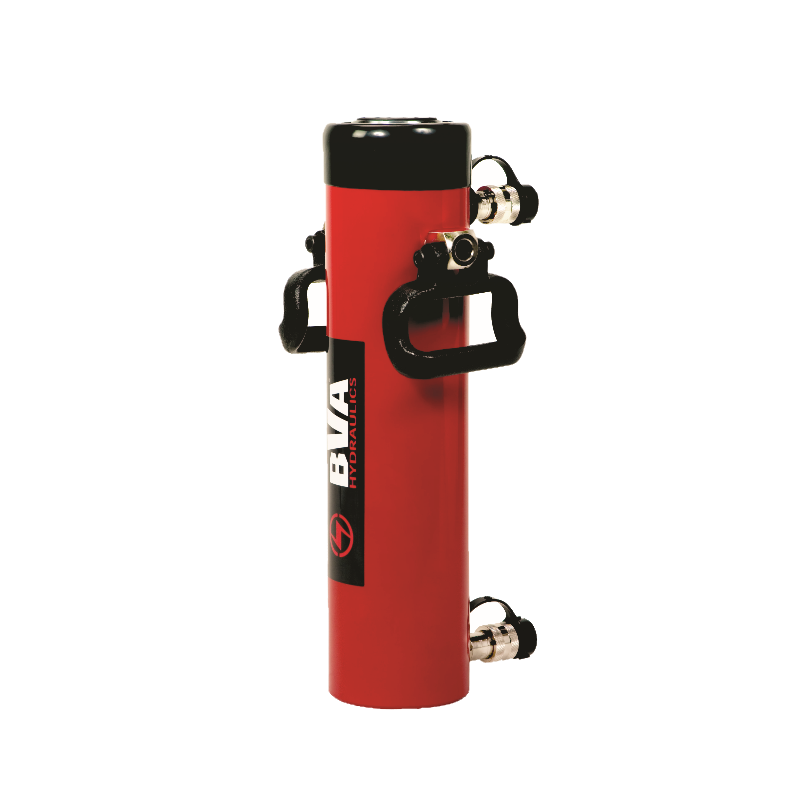

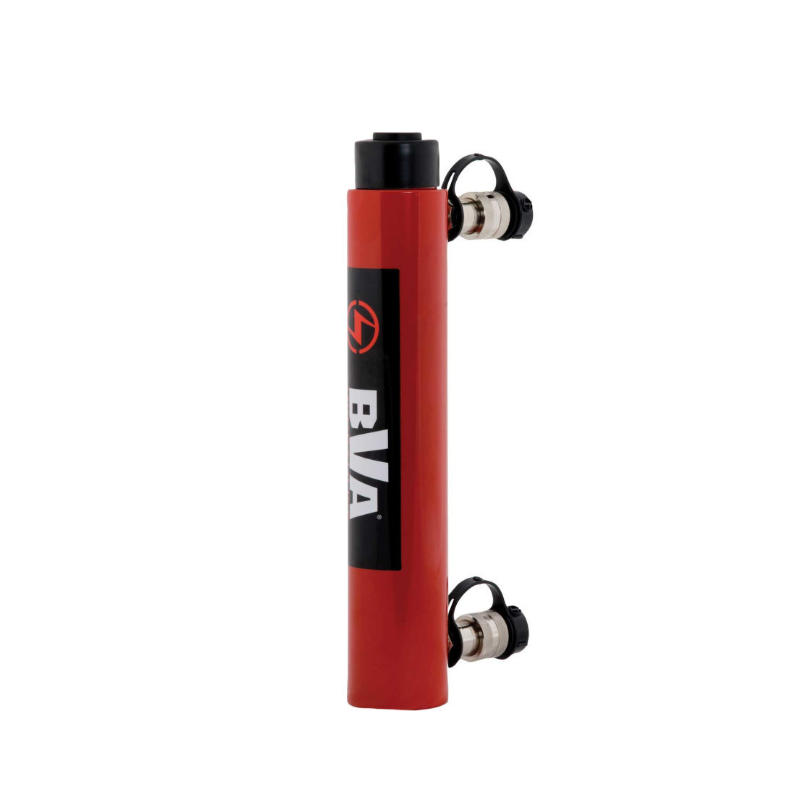

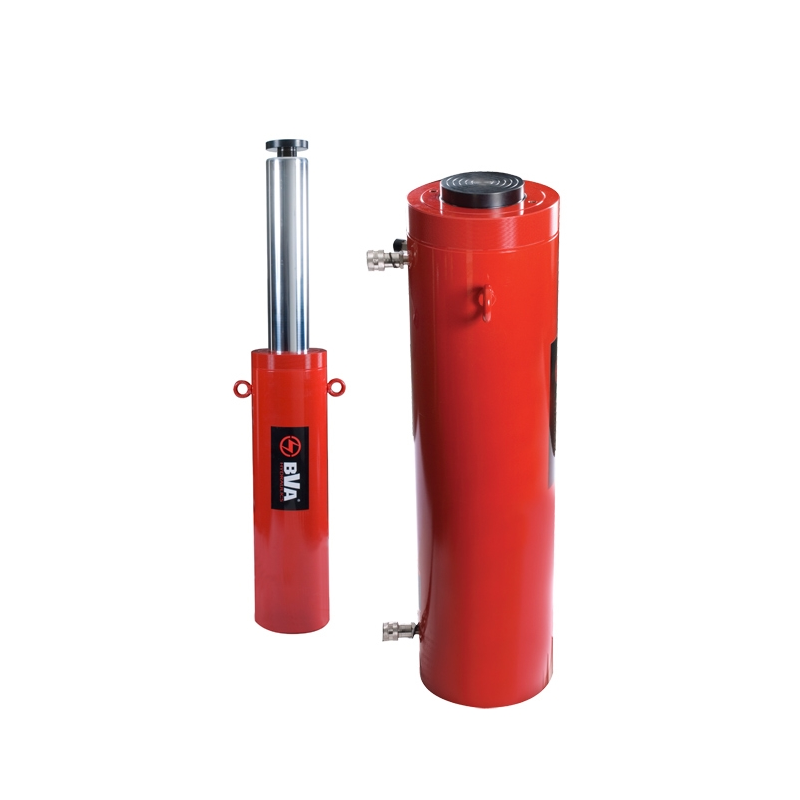

Double-acting hydraulic cylinders made of high-quality components are an excellent solution for industrial work sites. The cylinders are available in the pushing range of 10-100 ton and pulling range of 3.4-44 tn, in addition to which the cylinders are available on special order up to 2000 tons. Double acting cylinders are also available as 20 and 30 ton aluminum frame models.

  • Internal plunger threads
  • Plunger wiper reduces contamination and extends the cylinder-life
  • High strength steel construction manufactured from solid bar
  • High flow 3/8”-18NPTF  ball couplers with dust caps included
  • Collar thread protectors
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal helps to provide an optimal performance
  • Industrial hard chrome plated ram prevents rust and corrosion
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push capacity 10 tn, pull capacity 3,4 tn

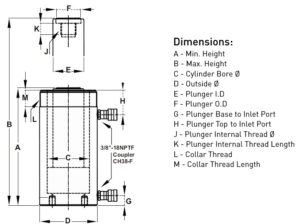

Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) M (mm) J L Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HD1010 255 409 665 43 73 35 35 36 53 25 26 1”-8UNC 2 1/4-14 367 122 14,5 4,8 12,1
HD1012 304 458 762 43 73 35 35 36 53 25 26 1”-8UNC 2 1/4-14 438 146 14,5 4,8 13,6
Push capacity 30 tn, pull capacity 15 tn
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) M (mm) J L Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HD3008 207 389 596 73 101 54 50 42 74 25 49 1 1/2-16UN 3 5/16”-12 867 426 41,9 20,6 19,5
HD3014 368 550 918 73 101 54 50 42 74 25 49 1 1/2-16UN 3 5/16”-12 1 542 758 41,9 20,6 27,5
Push capacity 50 tn, pull capacity 15 tn (2 handles included)
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) M (mm) J L Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HD5506 157 331 488 95 127 80 70 29 73 25 44 1”-12UNF 5”-12 1 113 323 70,9 20,6 32,0
HD5513 335 509 844 95 127 80 70 29 73 25 44 1”-12UNF 5”-12 2 375 690 70,9 20,6 47,2
HD5520 511 733 1269 95 127 80 70 29 73 25 44 1”-12UNF 5”-12 3 623 1 053 70,9 20,6 66,3
Push capacity 75 tn, pull capacity 24 tn (2 handles included)
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) M (mm) J L Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HD7506 155 348 503 115 146 95 70 30 71 38 38 1”-12UNF 5 3/4”-12 1 608 511 103,8 33 42,5
HD7513 333 526 859 115 146 95 70 30 71 38 38 1”-12UNF 5 3/4”-12 3 457 1 099 103,8 33 62,1
Push capacity 100 tn, pull capacity 44 tn (2 handles included)
Item Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) M (mm) J L Push Oil Capacity (cc) Pull Oil Capacity (cc) Push Effective Area (cm²) Pull Effective Area (cm²) Weight (kg)
HD10006 167 357 524 130 177 95 75 31 75 35 50 1 3/4”-12UN 6 7/8”-12 2 216 1 032 132,7 61,8 62,9
HD10010 257 449 706 130 177 95 75 31 75 38 50 1 3/4”-12UN 6 7/8”-12 3 413 1 591 132,7 61,8 76,7
HD10013 333 524 857 130 177 95 75 31 75 35 50 1 3/4”-12UN 6 7/8”-12 4 419 2 058 132,7 61,8 87,8
HD10018 461 687 1148 130 177 95 75 38 75 35 50 1 3/4”-12UN 6 7/8”-12 6 117 2 849 132,7 61,8 112,6
