BVA Hydraulics

Single Acting Cylinders

H SERIES

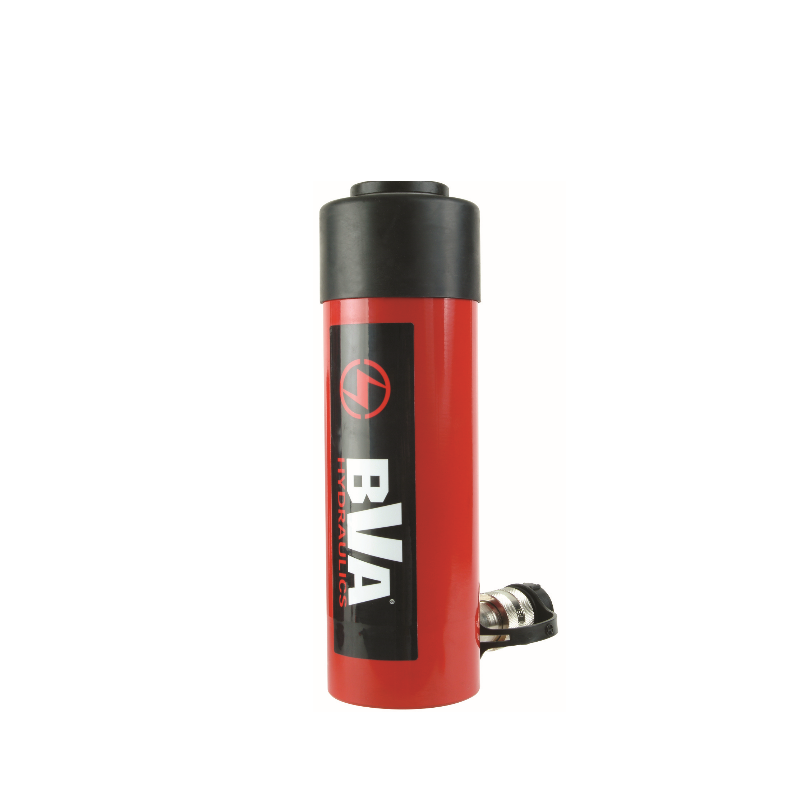

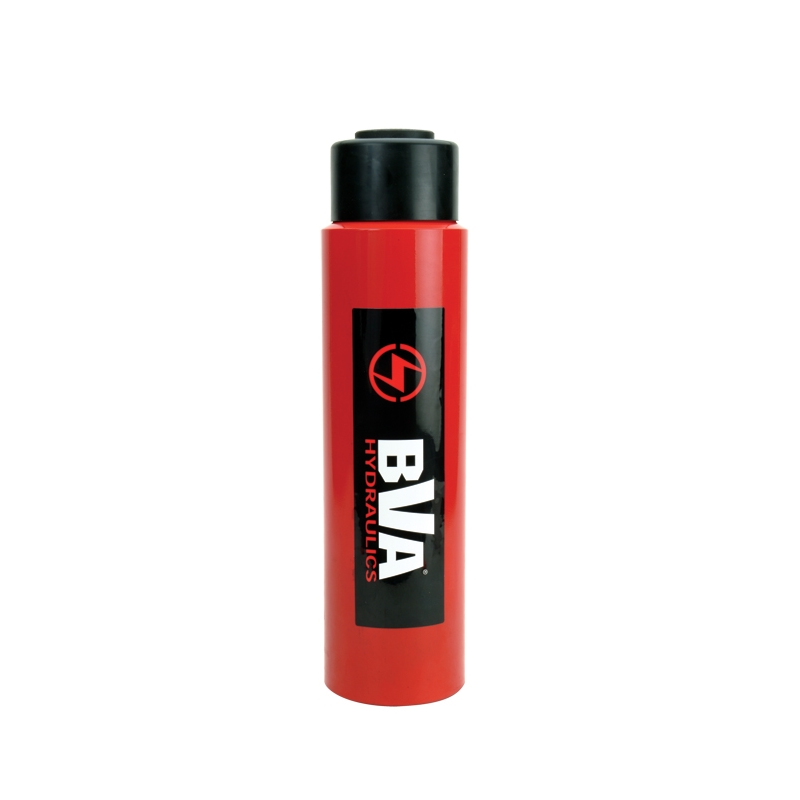

This hydraulic cylinder copes with a bulldozer driving over it, after which it lifts the vehicle. Top-quality steel-framed hydraulic cylinders also withstand lateral stress. The extensive range provides right tool for every need on capacity range of 5-100 ton.

  • Heavy duty return spring for quicker retraction
  • Solid steel cylinder body
  • High flow ball coupler and dust cap included
  • Handles included in models with a push capacity over 50 ton
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

SKU: H Category:

Description





Push Capacity 5 tn (44 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H0501 27 116 38 16 6,5 1,4
H0503 78 169 38 50 6,5 1,5
H0505 129 221 38 83 6,5 1,8
H0507 181 272 38 116 6,5 2,1
H0509 232 324 38 148 6,5 2,5
Push Capacity 10 tn (99 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H1001 25 92 58 36 14,5 1,8
H1002 51 123 58 74 14,5 2,3
H1004 102 174 58 147 14,5 3,5
H1006 155 250 58 218 14,5 4,3
H1008 206 301 58 292 14,5 5,1
H1010 257 352 58 366 14,5 5,9
H1012 305 403 58 439 14,5 6,8
H1014 356 450 58 515 14,5 7,6
Push Capacity 15 tn (139 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H1501 25 124 70 50 20,3 3,1
H1502 51 149 70 103 20,3 3,9
H1504 101 200 70 205 20,3 5
H1506 152 270 70 308 20,3 6,7
H1508 203 321 70 411 20,3 7,8
H1510 254 372 70 515 20,3 9,1
H1512 305 423 70 618 20,3 10,2
H1514 356 474 70 721 20,3 11,4
H1516 407 529 70 824 20,3 12,8
Push Capacity 25 tn (228 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H2501 26 143 85 86 33,2 5,5
H2502 51 168 85 170 33,2 6,4
H2504 102 219 85 339 33,2 8,2
H2506 155 272 85 515 33,2 10,1
H2508 206 323 85 684 33,2 11,9
H2510 257 374 85 854 33,2 13,7
H2512 310 426 85 1 030 33,2 15,6
H2514 362 476 85 1 203 33,2 17,4
Push Capacity 30 tn (287 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H3008 210 387 102 879 41,9 18,5
Push Capacity 55 tn (487 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H5502 51 176 127 360 70,9 15
H5504 103 227 127 730 70,9 18,6

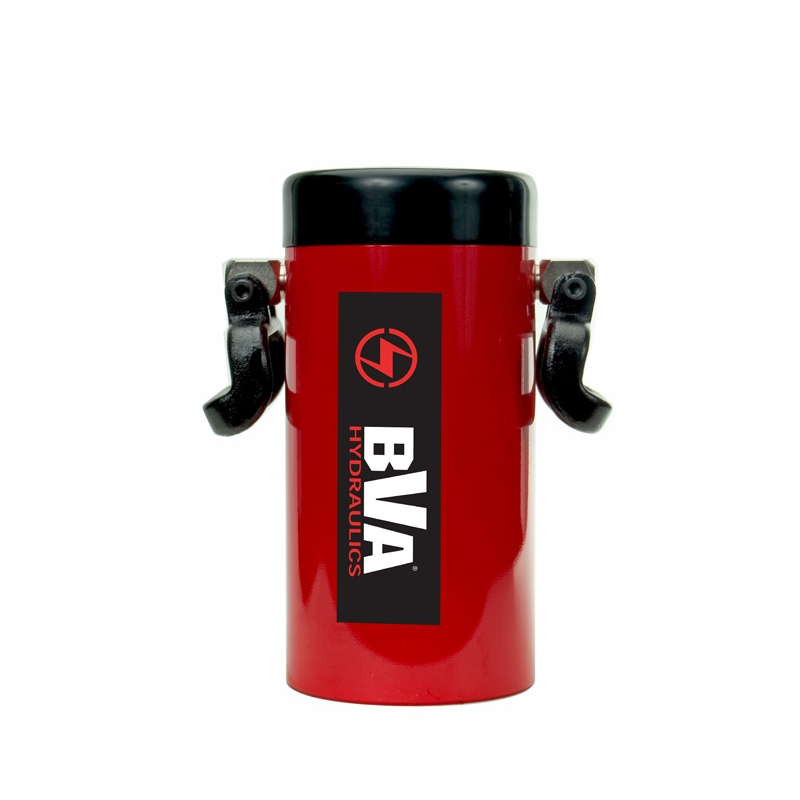

Push Capacity 55 tn (487 kN) (2 Handles Included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H5506 159 283 127 1 126 70,9 26,1
H5510 260 385 127 1 844 70,9 30,6
H5513 337 461 127 2 388 70,9 39,5
Push Capacity 75 tn (718 kN) (2 Handles Included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H7506 156 285 147 1 620 103,9 33,6
H7513 333 492 147 3 459 103,9 55,3
Push Capacity 100 tn (911 kN) (2 Handles Included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
H10002 51 219 159 677 132,7 29,9
H10006 168 357 177 2 229 132,7 57,6
H10010 260 449 177 3 453 132,7 69,4
H10014 356 545 177 4 721 132,7 81,6

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet [PDF] Tuotekortti [PDF]

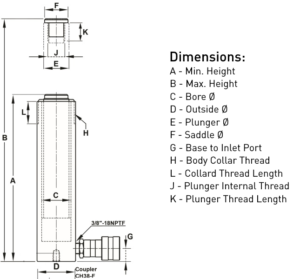

Dimensions

Push Capacity 5 tn (44 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H0501 29 25 25 20 1 1/2”-16N 28 3/4”-16UNF 16 25 1/4”-20UNC 14
H0503 29 25 25 20 1 1/2”-16N 28 3/4”-16UNF 16 25 1/4”-20UNC 14
H0505 29 25 25 20 1 1/2”-16N 28 3/4”-16UNF 16 25 1/4”-20UNC 14
H0507 29 25 25 20 1 1/2”-16N 28 3/4”-16UNF 16 25 1/4”-20UNC 14
H0509 29 25 25 20 1 1/2”-16N 28 3/4”-16UNF 16 25 1/4”-20UNC 14
Push Capacity 10 tn (99 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H1001 43 38 – 20 2 1/4”-14UN 30 – 6 40 5/16”-18UNC 14
H1002 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1004 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1006 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1008 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1010 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1012 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
H1014 43 38 35 20 2 1/4”-14UN 30 1”-8UNC 20 40 5/16”-18UNC 14
Push Capacity 15 tn (139 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H1501 51 41 38 20 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1502 51 41 38 20 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1504 51 41 38 20 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1506 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1508 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1510 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1512 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1514 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
H1516 51 41 38 25 2 3/4”-16UN 30 1”-8UNC 25 48 3/8”-16UNC 13
Push Capacity 25 tn (228 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H2501 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2502 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2504 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2506 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2508 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2510 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2512 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
H2514 65 57 50 25 3 5/16”-12N 49 1 1/2”-16UNC 30 59 1/2”-13UNC 19
Push Capacity 30 tn (287 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H3008 73 57 50 50 3 5/16”-12UN 49 1 1/2”-16UNC 30 56 1/2”-13UNC 19
Push Capacity 55 tn (457 kN)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H5502 95 80 70 31 5”-12UN 55 – – 95 1/2”-13UNC 19
H5504 95 80 70 31 5”-12UN 55 – – 95 1/2”-13UNC 19
Push Capacity 55 tn (487 kN) (2 Handles Included)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H5506 95 80 70 31 5”-12UN 55 – – 95 1/2”-13UNC 19
H5510 95 80 70 31 5”-12UN 55 – – 95 1/2”-13UNC 19
H5513 95 80 70 31 5”-12UN 55 – – 95 1/2”-13UNC 19
Push Capacity 75 tn (718 kN) (2 Handles Included)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H7506 115 95 70 30 5 3/4”-12UN 45 – – 100 3/4”-10UNC 22
H7513 115 95 70 30 5 3/4”-12UN 45 – – 100 3/4”-10UNC 22
Push Capacity 100 tn (911 kN) (2 Handles Included)
Item Cylinder Bore Ø C (mm) Plunger Ø E (mm) Saddle Ø F (mm) Base to Inlet Port G (mm) Body Collar Thread H Collar Thread Lenght L (mm) Plunger Internal Thread J Plunger Thread Lenght (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
H10002 130 105 70 38 6 1/4”-12UN 55 – – – – –
H10006 130 105 70 38 6 1/4”-12UN 55 – – – – –
H10010 130 105 70 38 6 1/4”-12UN 55 – – – – –
H10014 130 105 70 38 6 1/4”-12UN 55 – – – – –
