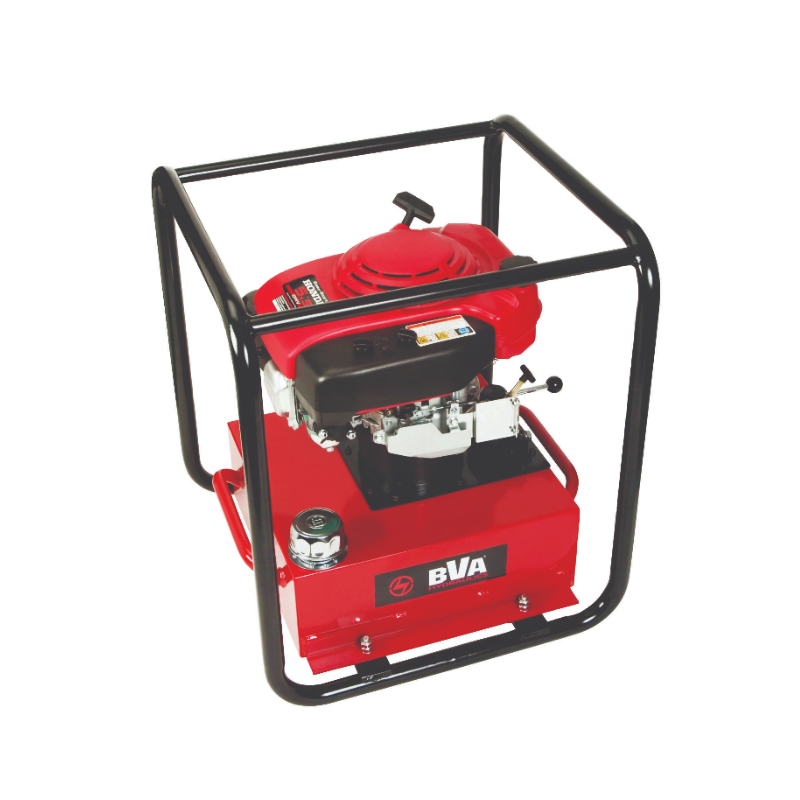

Diesel and Gas Pumps are possible options when using pneumatic or electric power is not possible. BVA pumps are available in both diesel and gas engines – the gas pumps are powered by Honda and the diesel pumps by Hatz engine.
More from BVA Hydraulics >>
| Gas & Diesel Powered Pumps | |||||||||||

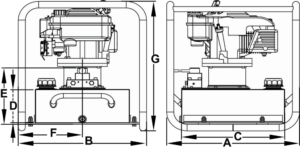

| Item | Stage 1 – Pressure Ratign (bar) | Stage 2 – Pressure Ratign (bar) | Stage 1 – Oil Flow Rate (l/min) | Stage 2- Oil Flow Rate (l/min) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | Weight (kg) |
| PG70M3U05 | 48.3 | 700 | 7.0 | 1.6 | 952 | 469 | 572 | 286 | 208 | 627 | 73.5 |
| PD70M3U05 | 48.3 | 700 | 9.8 | 3.3 | 830 | 593 | 686 | 343 | 304 | 828 | 149.2 |
| PG70M4U05 | 48.3 | 700 | 7.0 | 1.6 | 952 | 469 | 572 | 286 | 208 | 627 | 73.5 |
| PD70M4U05 | 48.3 | 700 | 9.8 | 3.3 | 830 | 593 | 686 | 343 | 304 | 828 | 149.2 |
