Wind Turbine Tensioners

TensionPro’s single-speed and multi-speed tensioners are user-friendly and easy-to-carry tensioning options, especially for the wind power industry.

The two series consisting of low and narrow clamps offer a high-performance and precise solution to guarantee the tightness of bolted joints. Low, single-speed clamps suitable for applications that are cramped in the height direction and narrower, multi-stage clamps suitable for applications that are cramped laterally guarantee versatility in any object.

  • A reliable tensioning solution, especially for tensioning work on wind turbines
  • Designed to withstand heavy loads
  • Lightweight
  • A safety handle is available to protect the connector



More from TensionPro >>

Category:

Description

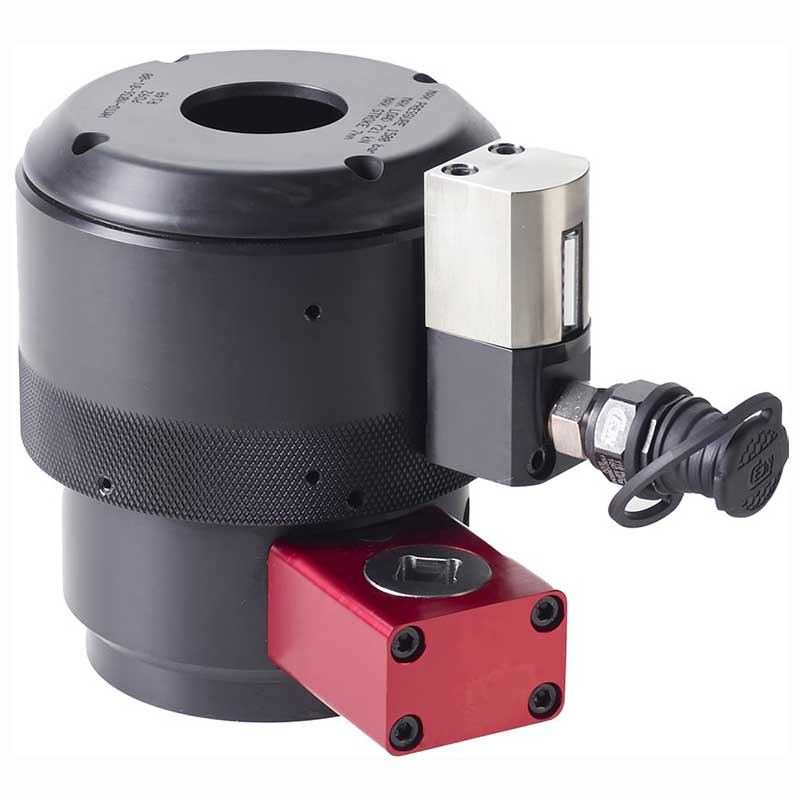

MONO series
Item Model Bolt Size Max. Tensioner Load (kN) Tool OD (mm) Height (mm)
PBDM024-290M MONO-24 M24 290 85 100
PBDM027-380M MONO-27 M27 380 90 105
PBDM030-466M MONO-30 M30 466 100 110
PBDM033-570M MONO-33 M33 570 110 115
PBDM036-678M MONO-36 M36 678 118 120
PBDM039-810M MONO-39 M39 810 124 125
PBDM042-927M MONO-42 M42 927 130 135
PBDM045-1082M MONO-45 M45 1 082 145 140
PBDM048-1223M MONO-48 M48 1 223 150 145
PBDM052-1455M MONO-52 M52 1 455 160 150
PBDM056-1675M MONO-56 M56 1 675 170 155
PBDM060-1950M MONO-60 M60 1 950 178 160
PBDM064-2245M MONO-64 M64 2 245 185 165

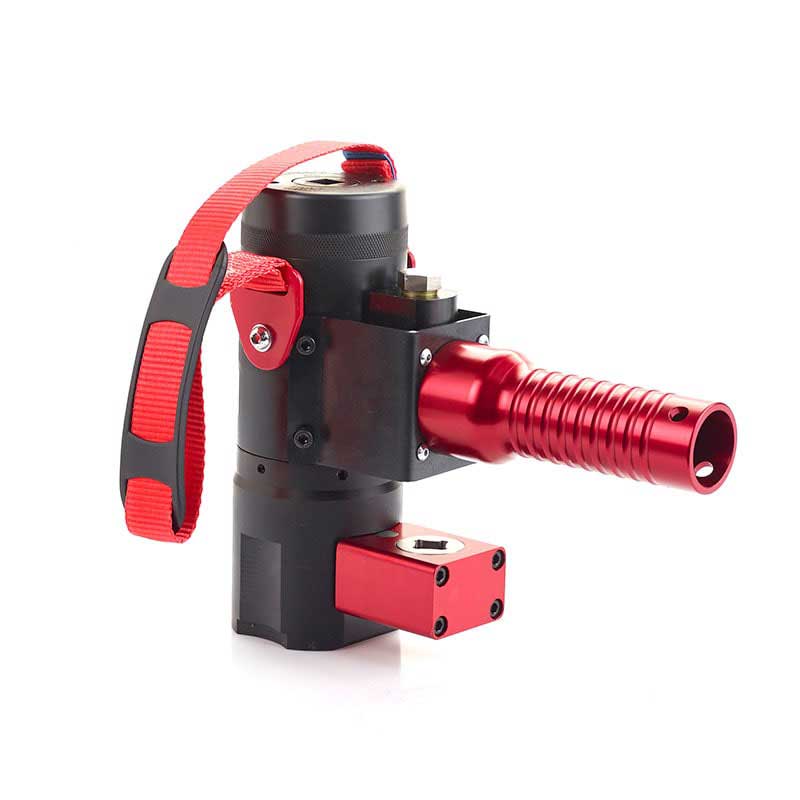

DUO series
Item Model Bolt Size Max. Tensioner Load (kN) Tool OD (mm) Height (mm)
PBDM024-290D DUO-24 M24 290 60 182
PBDM027-380D DUO-27 M27 380 66 192
PBDM030-466D DUO-30 M30 466 73 201
PBDM033-570D DUO-33 M33 570 79 217
PBDM036-678D DUO-36 M36 678 84,5 247
PBDM039-810D DUO-39 M39 810 92 260
PBDM042-928D DUO-42 M42 928 98 270,5
PBDM045-1084D DUO-45 M45 1 084 105 289
PBDM048-1223D DUO-48 M48 1 223 111 311
PBDM052-1455D DUO-52 M52 1 455 129 320
PBDM056-1675D DUO-56 M56 1 675 130 325
PBDM060-1950D DUO-60 M60 1 950 140 345
PBDM064-1253D DUO-64 M64 2 253 150 370,5

Brand

TensionPro

TensionPro logo header TensionPro's tensioners are used in many industrial applications where it is impossible to use traditional hydraulic, pneumatic or electric torque tools. When using tensioners, the bolted connection is subjected to a purely axial force, and friction, lubrication, lateral loads or other variables causing uncertainty cannot thus impair the tightening result. TensionPro tensioners can also be connected into chains of several tools, which means that a common hydraulics can achieve and ensure a perfectly accurate and smooth result. The quality of operations is also indicated by the ISO9001:2015 certificate.

Visit manufacturer's website >>

TensionPro logo

Product Sheet

Product Sheet [PDF] (in Finnish)
