Standard Tensioner

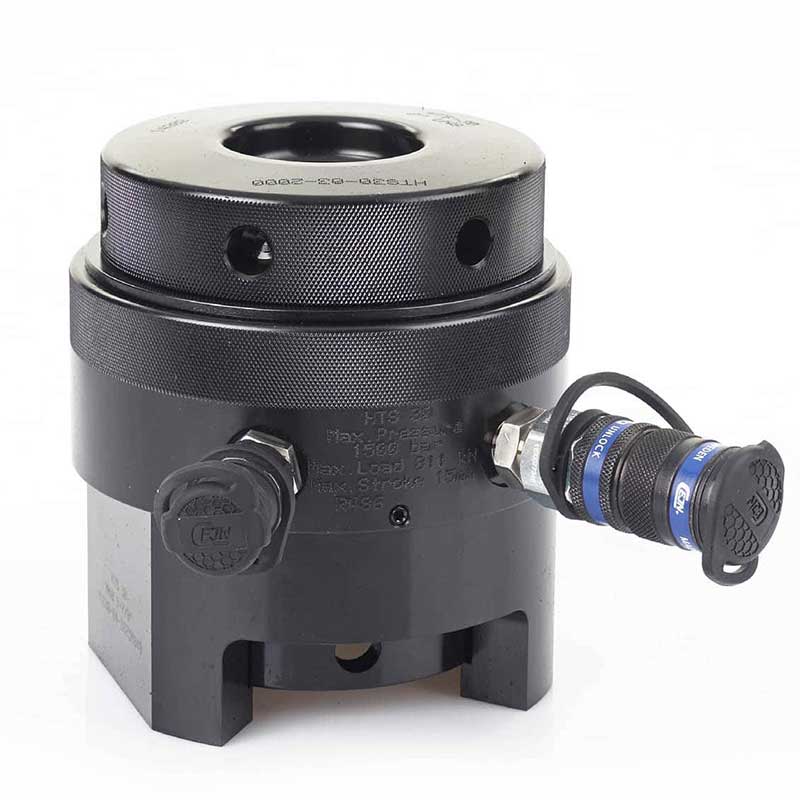

HTS standard tensioner includes eight different cylinder sizes covering bolt sizes from M20 to M125.

Due to their size, the hydraulic tensioner is designed to be as versatile as possible and are suitable for use with most standard flange connections. Above all, tensioners are easy-to-use and safe tools.

1500 bar
15 mm stroke
Modular build
Link Hose System allows linking multiple tensioners to same pump

Description

HTS-Series
Item	Thread Bolt Size mm	Pressure mm²	Maximum Tensioner Load kN	A mm	H mm	B mm	Weight kg
TDI1-228M20*	M20	1 519	228	74	110	27	3
TDI1-228M22*	M22	1 519	228	74	115	27	3
TDI1-228M24*	M24	1 519	228	74	125	30	3.5
TDI1-228M27*	M27	1 519	228	74	130	32	3.5
TDI2-443M30	M30	2 954	443	102	150	30	5
TDI2-443M33	M33	2 954	443	102	150	34	5
TDI2-443M36	M36	2 954	443	102	160	36	5
TDI2-443M39	M39	2 954	443	102	170	38	5
TDI3-811M39	M39	5 406	811	133	175	42	9
TDI3-811M42	M42	5 406	811	133	185	42	9
TDI3-811M45	M45	5 406	811	133	195	44	9
TDI3-811M48	M48	5 406	811	133	205	46	9
TDI3-811M52	M52	5 406	811	133	210	48	9
TDI4-1273M48	M48	8 490	1 273	163	205	50	15
TDI4-1273M52	M52	8 490	1 273	163	215	52	15
TDI4-1273M56	M56	8 490	1 273	163	235	54	15
TDI4-1273M60	M60	8 490	1 273	163	238	54	15
TDI4-1273M64	M64	8 490	1 273	163	254	58	15
TDI5-1829M64	M64	12 196	1 829	193	254	64	25
TDI5-1829M68	M68	12 196	1 829	193	258	72	25
TDI5-1829M72	M72	12 196	1 829	193	258	72	25
TDI5-1829M76	M76	12 196	1 829	193	258	74	25
TDI6-2644M76	M76	17 627	2 644	231	260	76	44
TDI6-2644M80	M80	17 627	2 644	231	264	76	44
TDI6-2644M85	M85	17 627	2 644	231	272	80	44
TDI6-2644M90	M90	17 627	2 644	231	280	90	44
TDI6-2644M95	M95	17 627	2 644	231	300	100	40.5
TDI6-2644M100	M100	17 627	2 644	231	305	105	40.5
TDI7-3600M90	M90	24 000	3 600	275	Dependent on application nut details
TDI7-3600M95	M95	24 000	3 600	275	Dependent on application nut details
TDI7-3600M100	M100	24 000	3 600	275	Dependent on application nut details
TDI7-3600M105	M105	24 000	3 600	275	Dependent on application nut details
TDI8-4650M105	M105	31 000	4 650	315	Dependent on application nut details
TDI8-4650M110	M110	31 000	4 650	315	Dependent on application nut details
TDI8-4650M115	M115	31 000	4 650	315	Dependent on application nut details
TDI8-4650M120	M120	31 000	4 650	315	Dependent on application nut details
TDI8-4650M125	M125	31 000	4 650	315	Dependent on application nut details

*) Maximum stroke is 12mm

Brand

TensionPro

TensionPro's tensioners are used in many industrial applications where it is impossible to use traditional hydraulic, pneumatic or electric torque tools. When using tensioners, the bolted connection is subjected to a purely axial force, and friction, lubrication, lateral loads or other variables causing uncertainty cannot thus impair the tightening result. TensionPro tensioners can also be connected into chains of several tools, which means that a common hydraulics can achieve and ensure a perfectly accurate and smooth result. The quality of operations is also indicated by the ISO9001:2015 certificate.
