Spring Return Tensioners

The spring return tensioners contain seven different cylinder sizes and cover bolt sizes from M24 to M100.

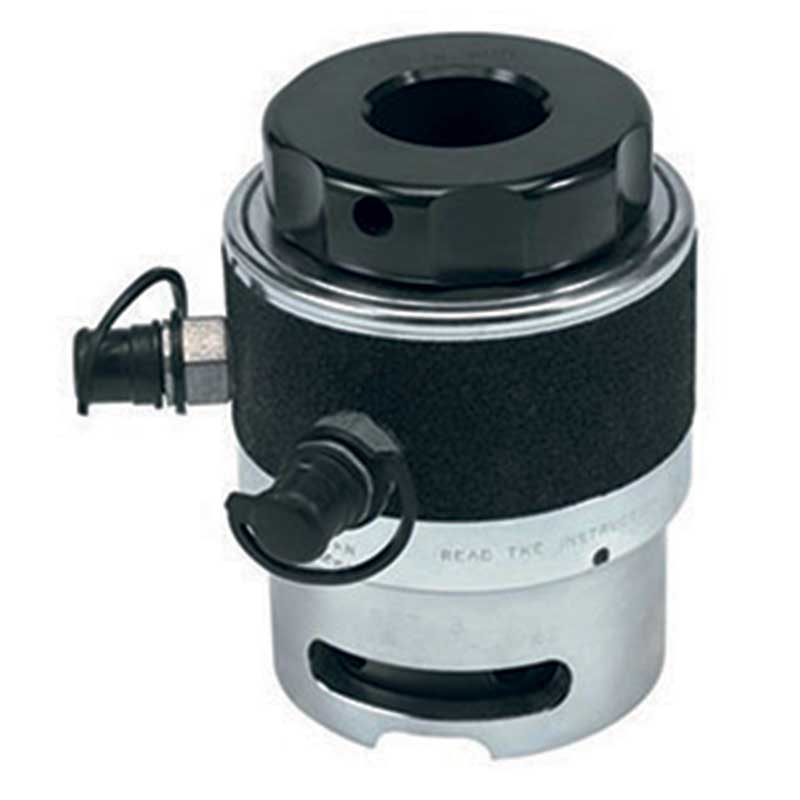

The spring return tensioners of the HTST series are suitable for most flange joints. Thanks to the fast spring-return piston, they are great for places where the number of repetitions increases.

1500 bar
10 mm stroke
Spring return piston
Over-stroke protection

Description

HTST-Sarja
Nimike	Kierrekoko (mm)	Männän pinta-ala (mm²)	Voima (kN)	A (mm)	H (mm)	B (mm)	Paino (kg)
TID1J-280M24	M24	1 867	280	87	178	28	2.7
TID1J-280M27	M27	1 867	280	87	181	30	2.7
TID2J-450M24	M24	3 001	450	103	175	30	4.1
TID2J-450M27	M27	3 001	450	103	181	30	4.1
TID2J-450M30	M30	3 001	450	103	188	30	4.1
TID2J-450M33	M33	3 001	450	103	195	35	4.1
TID2J-450M36	M36	3 001	450	103	195	38	4.1
TID3J-660M33	M33	4 401	660	118	190	35	5.4
TID3J-660M36	M36	4 401	660	118	197	38	5.4
TID3J-660M39	M39	4 401	660	118	203	42	5.4
TID3J-660M42	M42	4 401	660	118	209	42	5.4
TID4J-1000M39	M39	6 668	1 000	140.5	211	42	8.4
TID4J-1000M42	M42	6 668	1 000	140.5	217	45	8.4
TID4J-1000M45	M45	6 668	1 000	140.5	223	52	8.4
TID4J-1000M48	M48	6 668	1 000	140.5	230	52	8.4
TID4J-1000M52	M52	6 668	1 000	140.5	236	52	8.4
TID5J-1500M52	M52	10 003	1 500	175.5	246	52	13.8
TID5J-1500M56	M56	10 003	1 500	175.5	259	63	13.8
TID5J-1500M60	M60	10 003	1 500	175.5	272	68	13.8
TID5J-1500M64	M64	10 003	1 500	175.5	272	68	13.8
TID5J-1500M68	M68	10 003	1 500	175.5	284	70	13.8
TID6J-2500M72	M72	16 671	2 500	219	294	72	23
TID6J-2500M76	M76	16 671	2 500	219	307	80	23
TID6J-2500M80	M80	16 671	2 500	219	320	84	23
TID6J-2500M85	M85	16 671	2 500	219	332	88	23
TID6J-2500M90	M90	16 671	2 500	219	332	88	23
TID7J-3200M90	M90	21 339	3 200	252	339	88	32
TID7J-3200M95	M95	21 339	3 200	252	352	94	32
TID7J-3200M100	M100	21 339	3 200	252	364	114	32

Brand

TensionPro

TensionPro's tensioners are used in many industrial applications where it is impossible to use traditional hydraulic, pneumatic or electric torque tools. When using tensioners, the bolted connection is subjected to a purely axial force, and friction, lubrication, lateral loads or other variables causing uncertainty cannot thus impair the tightening result. TensionPro tensioners can also be connected into chains of several tools, which means that a common hydraulics can achieve and ensure a perfectly accurate and smooth result. The quality of operations is also indicated by the ISO9001:2015 certificate.
