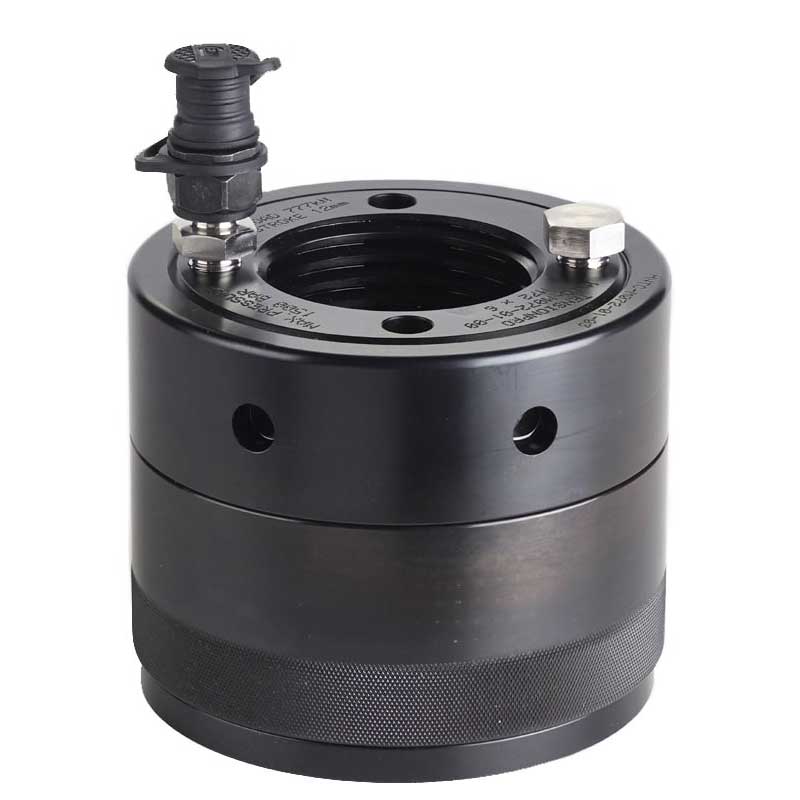

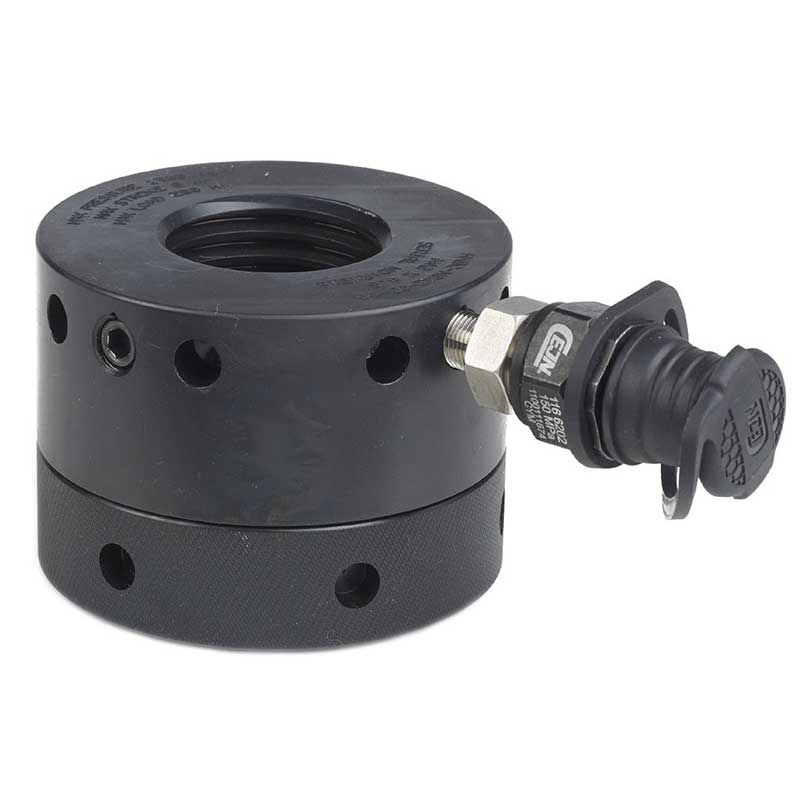

Hydraulic Nuts

Hydraulic nuts replace standard hex nuts in use, offering a fast, accurate and even tightening solution for every bolt connection. The method can be used to tighten several screws at the same time and at the same time ensure a very precise tension of the screws. This is also an unbeatable option for applications where the speed of screw tightening or loosening is important.

  • Long stroke designs
  • Special threads
  • Subsea use
  • Corrosion resistant plating



More from TensionPro >>

Category:

Description

NTD
Item Model Bolt Size Pressure (mm2) Max. Tensioner Load (kN) Tool OD (mm) Height (mm) Stroke (mm) Weight (kg)
NTDM022-152 HNTC-15-M22 M22 1 011 152 57 44 5 0,7
NTDM024-176 HNTC-15-M24 M24 1 175 176 60 45 5 0,8
NTDM027-230 HNTC-15-M27 M27 1 531 230 65 46 5 1
NTDM030-280 HNTC-15-M30 M30 1 869 280 73 48 5 1,3
NTDM033-312 HNTC-15-M33 M33 2 081 312 78 52 6 1,6
NTDM036-368 HNTC-15-M36 M36 2 450 368 85 56 6 2
NTDM039-390 HNTC-15-M39 M39 2 602 390 88 58 6 2,2
NTDM042-448 HNTC-15-M42 M42 2 989 448 93 61 6 2,6
NTDM045-522 HNTC-15-M45 M45 3 483 522 101 64 6 3,2
NTDM048-589 HNTC-15-M48 M48 3 928 589 107 68 8 3,8
NTDM052-703 HNTC-15-M52 M52 4 688 703 116 70 8 4,6
NTDM056-812 HNTC-15-M56 M56 5 413 812 125 72 8 5,5
NTDM060-945 HNTC-15-M60 M60 6 299 945 134 74 8 6,5
NTDM064-1070 HNTC-15-M64 M64 7 136 1 070 142 80 8 7,9
NTDM068-1222 HNTC-15-M68 M68 8 147 1 222 152 84 10 9,5
NTDM072-1384 HNTC-15-M72 M72 9 226 1 384 161 88 10 11,2
NTDM080-1738 HNTC-15-M80 M80 11 584 1 738 179 92 10 14,5
NTDM090-2236 HNTC-15-M90 M90 14 909 2 236 203 96 10 19,5
NTDM095-2509 HNTC-15-M95 M95 16 728 2 509 215 100 10 22,8
NTDM0100-2798 HNTC-15-M100 M100 18 652 2 798 226 105 15 26,4
NTDM0110-3422 HNTC-15-M110 M110 22 815 3 422 250 110 15 34
NTDM0125-4477 HNTC-15-M125 M125 29 844 4 477 285 125 15 50,2
NTDM0140-5672 HNTC-15-M140 M140 37 815 5 672 321 140 15 71,6
NTDM0150-6548 HNTC-15-M150 M150 43 653 6 548 345 150 15 88,7
NBD
Item Model Bolt Size Max. Tensioner Load (kN) Tool OD (mm) Height (mm) Stroke (mm)
NBDM022-190 HNBC-M22 M22 190 54 48 5
NBDM024-205 HNBC-M24 M24 205 57 48 5
NBDM027-220 HNBC-M27 M27 220 60 48 5
NBDM030-265 HNBC-M30 M30 265 67 51 5
NBDM033-265 HNBC-M33 M33 265 67 51 5
NBDM036-325 HNBC-M36 M36 325 73 54 6
NBDM039-373 HNBC-M39 M39 373 78 56 6
NBDM042-424 HNBC-M42 M42 424 83 58 6
NBDM045-445 HNBC-M45 M45 445 86 60 6
NBDM048-523 HNBC-M48 M48 523 93 70 8
NBDM052-629 HNBC-M52 M52 629 102 72 8
NBDM056-781 HNBC-M56 M56 781 124 75 8
NBDM064-941 HNBC-M64 M64 941 124 86 8
NBDM068-1042 HNBC-M68 M68 1 042 131 90 8
NBDM072-1246 HNBC-M72 M72 1 246 144 94 10
NBDM080-1607 HNBC-M80 M80 1 607 159 104 10
NBDM090-2207 HNBC-M90 M90 2 207 176 114 10
NBDM095-2160 HNBC-M95 M95 2 160 182 118 10
NBDM0100-2466 HNBC-M100 M100 2 466 200 124 15
NBDM0110-2814 HNBC-M110 M110 2 814 215 136 15
NBDM0125-3820 HNBC-M125 M125 3 820 244 148 15
NBDM0140-4954 HNBC-M140 M140 4 954 272 164 15
NBDM0150-5655 HNBC-M150 M150 5 655 290 164 15

Brand

TensionPro

TensionPro logo header TensionPro's tensioners are used in many industrial applications where it is impossible to use traditional hydraulic, pneumatic or electric torque tools. When using tensioners, the bolted connection is subjected to a purely axial force, and friction, lubrication, lateral loads or other variables causing uncertainty cannot thus impair the tightening result. TensionPro tensioners can also be connected into chains of several tools, which means that a common hydraulics can achieve and ensure a perfectly accurate and smooth result. The quality of operations is also indicated by the ISO9001:2015 certificate.
