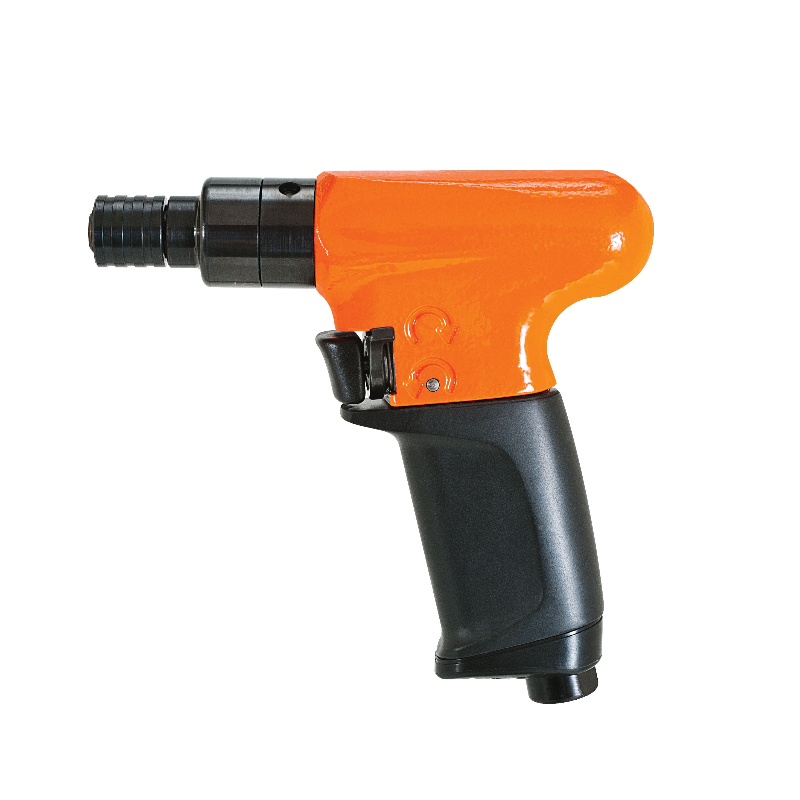

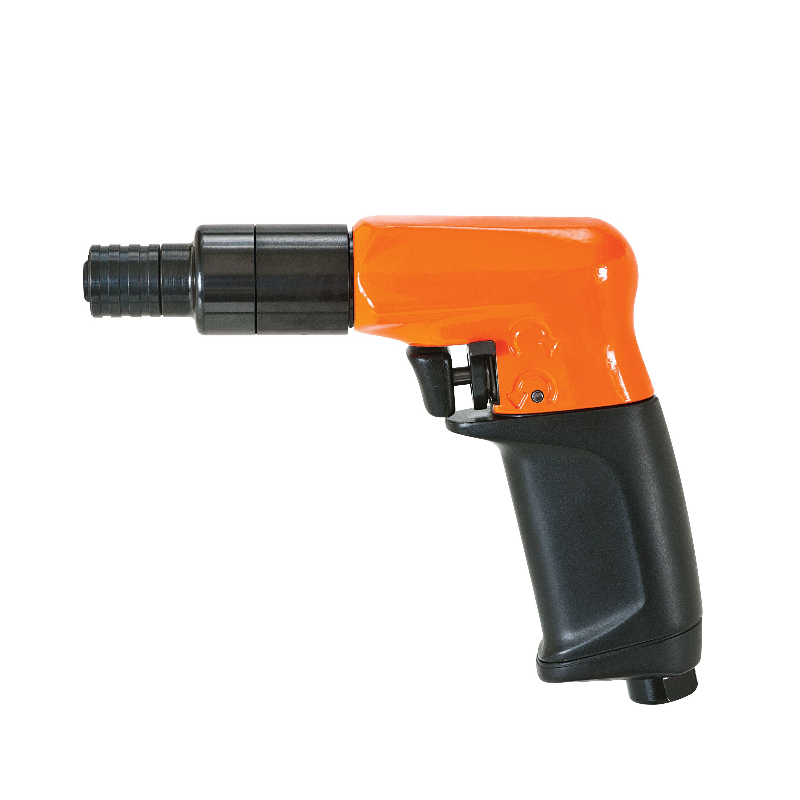

Pistol Grip Screwdrivers with Stall

Cleco’s pistol grip pneumatic wrenches are an excellent choice for many manufacturing applications. Stall type tools doesn’t use a clutch but rather the output spindle is coupled to the last stage of gearing. As joint tightens up, the nutrunner stalls when air pressure provide is not sufficient enough to make it rotate. Torque output from a stall tool may be controlled within fairly reasonable limits with an air pressure regulator.

Lightweight and ergonomic design
Two different handle sizes for enhanced versatility
Reversible – suitable for both left and right handed users
1/4” hex quick change drive

Description

19 series (T-handle, trigger start)
Item	Max. Torque Range (Nm)	Free Speed (rpm)	Lenght (mm)	Weight (kg)	Air Consumption (m3/min)	Air Inlet NPT
19TTS02Q	2,1	2 800	147,3	0,54	0,31	1/4”
19TTS03Q	2,9	1 900	154,9	0,54	0,31	1/4”
19TTS04Q	4,5	1 100	147,3	0,54	0,31	1/4”
19TTS05Q	5,1	660	154,9	0,54	0,31	1/4”

19 series (P-handle, trigger start)
Item	Max. Torque Range (Nm)	Free Speed (rpm)	Lenght (mm)	Weight (kg)	Air Consumption (m3/min)	Air Inlet NPT
19PTS02Q	2,1	2 800	149,9	0,53	0,31	1/4”
19PTS03Q	2,9	1 900	154,9	0,53	0,31	1/4”
19PTS04Q	4,5	1 100	149,9	0,53	0,31	1/4”
19PTS05Q	5,1	660	154,9	0,53	0,31	1/4”

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
