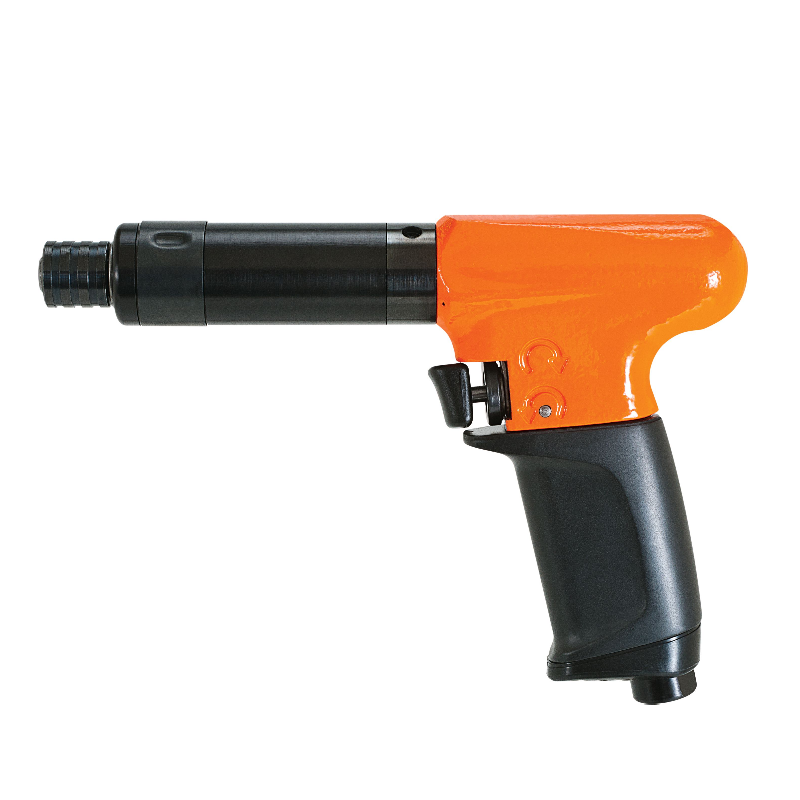

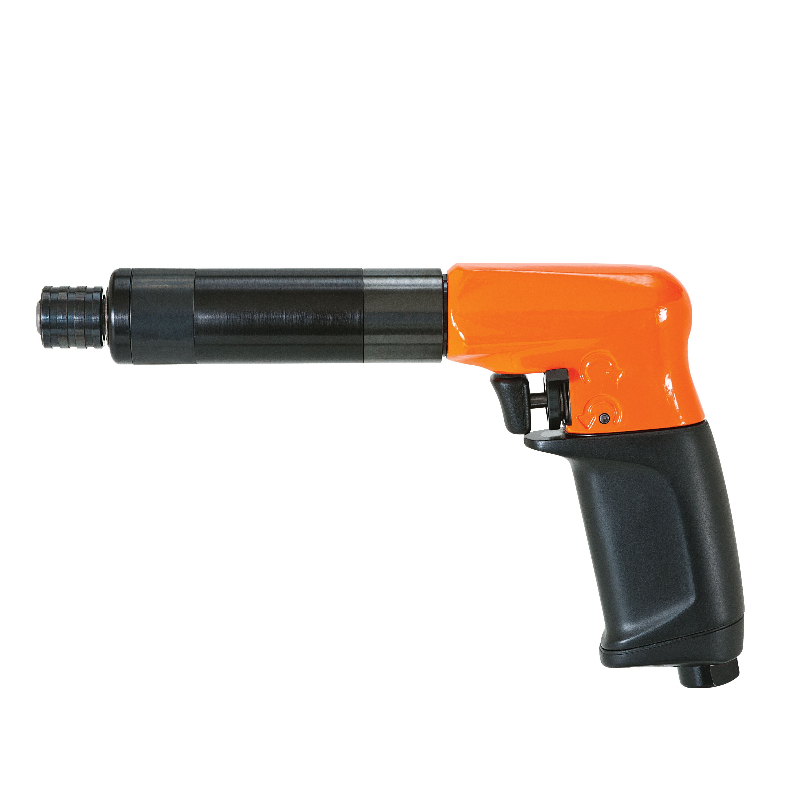

Pistol Grip Screwdrivers with Clutch

Cleco’s pistol grip pneumatic wrenches are an excellent choice for many manufacturing and maintenance applications. The advanced Clecomatic clutch “slips” which allows an internal mechanism to seal off air to the air motor, shutting off the tool at the user-adjusted preset torque level. This type of torque control allows maximum RPM from the tool for increased productivity. Since the tool doesn’t dwell on the fastener as with a stall tool, tool wear and fatigue to the operator is reduced.

  • Lightweight and ergonomic design
  • Two different handle sizes for enhanced versatility
  • Reversible – suitable for both left and right handed users
  • 1/4” hex quick change drive



More from Cleco >>

Description

19  series (T-handle, push-to-start, clecomatic clutch)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Air Consumption (m3/min) Air Inlet NPT
19TCA02Q 0,6 – 2,1 2 800 203,2 0,65 0,31 1/4”
19TCA03Q 0,6 – 2,9 1 900 208,3 0,7 0,31 1/4”
19TCA04Q 1,1 – 4,5 1 100 203,2 0,7 0,31 1/4”
19TCA05Q 1,1 – 5,1 660 213,4 0,7 0,31 1/4”
19TCA06Q 1,1 – 5,1 260 213,4 0,7 0,31 1/4”
19TCA07Q 1,7 – 6,8 660 213,4 0,7 0,31 1/4”
19TCA09Q 1,7 – 8,9 470 236,2 0,78 0,31 1/4”
19 series (T-handle, clecomatic clutch)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Air Consumption (m3/min) Air Inlet NPT
19TTA02Q 0,6 – 2,1 2 800 200,7 0,65 0,31 1/4”
19TTA03Q 0,6 – 2,9 1 900 205,7 0,7 0,31 1/4”
19TTA04Q 1,1 – 4,5 1 100 200,7 0,7 0,31 1/4”
19TTA05Q 1,1 – 5,1 660 210,8 0,7 0,31 1/4”
19TTA06Q 1,1 – 5,1 260 210,8 0,7 0,31 1/4”
19TTA07Q 1,7 – 6,8 660 210,8 0,7 0,31 1/4”
19TTA09Q 1,7 – 8,9 470 236,2 0,78 0,31 1/4”
19TTA15Q 5,1 – 14,7 260 243,8 0,88 0,31 1/4”
19 series (P-handle, push-to-start, clecomatic clutch)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Air Consumption (m3/min) Air Inlet NPT
19PCA02Q 0,6 – 2,1 2 800 205,7 0,65 0,31 1/4”
19PCA03Q 0,6 – 2,9 1 900 210,8 0,68 0,31 1/4”
19PCA04Q 1,1 – 4,5 1 100 205,7 0,64 0,31 1/4”
19PCA05Q 1,1 – 5,1 660 215,9 0,68 0,31 1/4”
19PCA06Q 1,1 – 5,1 260 215,9 0,68 0,31 1/4”
19PCA07Q 1,7 – 6,8 660 215,9 0,68 0,31 1/4”
19PCA09Q 1,7 – 8,9 470 248,9 0,75 0,31 1/4”
19 series (P-handle, clecomatic clutch)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Air Consumption (m3/min) Air Inlet NPT
19PTA02Q 0,6 – 2,1 2 800 203,2 0,64 0,31 1/4”
19PTA03Q 0,6 – 2,9 1 900 208,3 0,68 0,31 1/4”
19PTA04Q 1,1 – 4,5 1 100 203,2 0,64 0,31 1/4”
19PTA05Q 1,1 – 5,1 660 213,4 0,68 0,31 1/4”
19PTA06Q 1,1 – 5,1 260 213,4 0,68 0,31 1/4”
19PTA07Q 1,7 – 6,8 660 213,4 0,68 0,31 1/4”
19PTA09Q 1,7 – 8,9 470 248,9 0,75 0,31 1/4”

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>

Product Sheet

Product Sheet (in Finnish) [PDF]
