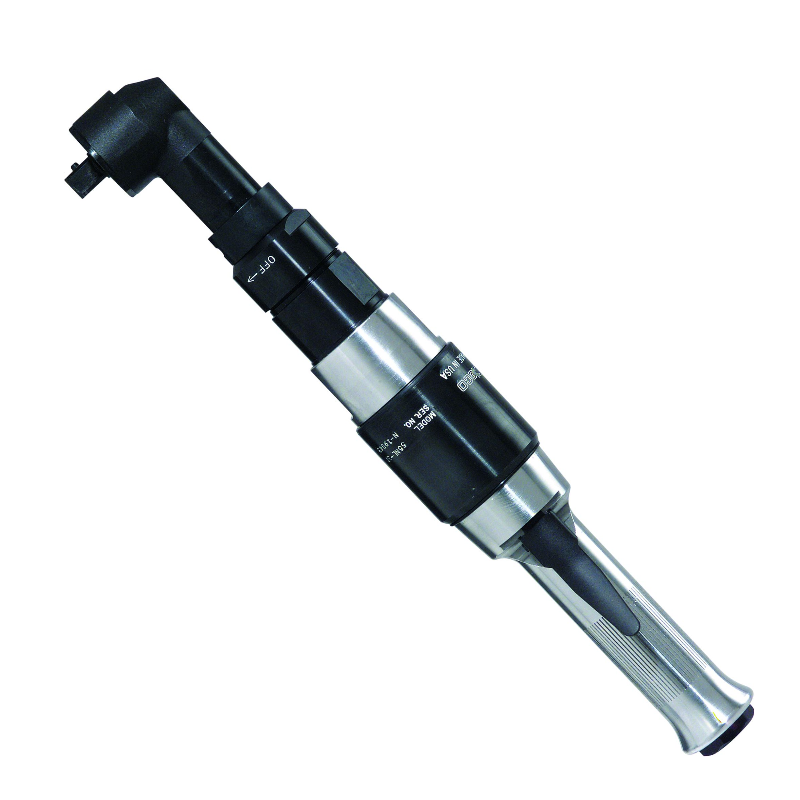

Angle Nutrunners with Stall

The wide selection of Cleco’s top quality angle nutrunners offers the perfect tool for any specific job application. Stall type tools don’t use a clutch but rather the output spindle is coupled to the last stage of gearing. As joint tightens up, the nutrunner stalls when air pressure provide is not sufficient to make it rotate. Torque output from a stall tool may be controlled within reasonable limits with an air pressure regulator.

Industry-leading torque accuracy and repeatability
Indexable angle head for added versatility
Lightweight and ergonomic design
Easy to service and calibrate
Durable grip material tested to withstand industrial chemicals
Innovative and reliable air motor technology
Durable and long-lasting bevel gears

Description

19 series
Item	Torque Range (Nm)	Free Speed (rpm)	Length (mm)	Weight (kg)	Head Height (mm)	Side to Center (mm)	Drive	Air Consumption (m3/min)	Air Inlet NPT
19RAS03AM2	3,2	1 700	289,6	0,59	26,9	9,14	1/4″ SQ	0,31	1/8”
19RAS04AH2	3,6	1 500	284,5	0,64	30,2	12,7	1/4″ SQ	0,31	1/8”
19RAS05AM2	5,2	850	269,2	0,54	26,9	9,14	1/4″ SQ	0,31	1/8”
19RAS06AH3	6,2	880	279,4	0,59	30,2	12,7	3/8″ SQ	0,31	1/8”

55 & 75 series (reversible)
Item	Torque Range (Nm)	Free Speed (rpm)	Length (mm)	Weight (kg)	Head Height (mm)	Side to Center (mm)	Drive	Air Consumption (m3/min)	Air Inlet NPT
55RNL-7T-4	55,6	490	408,9	2,78	41,4	18,3	1/2″ SQ	2,00	1/2”
55RNL-4T-4	92,0	290	424,2	2,95	41,4	18,3	1/2″ SQ	2,00	1/2”
55RNL-3T-4	135,0	195	424,2	2,95	41,4	18,3	1/2″ SQ	2,00	1/2”
55RNL-2T-4	176,0	145	424,2	2,95	41,4	18,3	1/2″ SQ	2,00	1/2”
75RNL-3V-4	210,0	190	492,8	5,16	64,0	27,7	1/2″ SQ	1,98	1/2”
75RNL-2V-4	278,0	140	492,8	5,16	63,5	27,7	1/2″ SQ	1,98	1/2”
75RNL-3X-6	330,0	120	510,5	5,95	69,9	36,6	3/4″ SQ	1,98	1/2”
75RNL-2X-6	440,0	90	510,5	5,95	69,9	36,6	3/4″ SQ	1,98	1/2”
75RNL-4V-4	142,0	280	492,8	5,16	64,0	27,7	1/2″ SQ	1,98	1/2”

55 & 75 series (non-reversible)
Item	Torque Range (Nm)	Free Speed (rpm)	Length (mm)	Weight (kg)	Head Height (mm)	Side to Center (mm)	Drive	Air Consumption (m3/min)	Air Inlet NPT
55NL-2T-4	190,0	210	424,2	2,89	50,0	22,4	1/2″ SQ	2,00	1/2”
55NL-3T-4	149,0	290	424,2	2,89	50,0	22,4	1/2″ SQ	2,00	1/2”

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
