Inline Screwdrivers with Clutch

Cleco’s pneumatic inline screwdrivers offer usability, reliability and repeatability in the same package. The advanced Clecomatic clutch “slips” which allows an internal mechanism to seal off air to the air motor, shutting off the tool at the user-adjusted preset torque level. This type of torque control allows maximum RPM from the tool for increased productivity. Since the tool doesn’t dwell on the fastener as with a stall tool, tool wear and fatigue to the operator is reduced.

  • Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
  • Lightweight and ergonomic design
  • External torque control – easy to service and calibrate
  • Durable grip material tested to withstand industrial chemicals
  • Innovative and reliable air motor technology
  • 55 series models include a reaction arm



More from Cleco >>

Description

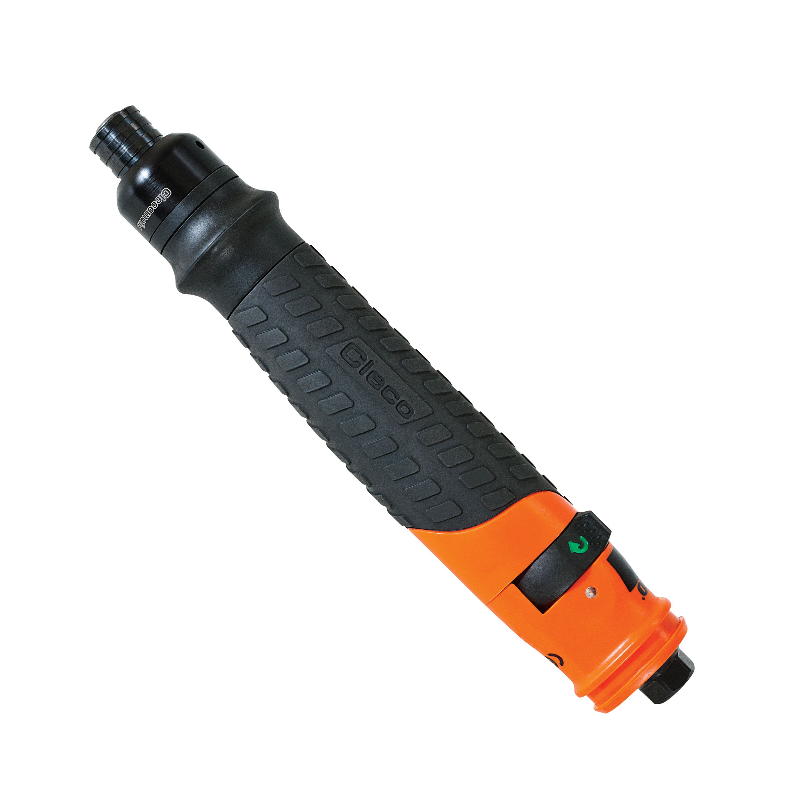

19 series (push-to-start, push button reverse)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Drive Air Consumption (m3/min) Air Inlet NPT
19BPA02Q 0,6 – 2,1 2 300 236,2 0,64 1/4” QC 0,31 1/8”
19BPA03B 0,6 – 2,9 2 300 251,5 0,64 BIT & FINDER 0,31 1/8”
19BPA03Q 0,6 – 2,9 1 600 236,2 0,64 1/4” QC 0,31 1/8”
19BPA04B 1,1 – 4,5 1 600 251,5 0,64 BIT & FINDER 0,31 1/8”
19BPA04Q 1,1 – 4,5 920 231,1 0,59 1/4” QC 0,31 1/8”
19BPA05B 1,1 – 5,1 920 251,5 0,59 BIT & FINDER 0,31 1/8”
19BPA05Q 1,1 – 5,1 560 241,3 0,68 1/4” QC 0,31 1/8”
19BPA06B 1,1 – 5,1 560 251,5 0,68 BIT & FINDER 0,31 1/8”
19BPA06Q 1,1 – 5,1 220 241,3 0,68 1/4” QC 0,31 1/8”

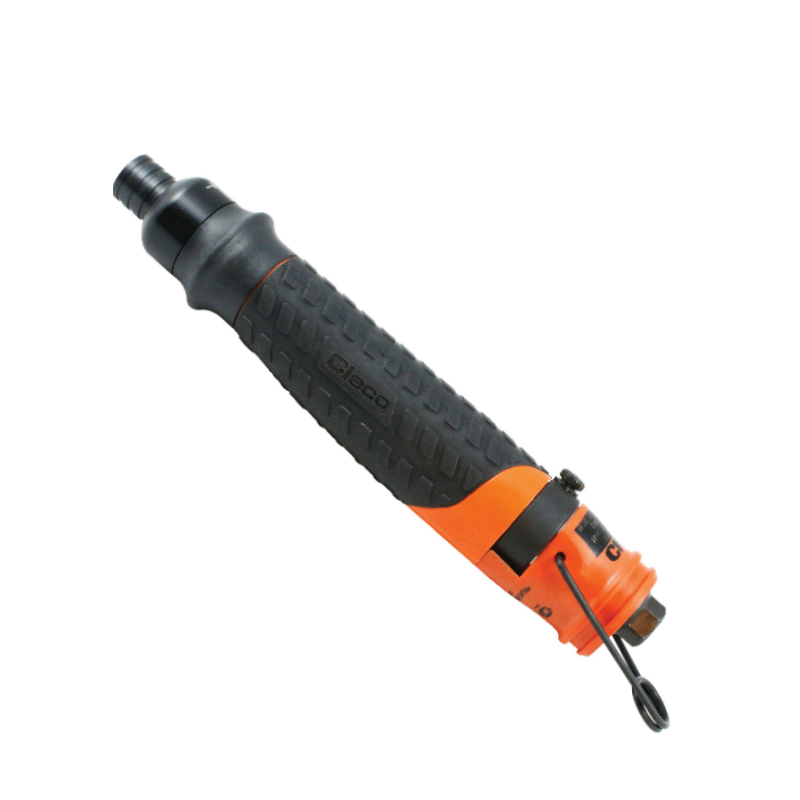

19 series (Push-to-start, collar reverse)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Drive Air Consumption (m3/min) Air Inlet NPT
19SPA02B 0,6 – 2,1 2 800 246,4 0,64 BIT & FINDER 0,31 1/8”
19SPA02Q 0,6 – 2,1 2 800 231,1 0,64 1/4” QC 0,31 1/8”
19SPA03B 0,6 – 2,9 1 900 251,5 0,64 BIT & FINDER 0,31 1/8”
19SPA03Q 0,6 – 2,9 1 900 236,2 0,64 1/4” QC 0,31 1/8”
19SPA04B 1,1 – 4,5 1 100 246,4 0,59 BIT & FINDER 0,31 1/8”
19SPA04Q 1,1 – 4,5 1 100 231,1 0,59 1/4” QC 0,31 1/8”
19SPA05B 1,1 – 5,1 660 256,5 0,68 BIT & FINDER 0,31 1/8”
19SPA05Q 1,1 – 5,1 660 241,3 0,68 1/4” QC 0,31 1/8”
19SPA06Q 1,1 – 5,1 260 241,3 0,68 1/4” QC 0,31 1/8”

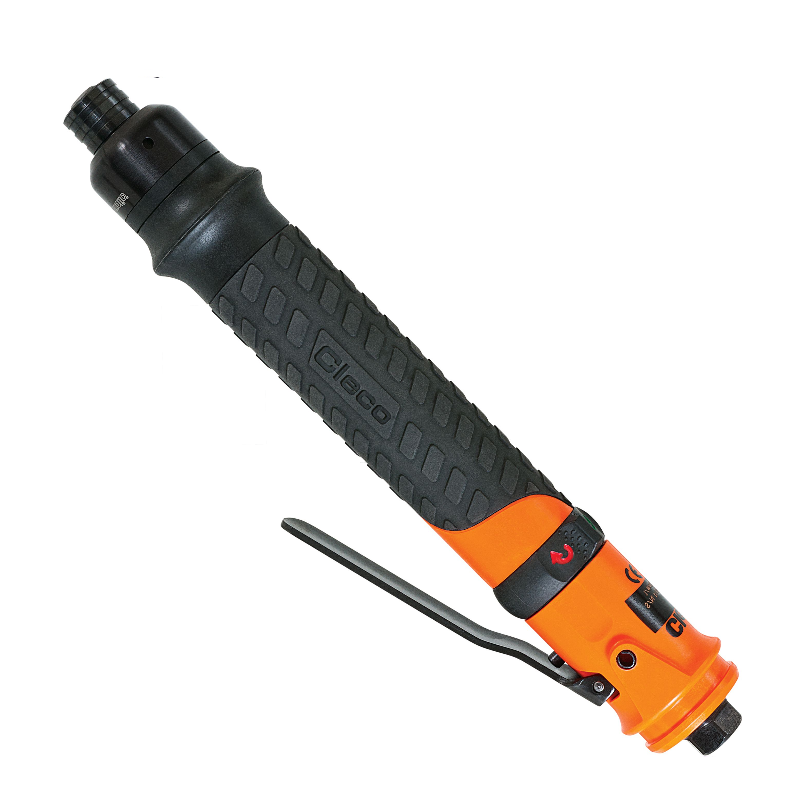

19 series (lever push-to-start, collar reverse)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Drive Air Consumption (m3/min) Air Inlet NPT
19SCA02Q 0,6 – 2,1 2 800 248,9 0,68 1/4” QC 0,31 1/8”
19SCA03Q 0,6 – 2,9 1 900 254 0,68 1/4” QC 0,31 1/8”
19SCA04Q 1,1 – 4,5 1 100 248,9 0,68 1/4” QC 0,31 1/8”
19SCA05Q 1,1 – 5,1 660 259,1 0,73 1/4” QC 0,31 1/8”
19SCA06Q 1,1 – 5,1 260 259,1 0,73 1/4” QC 0,31 1/8”

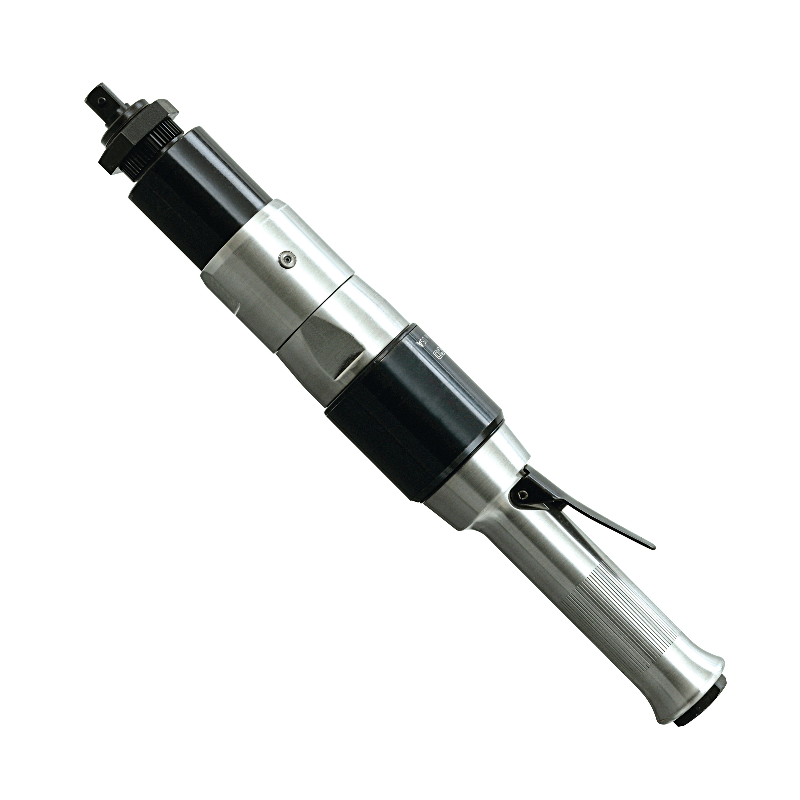

55 series (push-to-start, collar reverse)
Item Torque Range (Nm) Free Speed (rpm) Lenght (mm) Weight (kg) Drive Air Consumption (m3/min) Air Inlet NPT
55RNAL-2-4 46 – 91 270 408,9 2,95 1/2” SQ 1,56 1/2”
55RNAL-3-4 34 – 69 370 408,9 2,95 1/2” SQ 1,56 1/2”

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
