Pre-set Click-Type Torque Wrenches

P, THP & FTHP SERIES

The Norbar Professional series torque wrenches combine excellent repeatability with a durable and ease of use design. Designed to meet the requirements of professional usage, clicking type torque wrenches exceed the requirements set by ISO6789.2017 standard for torque ranges with an accuracy that is better than +/-3%. Production type torque wrenches are especially designed for the production environment where they will be set and then dedicated to a particular application. The wrenches are delivered with a traceable calibration certificate and in own robust carry case.

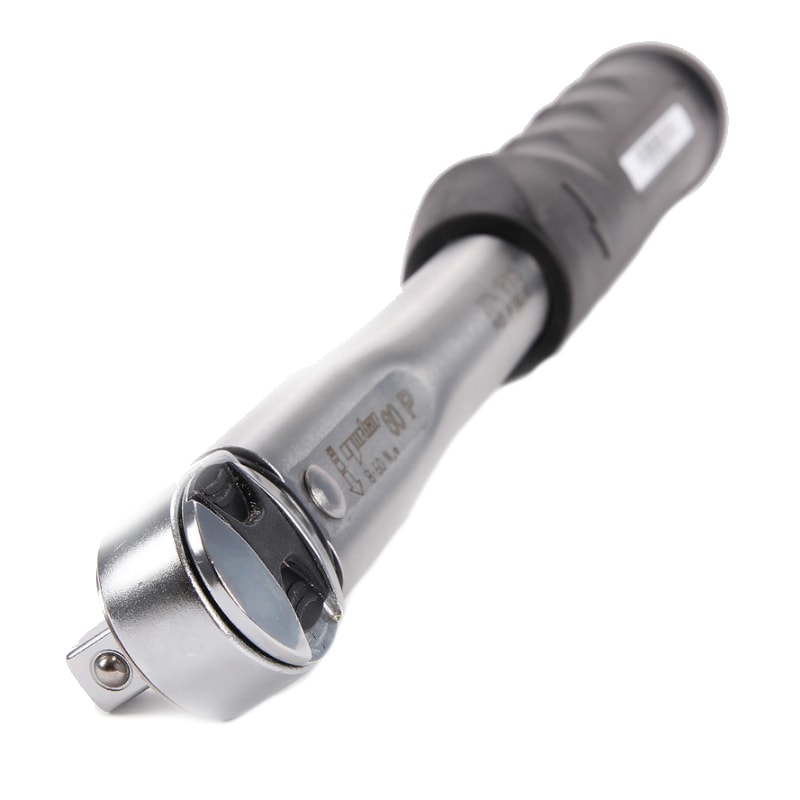

Ratchet models are available with either change of direction knob on top of ratchet (automotive) or with a push through square drive (industrial)
Torque handles are available either as spigot type (16mm) or as female ended (9 x 12mm / 14 x 18mm) – Quick change of end fitting with easy locking knob
The push through square drive is not only a robust design but allows the wrench to be used for torque control in both the clockwise and anti-clockwise directions

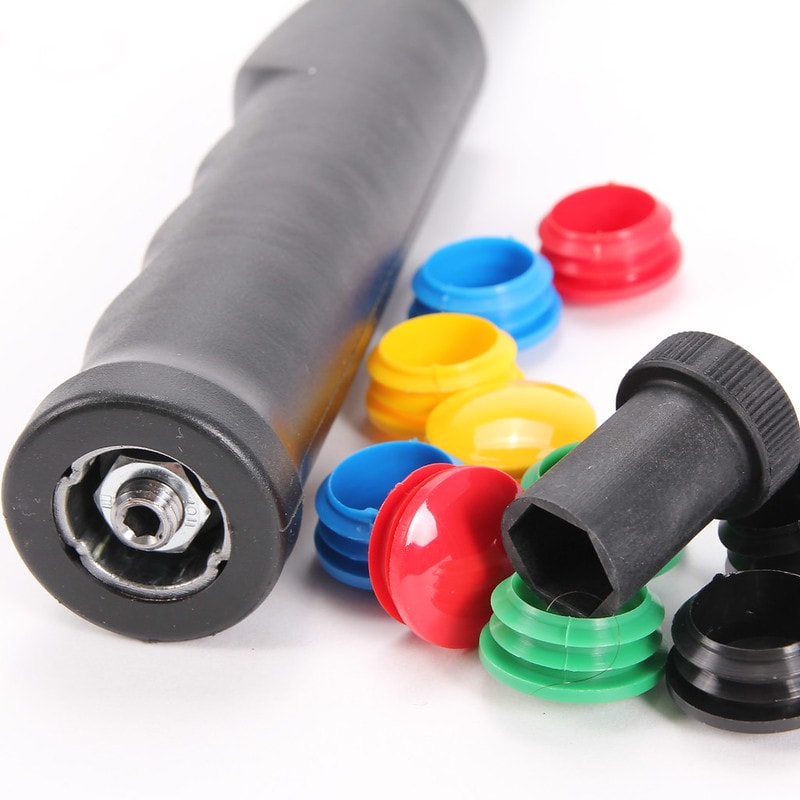

Soft feel handle provides excellent grip even in oily conditions

Description

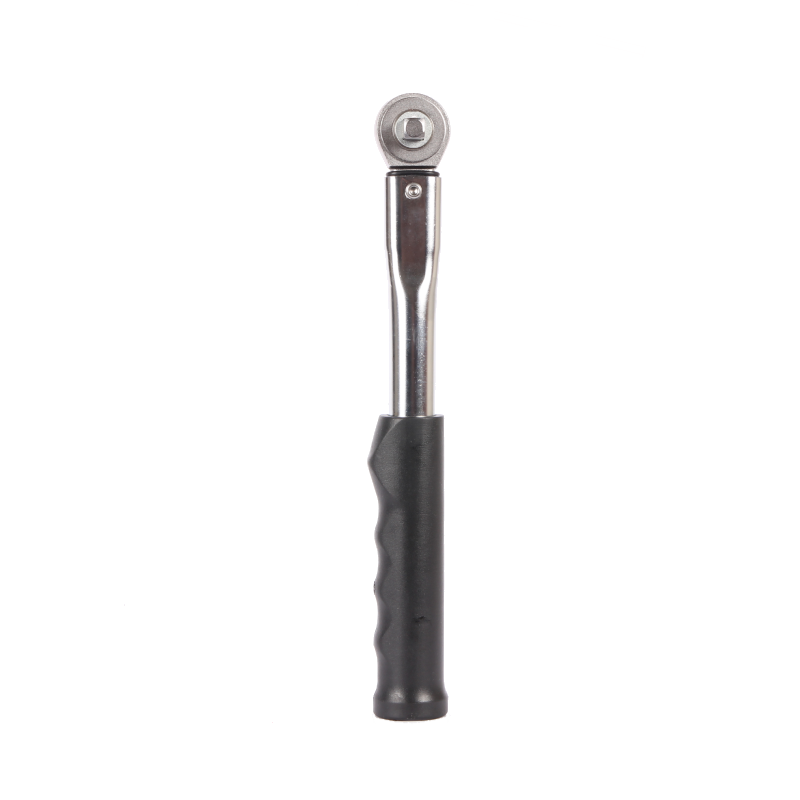

With Reversible Ratchet
Item	Model	Drive	Torque Range (Nm)	Ratchet Ø (mm)	Lenght (mm)	Weight (kg)
11164	60 P	3/8″	8 – 60	30	289	0,6
11171	60 P	1/2″	8 – 60	30	289	0,6
11138	100 P	3/8″	20 – 100	30	329	0,7
11139	100 P	1/2″	20 – 100	30	329	0,7
11140	200 P	1/2″	40 – 200	42	425	1,0

With Push-Through Ratchet
Item	Model	Drive	Torque Range (Nm)	Ratchet Ø (mm)	Lenght (mm)	Weight (kg)
13051	60 P	3/8″	8 – 60	36	295	0,6
13052	60 P	1/2″	8 – 60	42	301	0,7
13053	100 P	3/8″	20 – 100	36	335	0,7
13054	100 P	1/2″	20 – 100	42	342	0,7
13055	200 P	1/2″	40 – 200	45	425	1,0
13057	300 P	1/2”	60 – 300	54	668	1,2
13056	400 P	3/4″	80 – 400	52	675	2,0
14039	650 P	3/4″	130 – 650	61	848	4,0
14017	800 P	3/4″	200 – 800	75	1 030*	5,2
14018	800 P	1″	200 – 800	75	1 030*	5,2
14007	1000 P	3/4″	300 – 1 000	75	1 238*	5,7
14008	1000 P	1″	300 – 1 000	75	1 238*	5,7
14009	1500 P	3/4″	500 – 1 500	75	1 563*	6,7
14010	1500 P	1″	500 – 1 500	75	1 563*	6,7

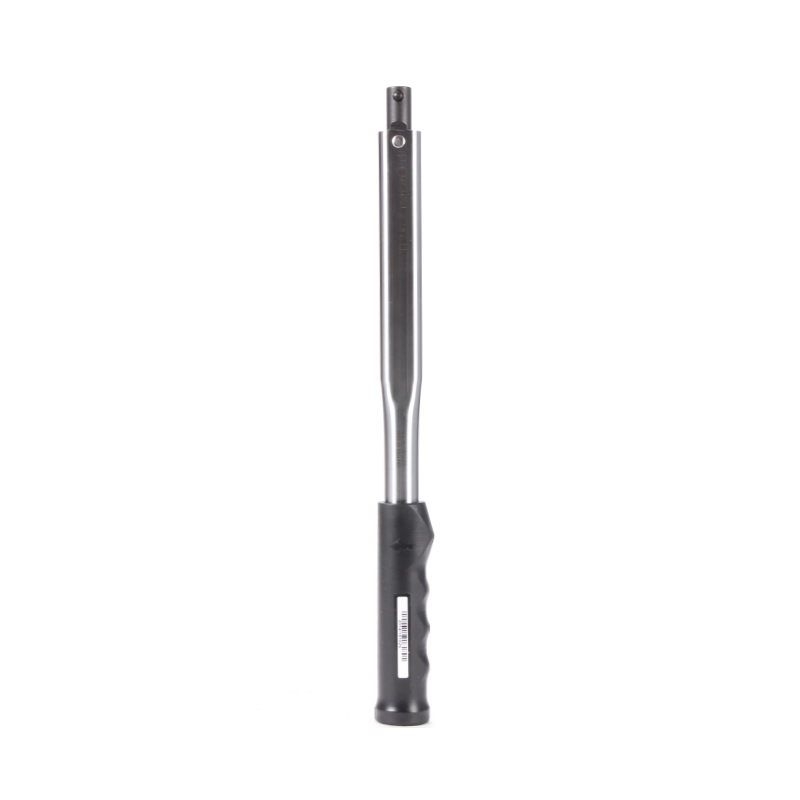

With Spigot
Item	Model	Drive	Torque Range (Nm)	Lenght (mm)	Weight (kg)
11167	60 THP	16 mm	8 – 60	283	0,6
11143	100 THP	16 mm	20 – 100	324	0,6
11144	200 THP	16 mm	40 – 200	405	0,8
11117	300 THP	16 mm	60 – 300	643	1,1
14042	650 THP	22 mm	130 – 650	800	3,6

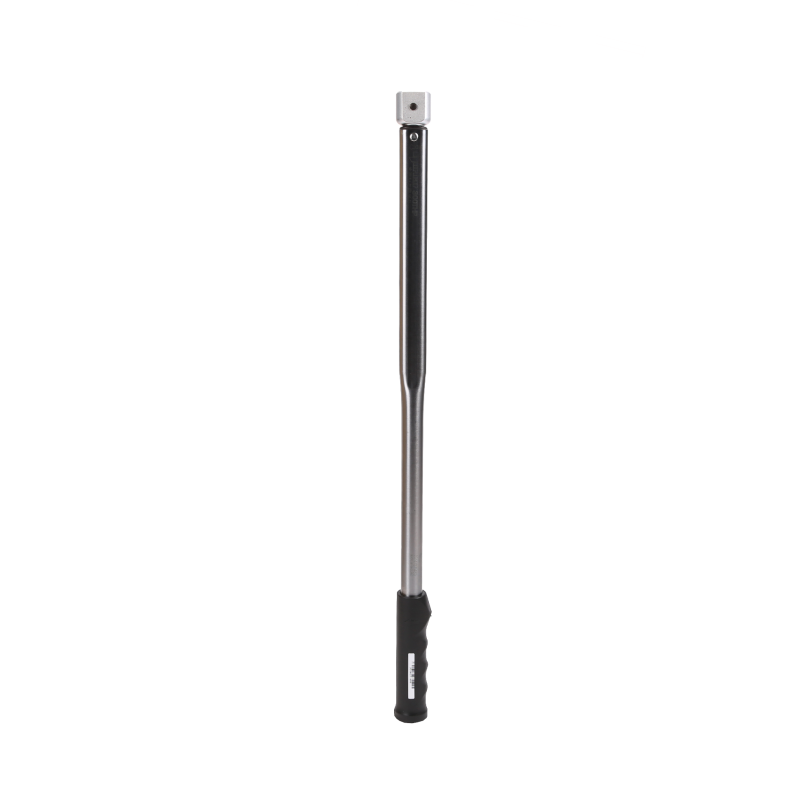

With Female End Fittings
Item	Model	Drive	Torque Range (Nm)	Lenght (mm)	Weight (kg)
11170	60 FTHP	9 x 12 mm	8 – 60	286	0,6
11150	100 FTHP	9 x 12 mm	20 – 100	326	0,6
11151	200 FTHP	9 x 12 mm	40 – 200	403	0,8
11152	200 FTHP	14 x 18 mm	40 – 200	414	0,8
11153	300 FTHP	14 x 18 mm	60 – 300	534	1,1
13068	400 FTHP	14 x 18 mm	80 – 400	652	1,8
14043	650 FTHP	14 x 18 mm	130 – 650	823	3,6

*) With an extension bar (500 mm).
