Break-Back Torque Wrenches

ATB & TBN SERIES

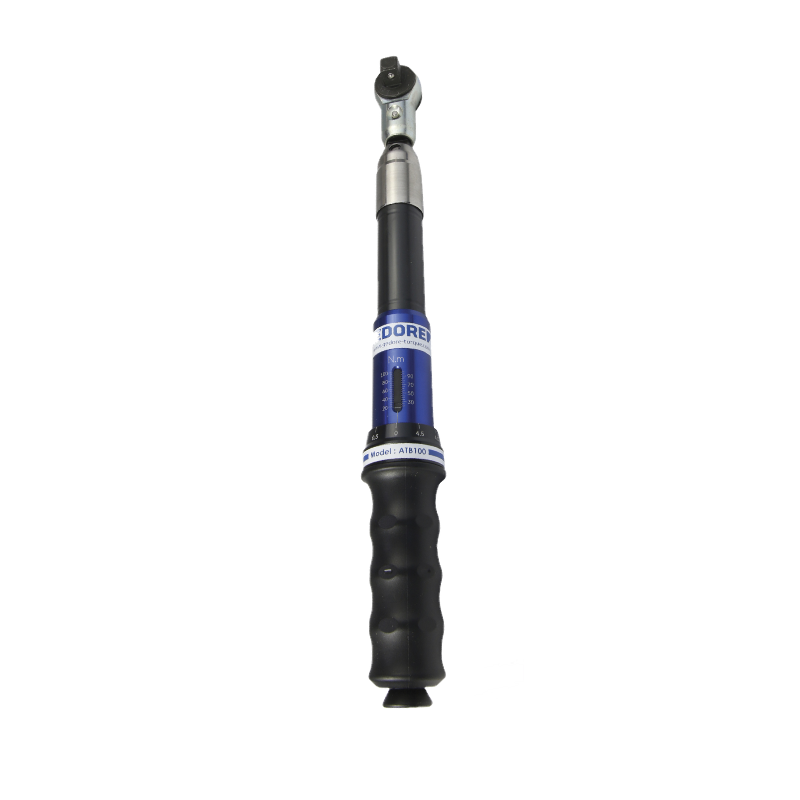

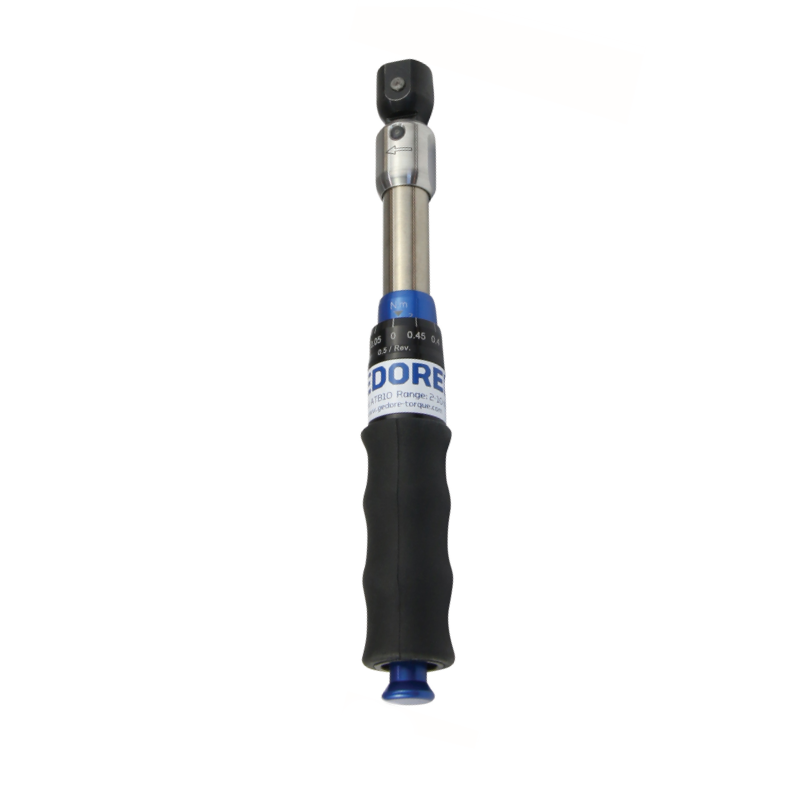

Breaking mechanism torque wrenches are engineered to reduce the risk of under and over tightening in production, service and repair industries. Wide range of tools are available in a torque range of 0.4-200 Nm in both preset and adjustable models. Adjustable models 25, 50 and 100 are supplied with a detachable ratchet head.

  • Compact design allows easy access where space is restricted
  • The 20° breaking angle mechanism eliminates the possibility of over-tightening
  • Excellent repeatability
  • Better than +/- 6% accuracy (ISO 6789:2017) for all models
  • Available a wide selection of end fittings
  • Preset wrenches are available as models with an electrical switch or a RF-transmitter/receiver for use in computer-controlled production
SKU: ATB & TBN Category:

Description

ADJUSTABLE MODELS
Item Model Torque Range (Nm) Length (mm) Weight (kg) Drive/Spigot/Female End
050520 ATB 2.5* 0.5–2.5 190 0,24 8 mm round spigot
050500 ATB 5* 1 – 5 220 0,29 8 mm round spigot
050550 ATB 10* 2 – 10 220 0,30 8 mm round spigot
050527 ATB 2.5 G* 0.5–2.5 192 0,27 9 x 12 mm female end
050507 ATB 5 G* 1 – 5 230 0,29 9 x 12 mm female end
050557 ATB 10 G* 2 – 10 230 0,30 9 x 12 mm female end
050636 ATB 25 D 5 – 25 345 1,11 1/4″
050638 ATB 25 A 5 – 25 345 1,12 3/8″
050685 ATB 50 10 – 50 365 1,14 3/8″
050735 ATB 100 20 – 100 400 1,30 1/2″
PRESET MODELS
Item Model Torque Range (Nm) Length (mm) Weight (kg) Drive/Spigot/Female End
011100 TBN 2 0,4 – 2 105 0,11 Captive Pin
011200 TBN 10 1 – 10 105 0,13 Captive Pin
011110 TBN 2 G 0,4 – 2 133 0,13 9 x 12 mm female end
011210 TBN 10 G 1 – 10 133 0,15 9 x 12 mm female end
050010 TBN 25 G 5 – 25 265 0,41 9 x 12 mm female end
050110 TBN 65 G 10 – 65 302 0,75 9 x 12 mm female end
050210 TBN 135 G 27 – 135 408 1,03 9 x 12 mm female end
050310 TBN 200 G 40 – 200 520 1,40 14 x 18 mm female end
050000 TBN 25 5 – 25 265 0,41 16 mm round spigot
050100 TBN 65 10 – 65 302 0,75 16 mm round spigot
050200 TBN 135 27 – 135 408 1,03 16 mm round spigot
050300 TBN 200 40 – 200 520 1,40 16 mm round spigot
