Norbar

Adjustable Click-Type Torque Wrenches

PRO SERIES

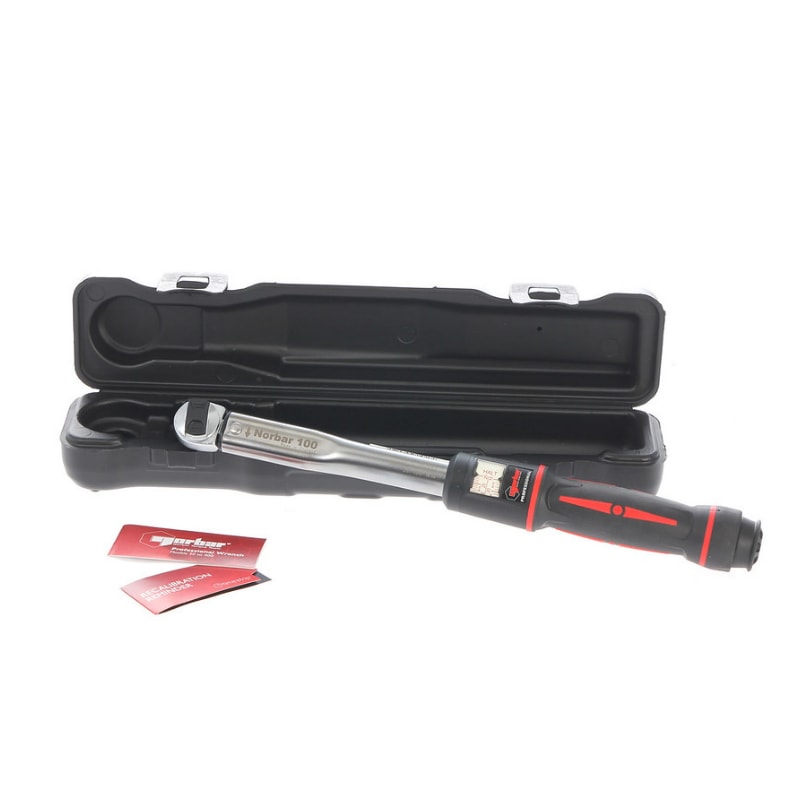

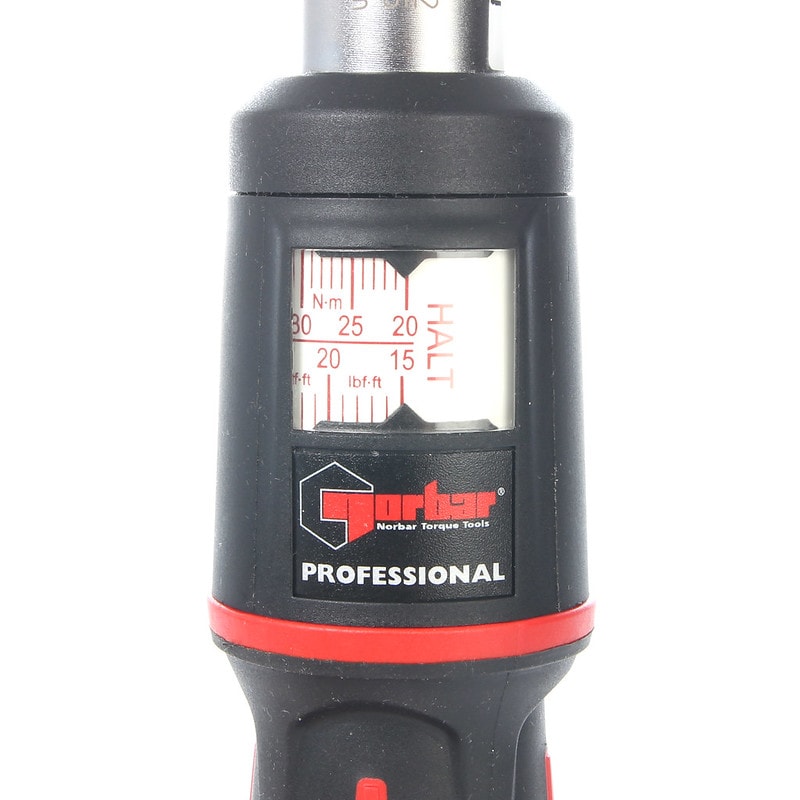

The Norbar Professional series torque wrenches combine excellent repeatability with a durable and ease of use design. Designed to meet the requirements of professional usage, clicking type torque wrenches exceed the requirements set by ISO6789.2017 standard for torque ranges with an accuracy that is better than +/-3. Long, adjustable torque scale allows for fool proof and accurate setting while the locking mechanism prevents accidental adjustment of the wrench during operation. The wrenches are delivered with a traceable calibration certificate and in own robust carry case.

  • Ratchet models are available with either change of direction knob on top of ratchet (automotive) or with a push through square drive (industrial)
  • Torque handles are available either as spigot type (16mm) or as female ended (9 x 12mm / 14 x 18mm) – Quick change of end fitting with easy locking knob
  • Soft feel handle provides excellent grip even in oily conditions
  • The ratcheted models 800, 1 000 and 1 500 are delivered with a locking extension arm – the use of the extension arm does not affect the torque accuracy



More from Norbar >>

SKU: Pro Category:

Description

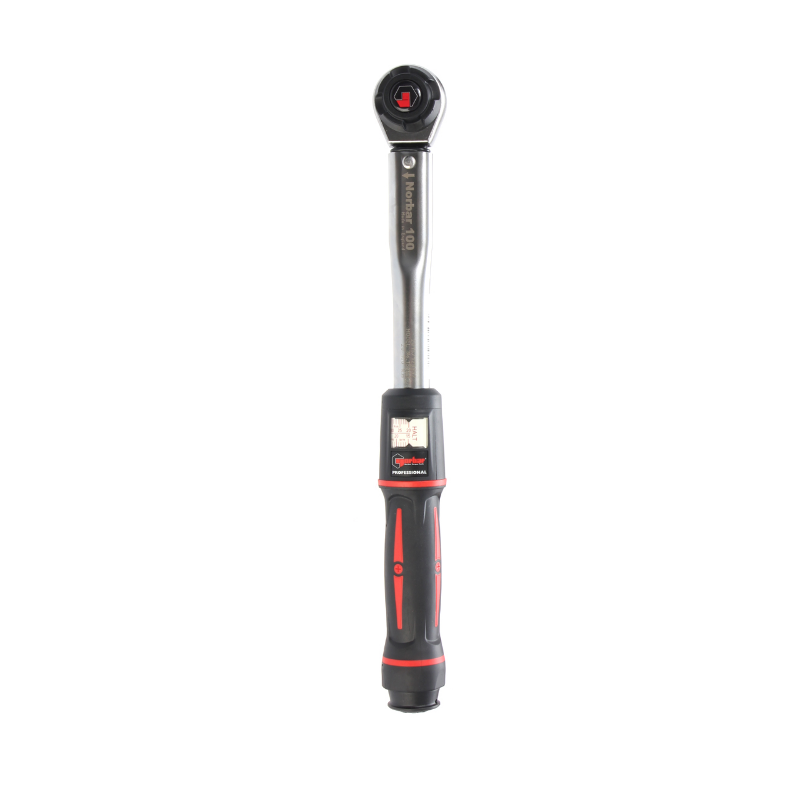

With Reversible Ratchet
Item Model Drive Torque Range (Nm) Ratchet Ø (mm) Lenght (mm) Weight (kg)
15224  Pro 15 1/4″ 3 – 15 25 221 0,3
15225 Pro 15 3/8″ 3 – 15 25 221 0,3
15226 Pro 25 1/4″ 5 – 25 25 221 0,3
15227 Pro 25 3/8″ 5 – 25 25 221 0,3
15022 Pro 50 3/8″ 10 – 50 30 327 0,7
15023 Pro 50 1/2″ 10 – 50 30 327 0,7
15024 Pro 100 3/8″ 20 – 100 30 367 0,8
15025 Pro 100 1/2″ 20 – 100 30 367 0,8
15026 Pro 200 1/2″ 40 – 200 43 465 1,0
With Push-Through Ratchet
Item Model Drive Torque Range (Nm) Ratchet Ø (mm) Lenght (mm) Weight (kg)
15042 Pro 50 3/8″ 10 – 50 35 335 0,7
15043 Pro 100 1/2″ 20 – 100 45 387 0,9
15044 Pro 200 1/2″ 40 – 200 45 470 1,1
15045 Pro 300 1/2″ 60 – 300 52 567 1,4
15046 Pro 340 1/2″ 60 – 340 52 685 1,5
15047 Pro 400 3/4″ 80 – 400 51 686 1,9
14038 Pro 650 3/4″ 130 – 650 66 856 4,0
14024 Pro 800 3/4″ 200 – 800 75 1037* 5,2
14025 Pro 800 1″ 200 – 800 75 1037* 5,2
14026 Pro 1000 3/4″ 300 – 1 000 75 1245* 5,8
14027 Pro 1000 1″ 300 – 1 000 75 1245* 5,8
14028 Pro 1500 3/4″ 500 – 1 500 75 1571* 6,7
14029 Pro 1500 1″ 500 – 1 500 75 1571* 6,7

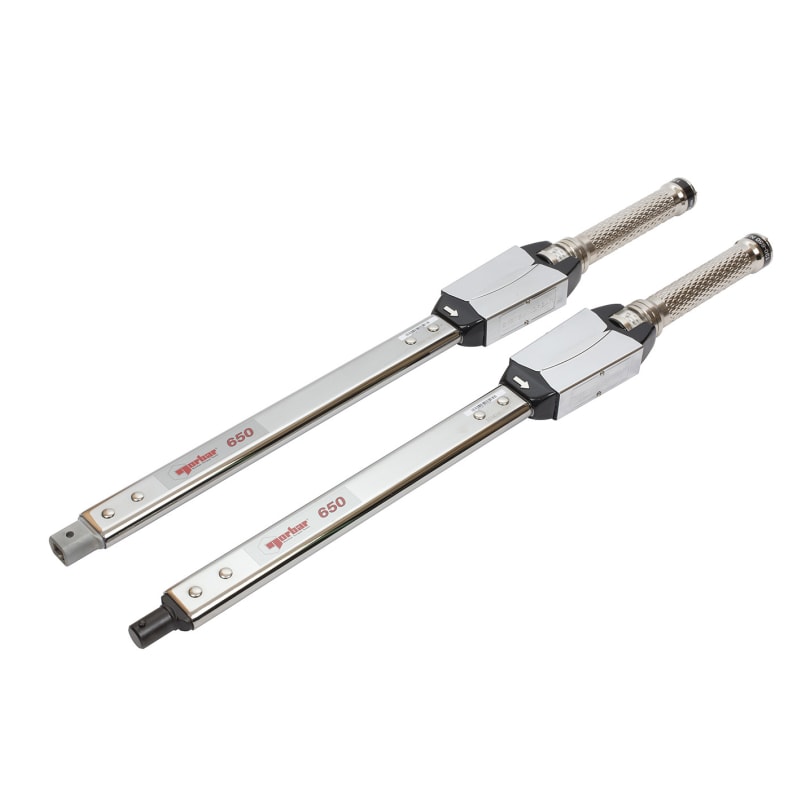

With Spigot
Item Model Drive Torque Range (Nm) Lenght (mm) Weight (kg)
15070 Pro 15 TH 16 mm 3 – 15 223 0,3
15071 Pro 25 TH 16 mm 5 – 25 223 0,3
15072 Pro 50 TH 16 mm 10 – 50 322 0,6
15073 Pro 100 TH 16 mm 20 – 100 363 0,7
15074 Pro 200 TH 16 mm 40 – 200 445 0,9
15075 Pro 300 TH 16 mm 60 – 300 569 1,2
14040 Pro 650 TH 22 mm 130 – 650 807 3,6

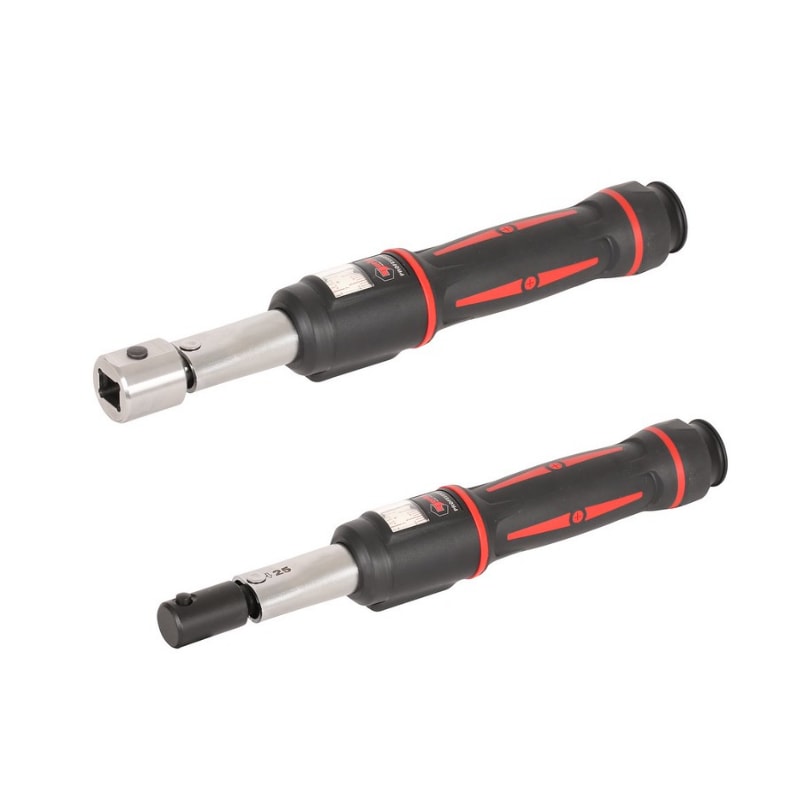

With Female End Fittings
Item Model Drive Torque Range (Nm) Lenght (mm) Weight (kg)
15110 Pro 15 FTH 9 x 12 mm 3 – 15 218 0,3
15111 Pro 25 FTH 9 x 12 mm 2 – 25 218 0,3
15112 Pro 50 FTH 9 x 12 mm 10 – 50 325 0,6
15113 Pro 100 FTH 9 x 12 mm 20 – 100 365 0,7
15114 Pro 200 FTH 9 x 12 mm 40 – 200 442 0,9
15115 Pro 200 FTH 14 x 18 mm 40 – 200 453 1,0
15116 Pro 300 FTH 14 x 18 mm 60 – 300 570 1,2
15117 Pro 340 FTH 14 x 18 mm 60 – 340 662 1,3
15118 Pro 400 FTH 14 x 18 mm 80 – 400 664 1,7
14041 Pro 650 FTH 14 x 18 mm 130 – 650 830 3,6

*) With an extension bar (500 mm).

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
Norbar

Product Sheet

Product Sheet (in Finnish) [PDF]
