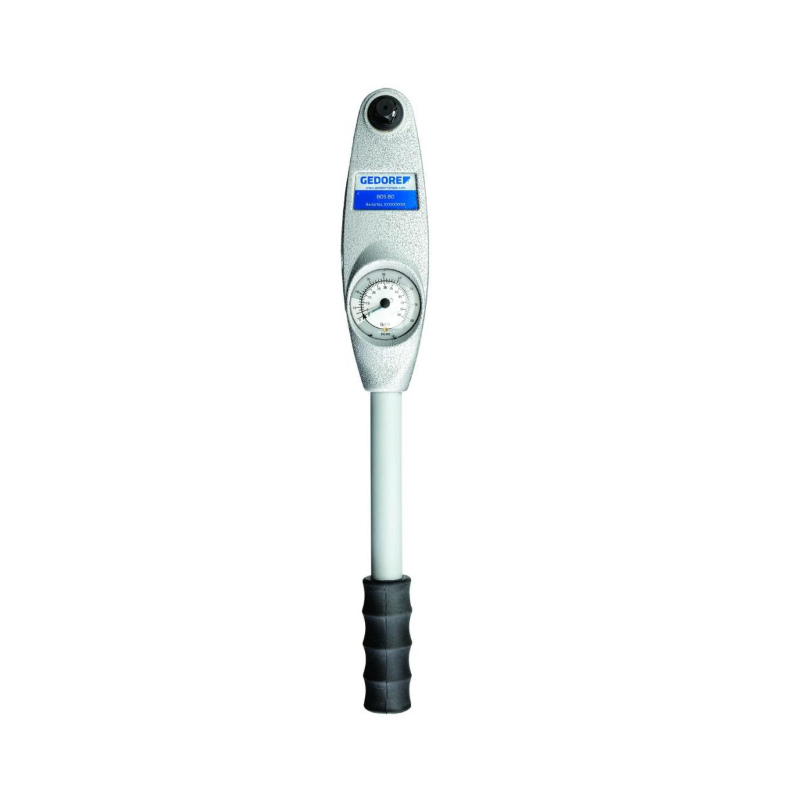

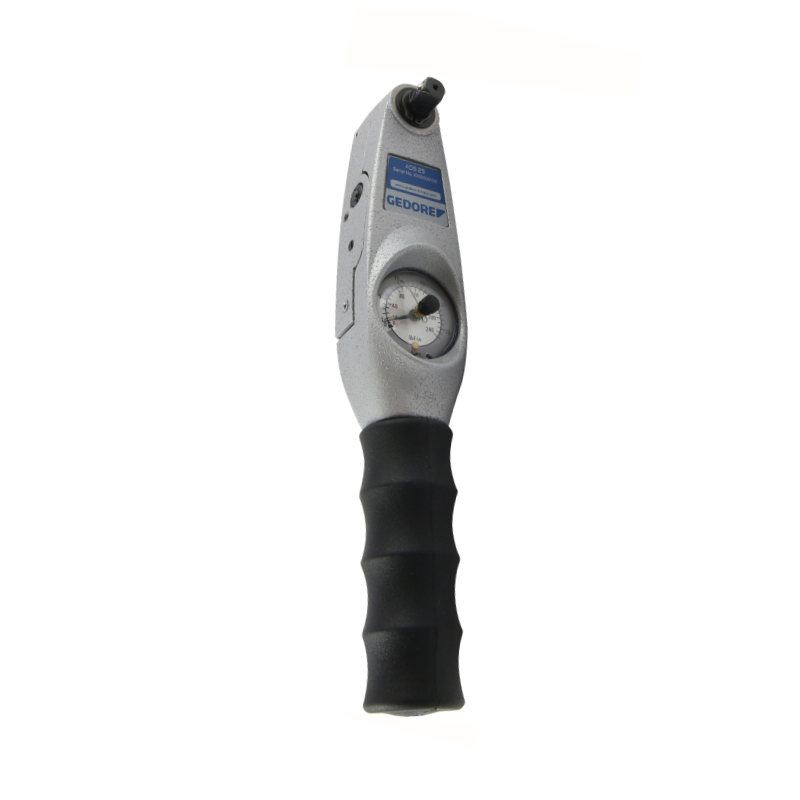

Dial Measuring Torque Wrenches

The Gedore Dial Measuring Torque Wrenches are designed to verify or monitor torque, in order to ensure process conformity, product safety and absolute reliability. The main pointer on the dial captures the finishing torque applied to a fastener with a memory pointer. These low cost, durable and versatile tools can be used for maintenance, repair, quality control and assembly in any engineering or manufacturing environment.

  • Lightweight, high-strength aluminium structure
  • Dual scale in metric and imperial
  • Tightening and untightening measurement is possible, with double-ended ratchet as standard (except EDS versions)
  • Dial provides effective measurement in both directions, delivering flexibility and minimising tool investment
  • Better than +/- 4% accuracy (ISO6789:2017) for all models



More from Gedore >>

Category:

Description

1/4″ Drive (S models have a signal system)
Item Model Torque Range (Nm) Lenght (mm) Weight (kg)
10100 ADS 4 0,8 – 4 244 0,52
10108 ADS 4 S 0,8 – 4 244 0,52
10120 ADS 8 1,6 – 8 244 0,52
10128 ADS 8 S 1,6 – 8 244 0,52
10140 ADS 12 D 2,4 – 12 244 0,52
10148 ADS 12 D S 2,4 – 12 244 0,52
3/8″ Drive (S/AS/FS Models Have A Signal System)
Item Model Torque Range (Nm) Lenght (mm) Weight (kg)
10160 ADS 12 A 2,4 – 12 244 0,52
10168 ADS 12 AS 2,4 – 12 244 0,52
10180 ADS 25 5 – 25 244 0,52
10188 ADS 25 S 5 – 25 244 0,52
10200 ADS 25 F 5 – 25 244 0,52
10208 ADS 25 FS 5 – 25 244 0,52
10220 ADS 40 8 – 40 244 0,52
10228 ADS 40 S 8 – 40 244 0,52
10240 ADS 40 F 8 – 40 244 0,52
10248 ADS 40 FS 8 – 40 244 0,52
10300 BDS 80 A 16 – 80 435 1,35
10380 BDS 80 AS 16 – 80 440 1,47
1/4″ Drive (S/ES Models Have a Signal System
Item Model Torque Range (Nm) Lenght (mm) Weight (kg)
10320 BDS 80 E 16 – 80 435 1,36
10400 BDS 80 ES 16 – 80 440 1,49
10410 BDS 100 20 – 100 515 1,41
10415 BDS 100 E 20 – 100 515 1,41
10340 BDS 160 32 – 160 515 1,41
10420 BDS 160 S 32 – 160 520 1,54
10360 BDS 200 40 – 200 515 1,41
10440 BDS 200 S 40 – 200 520 1,54
10520 CDS 400 S 80 – 400 710 3,20
10620 DDS 800 S 160 – 800 1000 4,90
10700 EDS 1400 S 280 – 1400 2040 16,7
10720 EDS 2000 S 400 – 2000 2040 16,7
