Single Acting Pull Cylinders

HP SERIES

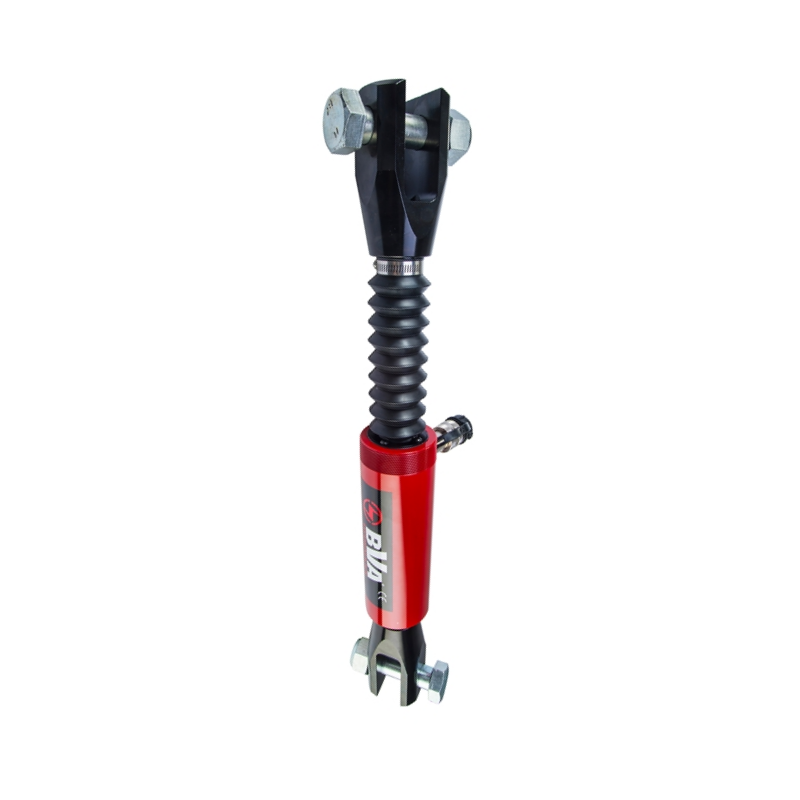

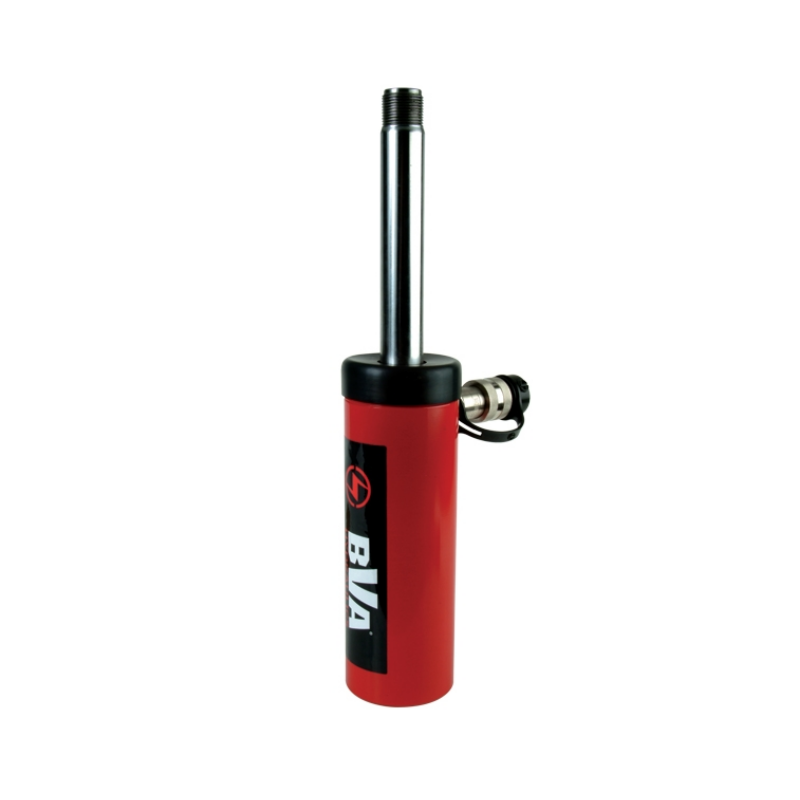

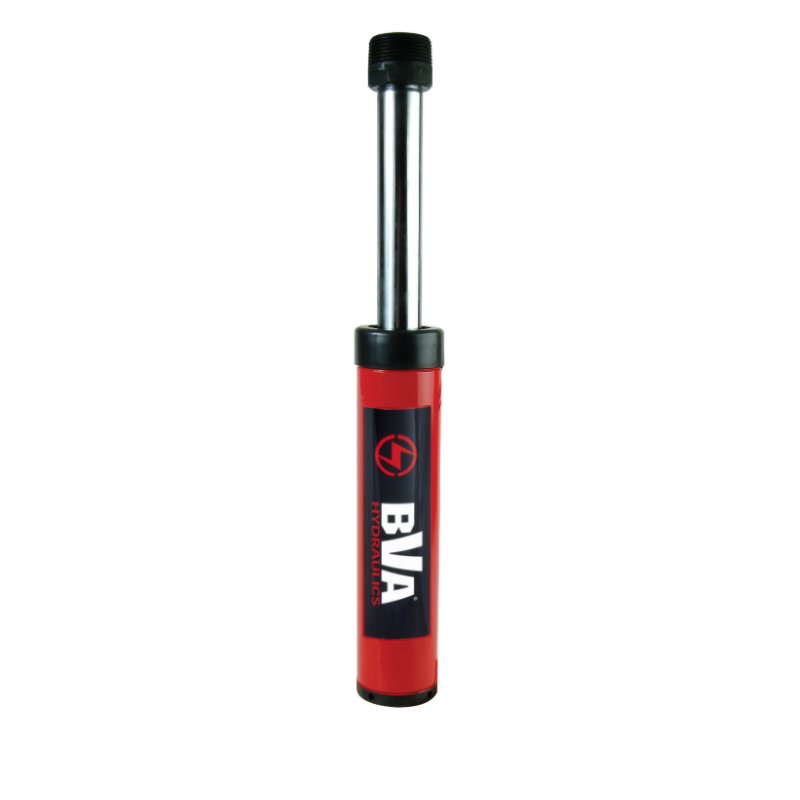

The Single Acting Pull Cylinders plunger is equipped with threads in both ends for easy attachment to a variety of installations. The cylinders are available in the capacity range of 2.5-30 ton, in addition to which the cylinders are available on special order up to 60 tons.
  • High strength steel construction
  • Guide ring is designed to help protect against side-load damage
  • High lifecycle polyurethane seal
  • External plunger threads
  • Internal base thread for easy attachment
  • High flow ball coupler and dust cap included
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Single Acting Pull Cylinders

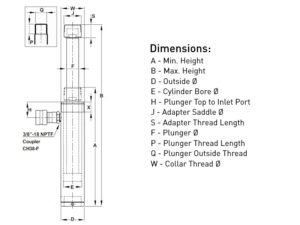

Item Push Capacity (tn) Stroke (mm) Cylinder Effective Area (cm2) Oil Capacity (cc) Min. Height A (mm) Max. Height B (mm) Outside Ø D (mm) Cylinder bore Ø C (mm) Top to inlet port G (mm) Collar thread H Collar thread lenght L (mm) Adapter thread F (mm) Adapter lenght P (mm) Plunger Ø E (mm) Plunger thread lenght K (mm) Plunger thread Q (mm) Base mounting hole thread Y Base mounting hole depth Z (mm) Weight (kg)
HP0205 2,5 127 3,6 46 268 395 48 29 42 1 1/2˝-16UN 25 3/4″-14NPTF 29 19 19 M16 x 1.5 3/4″-14NPTF 18 2,9
HP0505 5 141 7,4 104 303 444 57 43 38 2 1/4˝-14UN 25 1 1/4″-11.5NPTF 32 30 24 M28 x 1.5 1 1/4″-11.5NPTF 24 4,2
HP1006 10 151 15,7 237 299 450 85 55 38 M85x2 25 32 26 M30 x 2 M30 25 9,5
HPB1006A 10 150,6 237 565 715,6 85 55 12
HPB3006A 30 154,5 633 1 085 1 239,50 114 85 47,4

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet [PDF] Tuotekortti [PDF]
