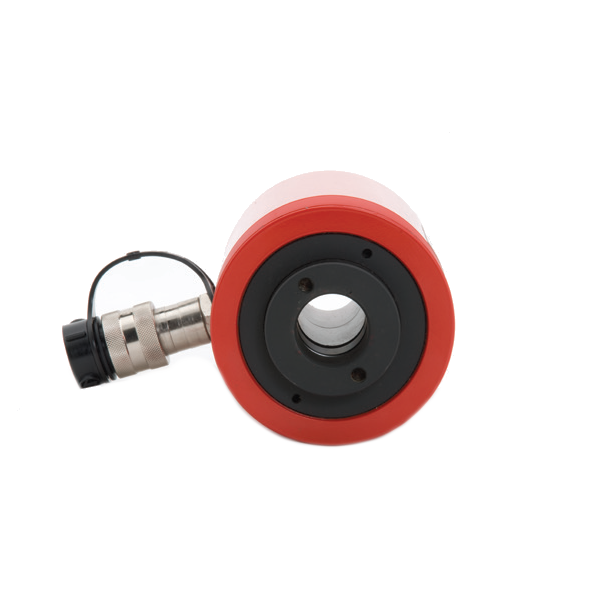

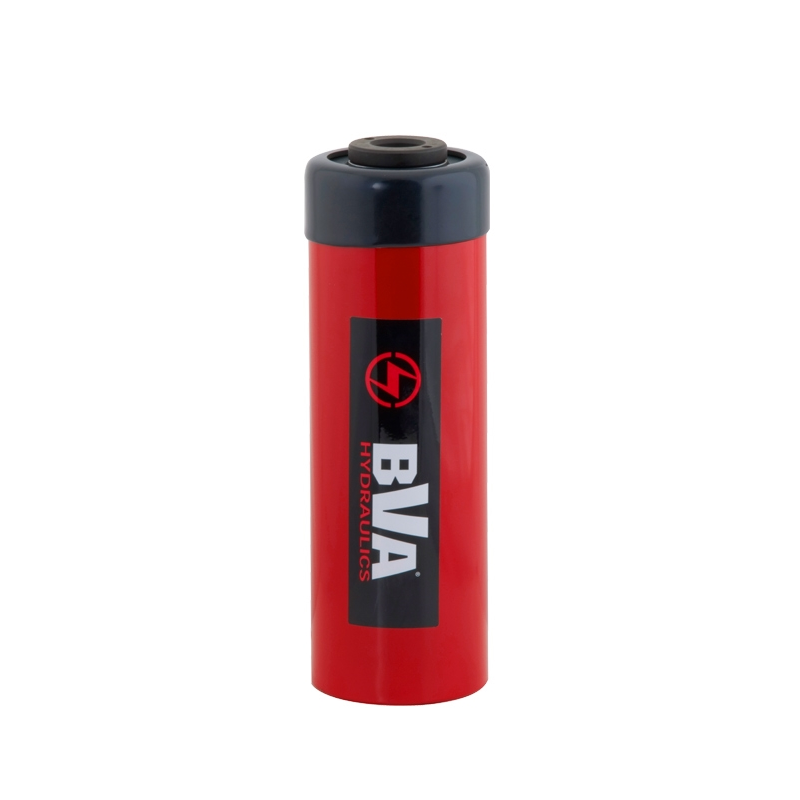

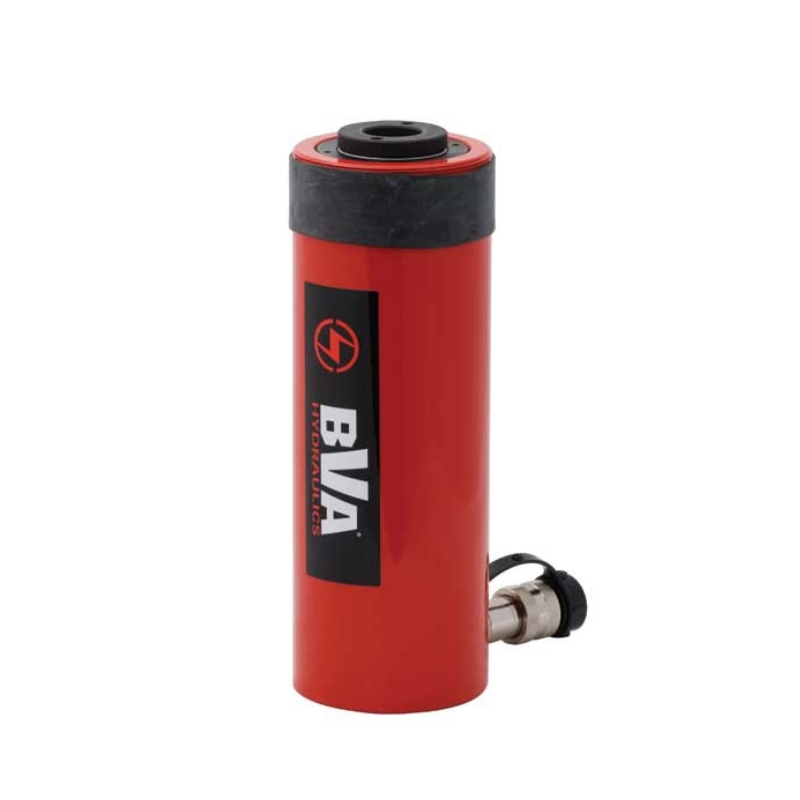

Single Acting Hollow Hole Cylinders

The extensive range of hollow hole cylinders provides the right cylinder for every need on capacity range of 12-100 ton. Especially the heavy duty return spring makes sure that the retractions is as quick as possible. Handles included in 60 and 100 ton models.

  • Dual plunger wiper reduces contamination and extends the cylinder-life
  • Collar thread for easy attachment
  • High flow ball coupler and dust cap included
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description



Push Capacity 12 tn (129 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Plunger I.D (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HC1201T 8 60 70 19 15 18,8 1,5
HC1202XT* 41 121 70 19 77 18,8 2,6
HC1202 41 121 70 19 77 18,8 2,6
HC1203XT* 76 184 70 19 143 18,8 3,9
Push Capacity 20 tn (217 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Plunger I.D (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HC2002T 51 162 100 27 161 31,6 7,2
HC2006T 154 306 100 27 487 31,6 13,4
Push Capacity 30 tn (280 kN)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Plunger I.D (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HC3002T 64 179 114 33 261 40,8 10,4
HC3006T 155 331 114 33 634 40,8 19,5

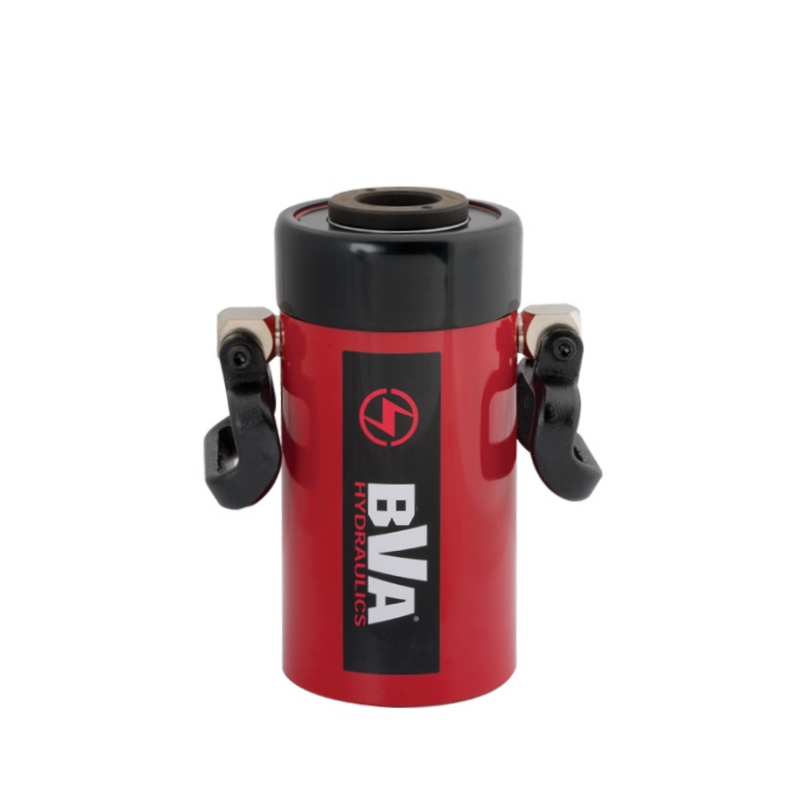

Push Capacity 60 tn (578 kN) (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Plunger I.D (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HC6003T 76 248 159 54 641 84,2 29,8
HC6006T 152 324 159 54 1 282 84,2 36,8
Push Capacity 100 tn (980 kN) (2 handles included)
Item Stroke (mm) Min. Height (mm) Outside Ø (mm) Plunger I.D (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HC10003T 76 254 213 79 1 087 142,8 51,4

*) No internal plugger threads on XT cylinders.

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

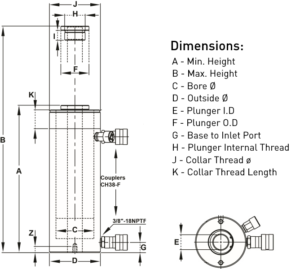

Dimensions

Push Capacity: 12 tn (129 kN)
Item Bore Ø C (mm) Plunger Outside Ø F (mm) Plunger internal thread J Plunger internal thread lenght K (mm) Collar thread Ø H Collar thread lenght L (mm) Base to inlet port G (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
HC1201T 49 35 3/4”-16UN 16 2 3/4”-16N 46 14 51 5/16”-18UNC 9
HC1202XT 49 35 3/4”-16UN 16 2 3/4”-16N 46 15 51 5/16”-18UNC 9
HC1202 49 35 2 3/4”-16N 46 15 51 5/16”-18UNC 9
HC1203XT 49 35 2 3/4”-16N 46 19 51 5/16”-18UNC 9
Push Capacity: 20 tn (217 kN)
Item Bore Ø C (mm) Plunger Outside Ø F (mm) Plunger internal thread J Plunger internal thread lenght K (mm) Collar thread Ø H Collar thread lenght L (mm) Base to inlet port G (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
HC2002T 64 55 1 9/16”-16UN 19 3 7/8”-12N 38 19 83 3/8”-16UNC 9
HC2006T 64 55 1 9/16”-16UN 19 3 7/8”-12N 38 19 83 3/8”-16UNC 9
Push Capacity: 30 tn (280 kN)
Item Bore Ø C (mm) Plunger Outside Ø F (mm) Plunger internal thread J Plunger internal thread lenght K (mm) Collar thread Ø H Collar thread lenght L (mm) Base to inlet port G (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
HC3002T 72 63 1 13/16”-16UN 22 4 1/2”-12N 42 23 92 3/8”-16UNC 14
HC3006T 72 63 1 13/16”-16UN 22 4 1/2”-12N 42 23 92 3/8”-16UNC 14
Push Capacity: 60 tn (578 kN) (includes 2 carring handles)
Item Bore Ø C (mm) Plunger Outside Ø F (mm) Plunger internal thread J Plunger internal thread lenght K (mm) Collar thread Ø H Collar thread lenght L (mm) Base to inlet port G (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
HC6003T 104 93 2 3/4”-16UN 19 6 1/4”-12N 49 27 130 1/2”-13UNC 14
HC6006T 104 93 2 3/4”-16UN 19 6 1/4”-12N 49 27 130 1/2”-13UNC 14
Push Capacity: 100 tn (980 kN) (includes 2 carring handles)
Item Bore Ø C (mm) Plunger Outside Ø F (mm) Plunger internal thread J Plunger internal thread lenght K (mm) Collar thread Ø H Collar thread lenght L (mm) Base to inlet port G (mm) Base Mounting Hole Bolt Circle X (mm) Base Mounting Hole Thread Y Base Mounting Hole Thread Depth Z (mm)
HC10003T 135 125 4”-16UN 25 8 3/8”-12N 60 27 178 5/8”-11UNC 19
