For CMS and PMS load sensors

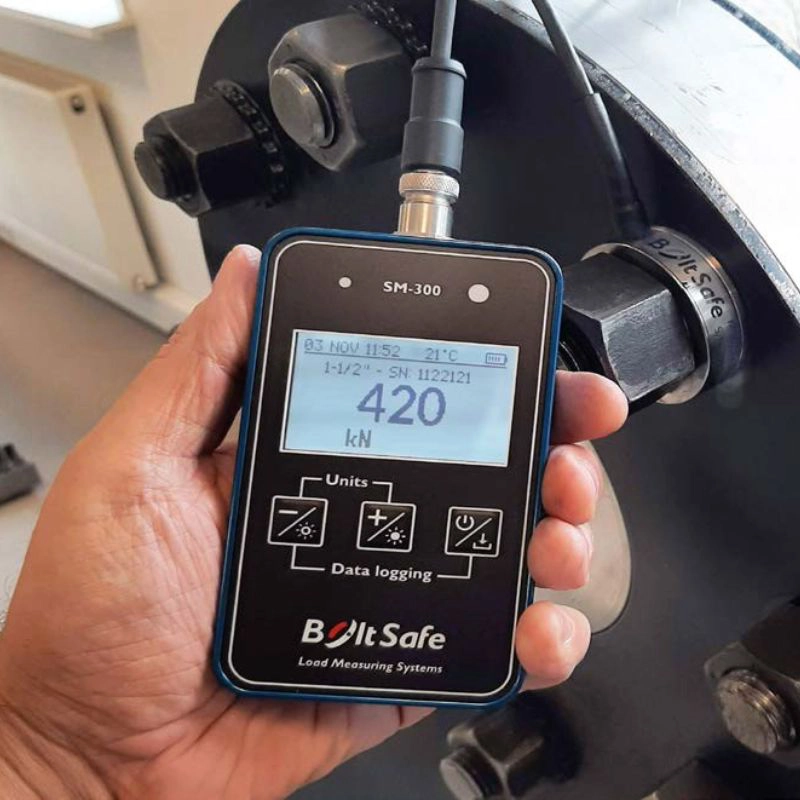

The SM-300 is a handheld reader that reads and stores data from force sensors. The tightening value is displayed on the device’s LCD screen. With the reader, tightening can be monitored during the process, and if desired, tightening can be checked using the device. Thanks to the backlit display, values are easier to read even in dimly lit conditions. The force applied to the sensor can be read in kN or lbf units. The SM-300 reader can store up to 43,000 values and records the sensor, force, and sensor temperature. The data collected by the sensor can also be easily transferred directly to a computer via a USB cable.

  • Easy to use
  • Long battery life with over 72 hours of use
  • Operating temperature -20°C – 50°C
  • IP47 protection
  • Backlit LCD display


More from BoltSafe >>





BoltSafe measuring solutions can be used to measure the final tightening force on the bolted joint. They are widely suitable for a variety of industries and due to their compact design, the sensors usually fit easily into any job site. In the product list, special emphasis has been placed on ease of use and the accuracy of measurement results. Visit manufacturer's website >>

Product Sheet

Product Sheet (In Finnish) [PDF]
