CMS Bolt Load Sensor

CONTINUOUS MONITORING SYSTEM

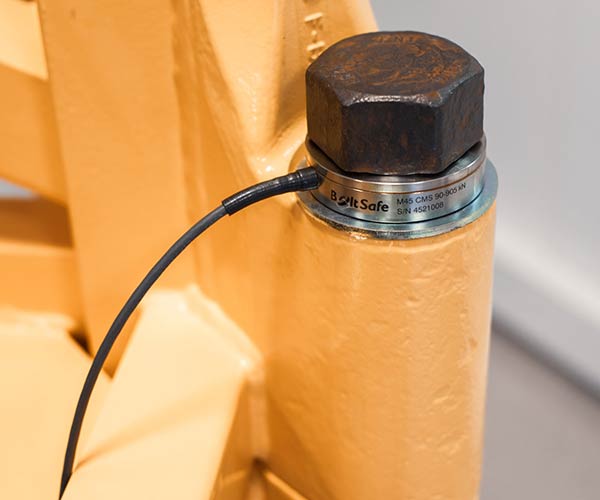

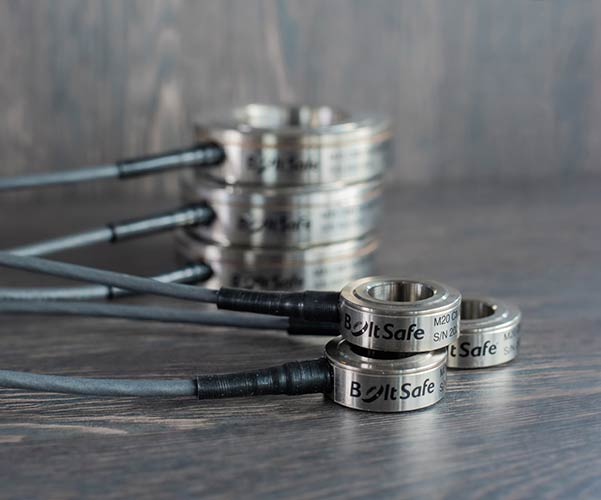

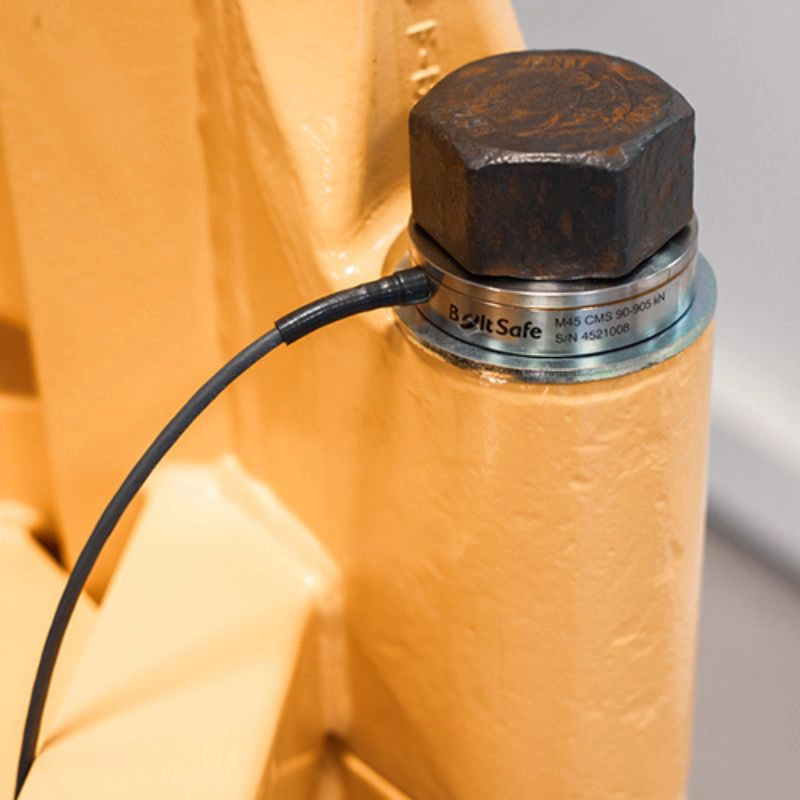

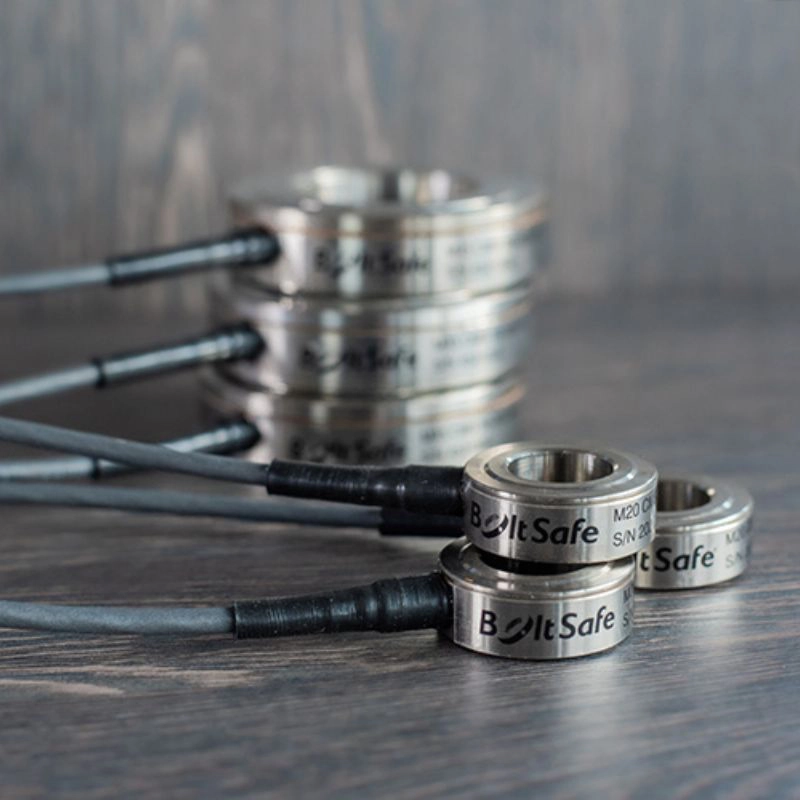

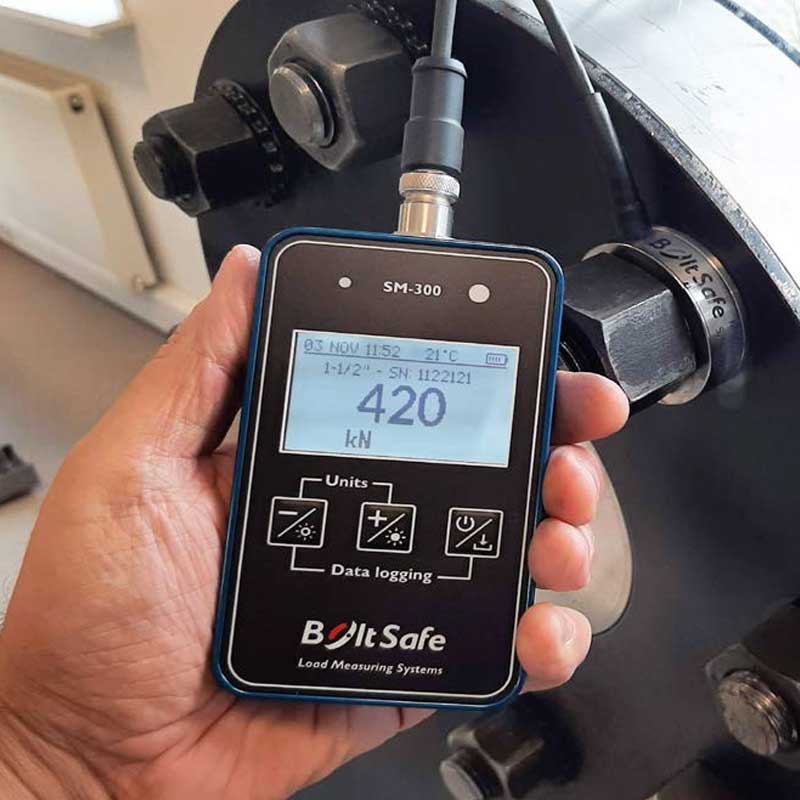

The BoltSafe bolt load cell is designed to monitor the actual bolt load in bolted joints and several load sensors can be interconnected within a network. Using BoltSafe load sensors eliminates uncertainties from bolt load and safety is increased. All BoltSafe readers can be used with CMS bolt load sensors. CMS sensors are available from M20 to M72 and are available in two kinds of steel: regular stainless steel and a stronger version that can withstand 15% more load.

  • Check live data remotely
  • View historical data
  • Designed for challenging conditions and temperatures from -40° C to 80° C



More from BoltSafe >>

Category:

Description

CMS Sensor
Item Size Outside Ø (mm) Thickness (mm) Clamping Load Class 10.9 (kN) Steps (kN) Weight (kg)
BKS-M20-CMS M20 37 14 166 2 73
BKS-M22-CMS M22 40 14 208 2 85
BKS-M24-CMS M24 44 14 239 2 104
BKS-M27-CMS M27 50 14 315 3 137
BKS-M30-CMS M30 64,3 17 385 5 214
BKS-M33-CMS M33 68,4 17 480 5 218
BKS-M36-CMS M36 72,8 17 560 5 295
BKS-M39-CMS M39 78 17 670 5 300
BKS-M42-CMS M42 83 20 772 5 445
BKS-M45-CMS M45 87,6 20 905 10 506
BKS-M48-CMS M48 92 20 1 018 10 591
BKS-M52-CMS M52 97,2 20 1 221 10 669
BKS-M56-CMS M56 102 20 1 408 15 798
BKS-M60-CMS M60 108 23 1 647 20 1 083
BKS-M64-CMS M64 114 23 1 794 20 1 196
BKS-M64-HV-CMS M64HV 120 23 2 100 20 1 310
BKS-M72-CMS M72 124 23 2 250 20 1 360
BKS-M72-HV-CMS M72(HV) 124 23 2 500 20 1 370

Brand

BoltSafe

BoltSafe

BoltSafe measuring solutions can be used to measure the final tightening force on the bolted joint. They are widely suitable for a variety of industries and due to their compact design, the sensors usually fit easily into any job site. In the product list, special emphasis has been placed on ease of use and the accuracy of measurement results. Visit manufacturer's website >>

Product Sheet

Product Sheet (In Finnish) [PDF]
