Network with PDI

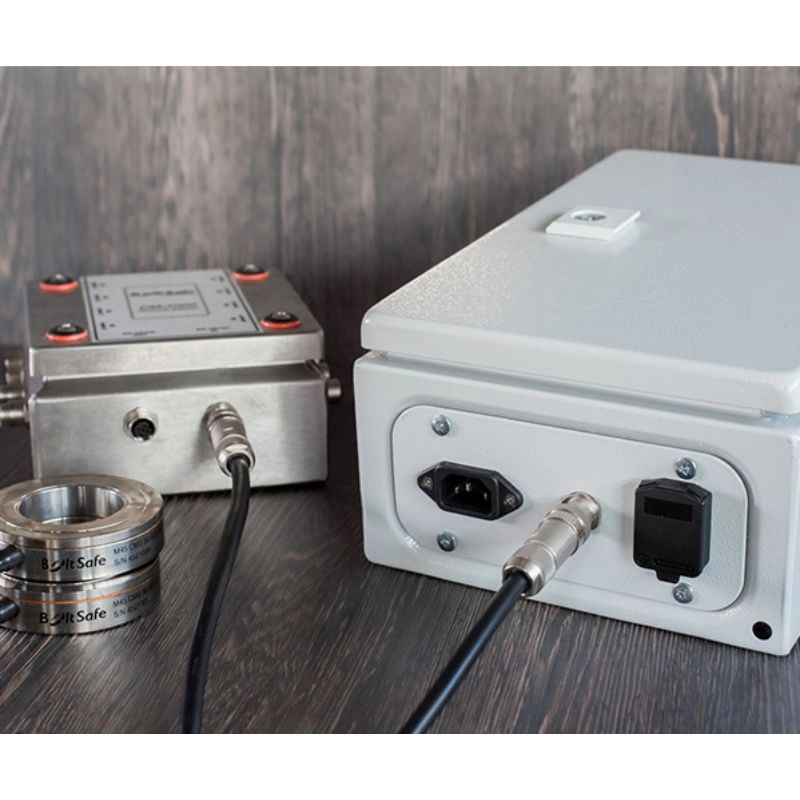

With a PDI network, one or even 32 different CM-1000 boxes are used to read the method, allowing data to be visualized continuously. Up to eight CMS sensors can be connected to one CM-1000 box, so up to 256 different CMS sensors can be visualized simultaneously. To minimize malfunctions, the CM-1000 box has a short-circuit protection for each of the cell loads.

  • The CM-1000 box can connect 8 CMS sensors at once
  • 256 CMS sensors can be read out with connected boxes

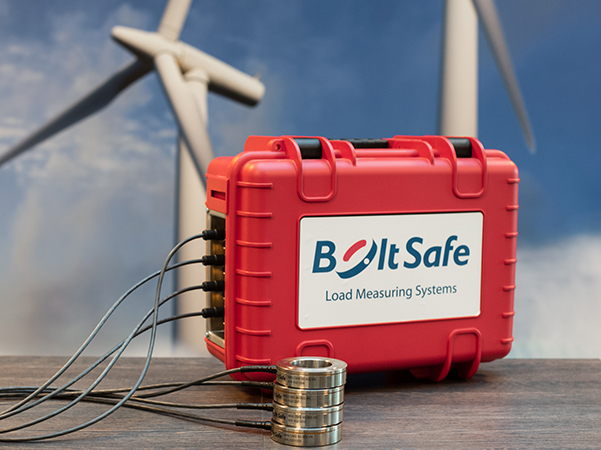

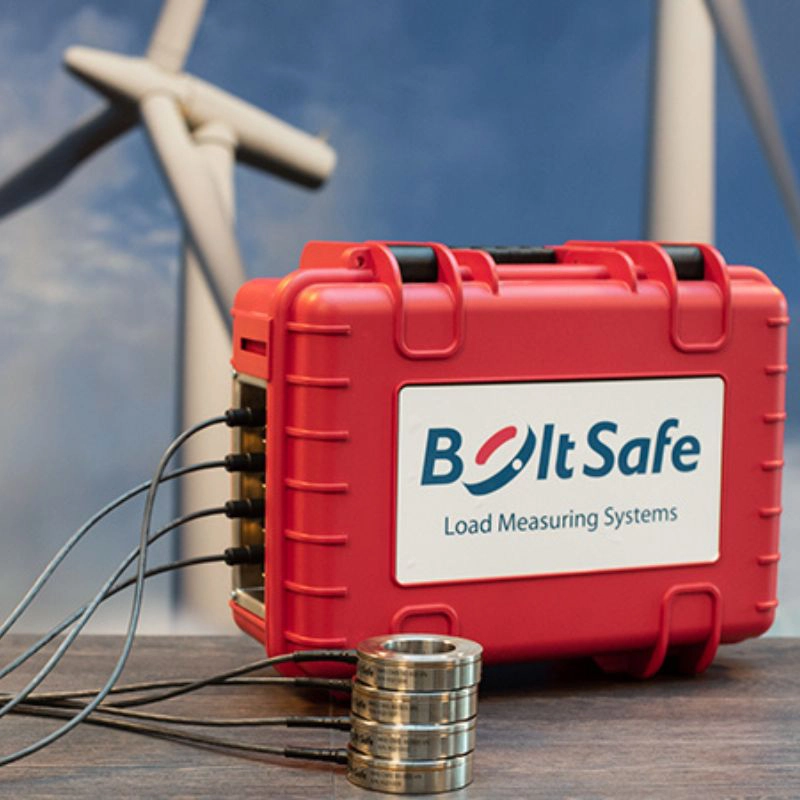

  • Optionally delivered in a portable case
  • Cellular (4G) connection is optional


More from BoltSafe >>





BoltSafe measuring solutions can be used to measure the final tightening force on the bolted joint. They are widely suitable for a variety of industries and due to their compact design, the sensors usually fit easily into any job site. In the product list, special emphasis has been placed on ease of use and the accuracy of measurement results. Visit manufacturer's website >>

Product Sheet

Product Sheet (In Finnish) [PDF]
