Norbar

Torque Multipliers

HT3, HT4 & COMPACT SERIES

Hand torque multiplier is a good alternative to applications, where normal wrenches don’t achieve sufficient torque due to e.g. space restriction. The usage is simple, torque wrench is set to a value corresponding the ratio of the multiplier after which the multiplier is placed between wrench and bolt to be tightened. The output torque value is the same as the torque value multiplied by the gear ratio. High-quality torque multipliers from Norbar are manufactured from stainless steel and their accuracy is guaranteed better than +/-4 %.

  • Robust construction means minimal maintenance and long life
  • Supplied in a carrying case
  • HT3 & HT4 series hand torque multipliers are cost effective alternatives to reach higher torque values
  • HT-52, HT-72, HT-92 ja HT-119 models are designed to be narrow and light-weighted
  • Anti Wind-Up Ratchet (AWUR) available for easier and safer operation
  • A variety of alternative reaction styles and torque transducers are available for maximum versatility
SKU: HT3, HT4 & Compact Category:

Description

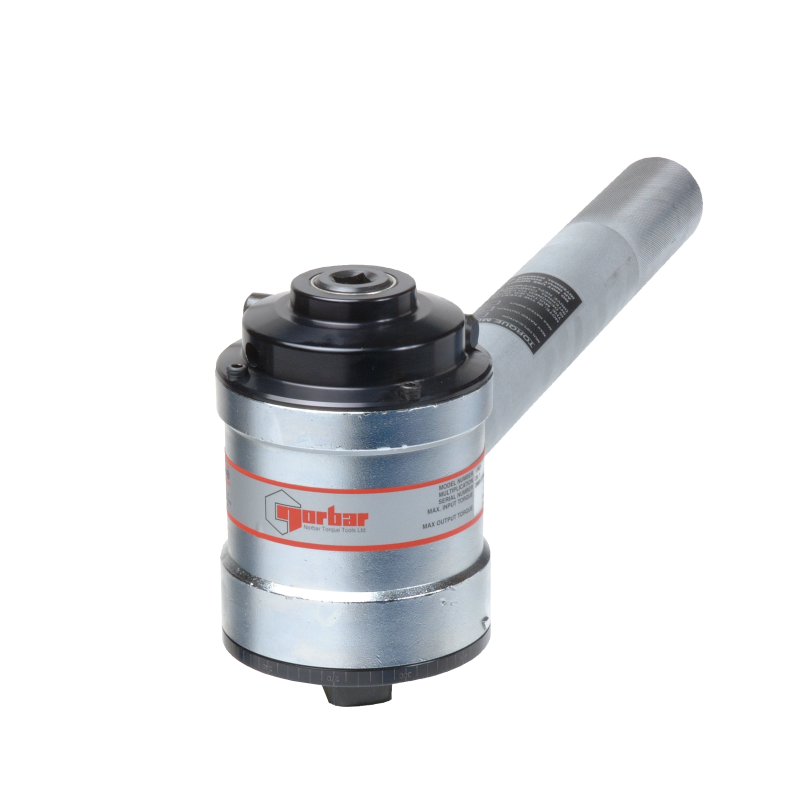

HT3 models (diameter 108 mm)
Item Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
180260 HT3/1000 1 000 5:1 1/2″ 3/4″ 2,7 3,4
17220 HT3/1300 1 300 5:1 1/2″ 3/4″ 3,8 5,1
17221 HT3/2700 2 700 5:1 3/4″ 1″ 3,8 5,1
HT4 models (diameter 108 mm)
Item Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
17022 HT4/15.5 3 000 15.5:1 1/2″ 1″ 6,1 8,0
17021 HT4/26 4 500 26:1 1/2″ 1″ 7,0 8,9

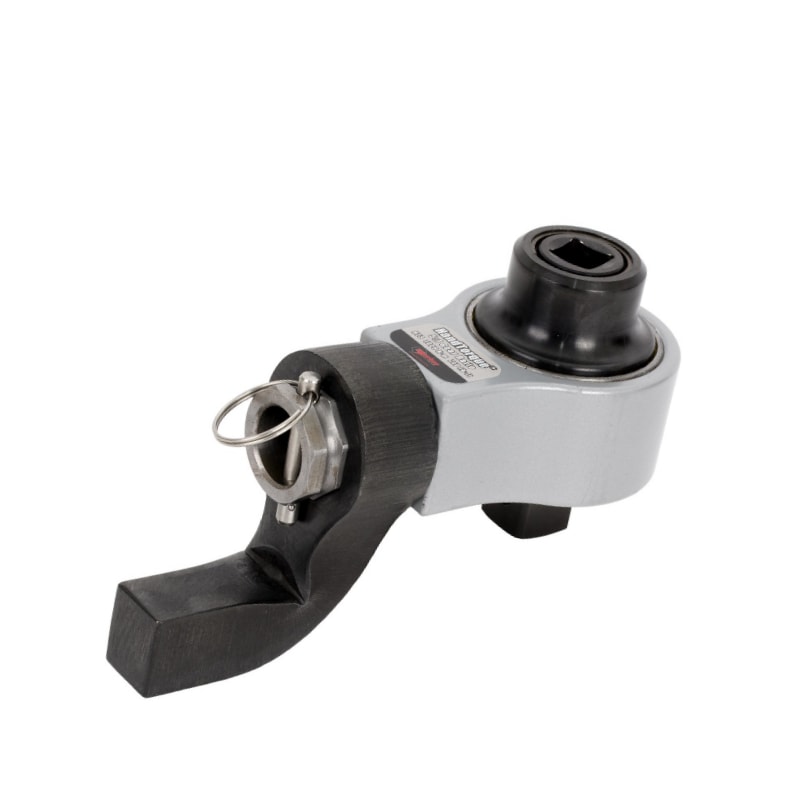

HT-52 models (diameter 52 mm)
Item Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
180200 HT-52/4.7 1 000 4.7:1 1/2″ 3/4″ 1,0 1,9
180201 HT-52/22 1 000 22:1 3/8″ 3/4″ 1,3 2,2
180202 HT-52/22 1 000 22:1 1/2″ 3/4″ 1,4 2,3
180203 HT-52/22 AWUR 1 000 22:1 3/8″ 3/4″ 1,4 2,3
180204 HT-52/22 AWUR 1 000 22:1 1/2″ 3/4″ 1,4 2,3
180205 HT-52/22 AWUR 1 000 22:1 3/8″ 1″ 1,4 2,3
180206 HT-52/22 AWUR 1 000 22:1 1/2″ 1″ 1,4 2,3

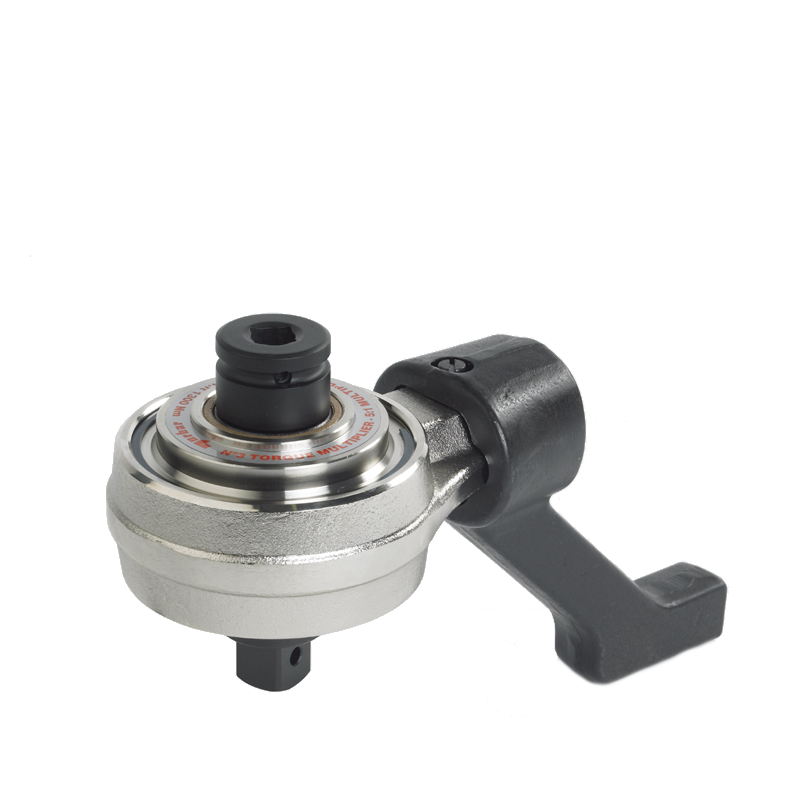

HT-72 models (diameter 72 mm)
Nimike Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
180208 HT-72/5 1 500 5:1 1/2″ 1″ 2,4 3,1
180209 HT-72/5 1 000 5:1 3/4″ 3/4″ 2,4 3,1
180210 HT-72/5 2 000 5:1 3/4″ 1″ 2,4 3,1
180212 HT-72/27 2 000 27:1 1/2″ 1″ 2,7 3,4
180214 HT-72/27 AWUR 2 000 27:1 1/2″ 1″ 3,0 3,7
HT-92 models (diameter 92 mm)
Item Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
180215 HT-92/25 AWUR 4 000 25:1 1/2″ 1″ 5,4 6,8
HT-119 models (diameter 119 mm)
Item Model Max. Torque (Nm) Multiplication Ratio Input Drive Output Drive Weight (kg) Weight with a reaction bar (kg)
180216 HT-119/25 AWUR 7 000 25:1 1/2″ 1 1/2″ 9,3 11,4

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
