High-valued Torque Multipliers

HANDTORQUE STANDARD SERIES

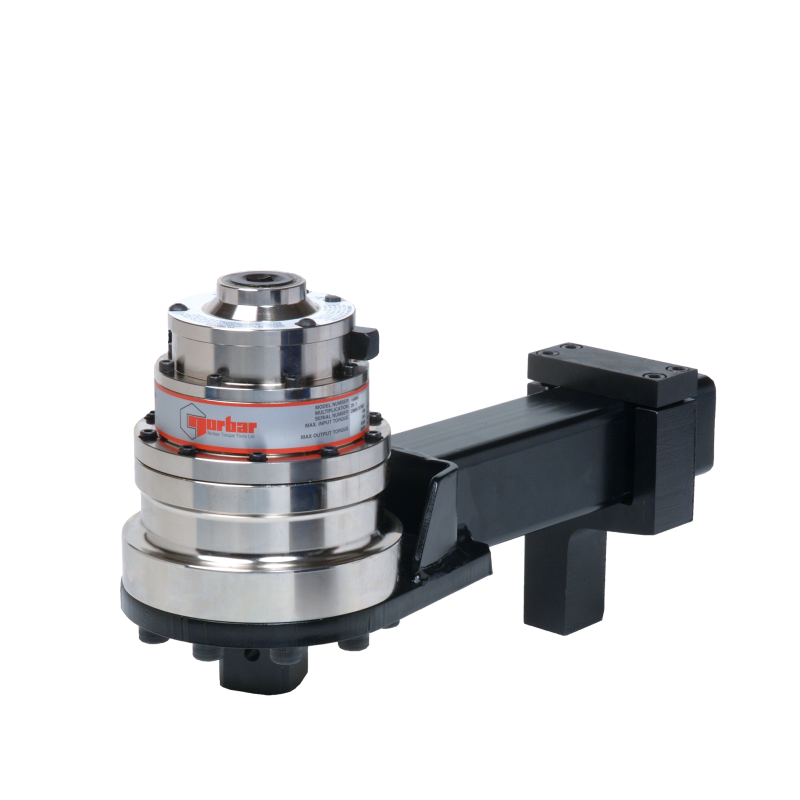

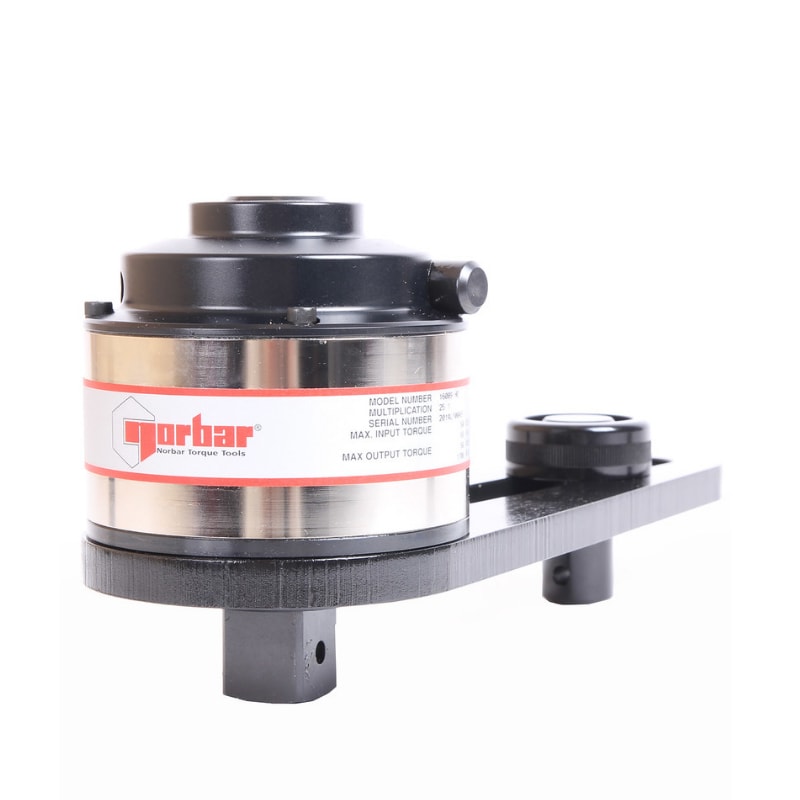

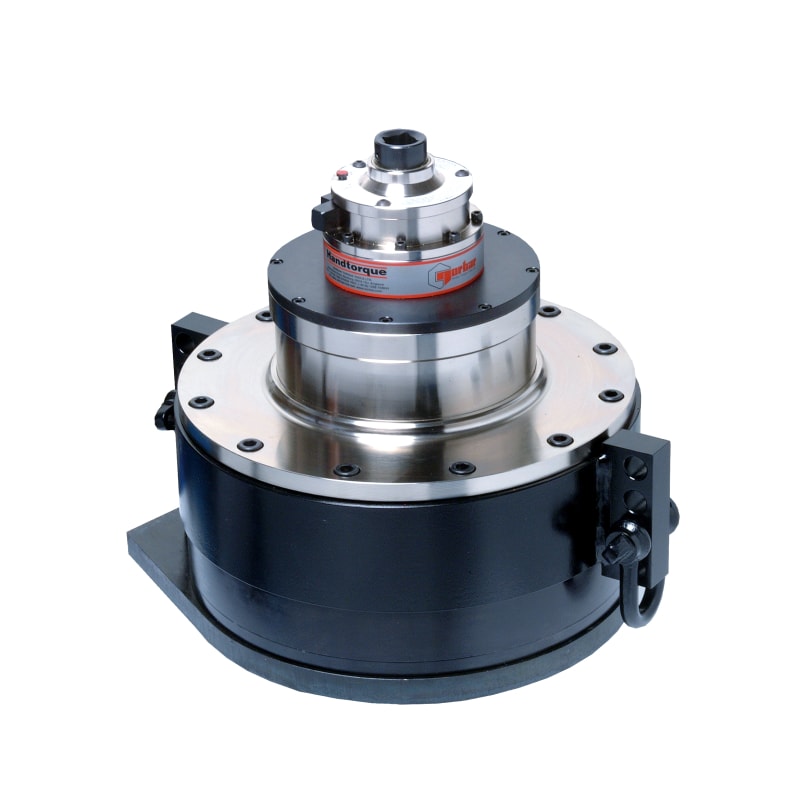

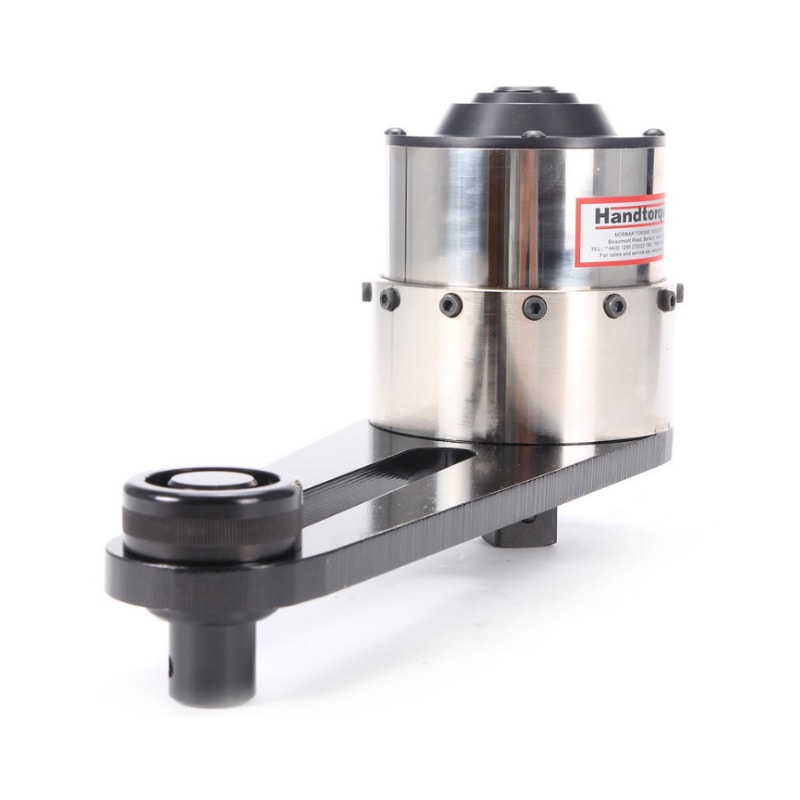

Top-quality Norbar HandTorque Standard torque multipliers allow up to 47 500 Nm to be reached by hand. The Standard Series of HandTorque multipliers have a guaranteed accuracy of +/-4%.

Supplied with a calibration certificate showing the exact multiplication ratio of the product
Built-in Anti Wind-Up Ratchet (AWUR) available on models of 25:1 ratio and above.
Electronic torque transducers can be fitted for precise torque monitoring.
A variety of alternative reaction styles and torque transducers are available for maximum versatility

SKU: HandTorque Standard Category: Hand Torque Multipliers

Description

Torque multipliers for high values
Item	Model	Max. Torque (Nm)	Multiplication Ratio	Input Drive	Output Drive	Weight (kg)	Weight with a reaction bar (kg)
16010	HT1/5	1 700	5:1	1/2″	3/4″	3,0	5,2
16007	HT1/25	1 700	25:1	1/2″	3/4″	4,4	6,6
16030	HT2/5	1 700	5:1	1/2″	1″	3,0	5,2
16012	HT2/5	1 700	5:1	3/4″	1″	3,0	5,2
16088	HT2/25 AWUR	1 700	25:1	1/2″	3/4″	5,5	7,7
16034	HT2/25	1 700	25:1	1/2″	1″	4,4	6,6
16089	HT2/25 AWUR	1 700	25:1	1/2″	1″	5,6	7,8
16014	HT5/5	3 400	5:1	3/4″	1″	4,7	7,2
16028	HT5/25	3 400	25:1	1/2″	1″	6,4	8,9
16090	HT5/25 AWUR	3 400	25:1	1/2″	1″	7,5	10,0
16064.75	HT5/75	3 400	75:1	1/2″	1″	7,9	10,4
16064	HT5/125	3 400	125:1	1/2″	1″	7,9	10,4
16091	HT5/125 AWUR	3 400	125:1	1/2″	1″	9,0	11,5
16016	HT6/5	3 400	5:1	3/4″	1 1/2″	4,7	7,2
16024	HT6/25	3 400	25:1	1/2″	1 1/2″	6,4	8,9
16092	HT6/25 AWUR	3 400	25:1	1/2″	1 1/2″	7,5	10,0
16093	HT6/125 AWUR	3 400	125:1	1/2″	1 1/2″	9,0	11,5
16067	HT7/5	6 000	5:1	3/4″	1 1/2″	8,1	14,4
16094	HT7/5 SD	6 000	5:1	3/4″	1 1/2″	8,0	12,9
16018	HT7/25	6 000	25:1	1/2″	1 1/2″	9,6	15,9
16065	HT7/25 AWUR	6 000	25:1	1/2″	1 1/2″	10,7	17,0
16095	HT7/25 SD AWUR	6 000	25:1	1/2″	1 1/2″	10,6	15,5
16068.75	HT7/75	6 000	75:1	1/2″	1 1/2″	11,1	17,4
16044	HT7/100	6 000	100:1	1/2 integral hex	1 1/2″	11,6	16,5
16056	HT7/100	6 000	100:1	1/2 replaceable hex	1 1/2″	11,6	16,5
16068	HT7/125 AWUR	6 000	125:1	1/2″	1 1/2″	12,2	18,5
16096	HT7/125 SD AWUR	6 000	125:1	1/2″	1 1/2″	12,1	17,0
16059	HT9/25	9 500	25:1	3⁄4″	1 1/2″	16,3	24,6
16070	HT9/25 AWUR	9 500	25:1	3/4″	1 1/2″	17,4	25,7
16071	HT9/125 AWUR	9 500	125:1	1/2″	1 1/2″	18,9	27,2
16082	HT11/25	20 000	25:1	3/4″	2 1/2″	30,1	43,4
16049	HT11/125 AWUR	20 000	125:1	1/2″	2 1/2″	32,1	45,4
16053	HT13/125 AWUR	47 500	125:1	3/4″	2 1/2″	95.2	102

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
