HYTORC

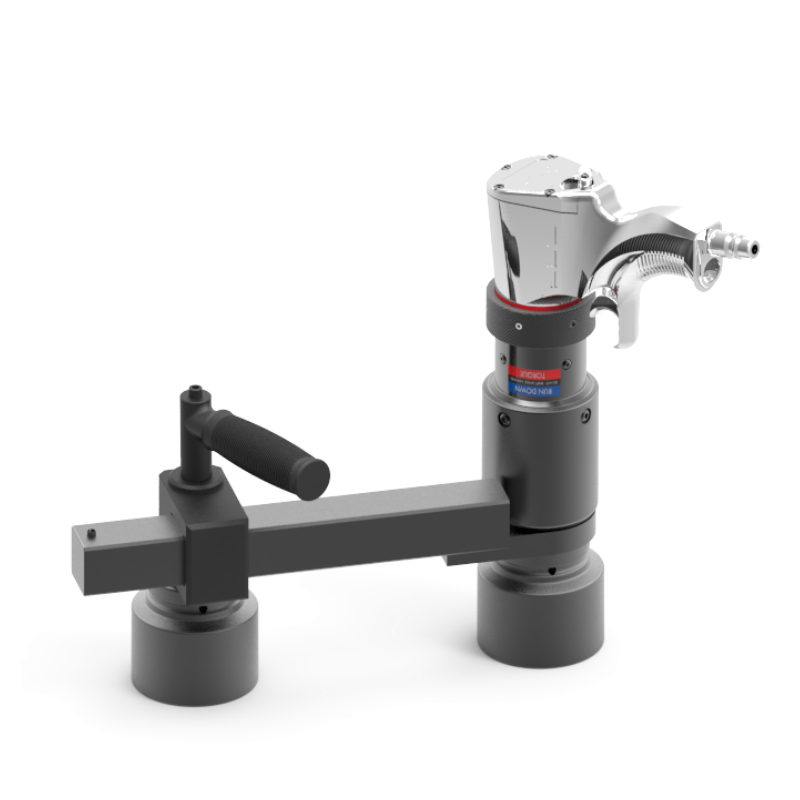

jGun Dual Speed

PNEUMATIC TORQUE WRENCH

HYTORC jGun Dual Speed guarantees a safe, fast and easy bolt tightening operation, and best of all, the bolts get tightened with ±5% accuracy. The precision gearing produces constant, calibrated power with reduced recoiling etc.  The operation is quite with no impacting making in very user friendly, safe and quiet. JGun Dual Speed delivers an initial high-speed rundown and subsequently a slower, more accurate and controllable final torqueing speed. Speed is set with a rotating switch.

  • Model cover wide 80 – 10800 Nm torque range
  • No impacts and therefore vibration-free and low noise
  • Ergonomic grip
  • Improved work safety – safety paddle needs to be pressed down to operate tool
  • Durable lightweight high-strength aluminium alloy body
  • Unprecedented performance for its weight and size
  • Compatible with HYTORC Washers, J-Washers and NUT fastening elements for maximum bolt load accuracy

Description



jGun Dual Speed

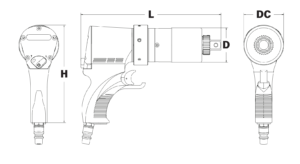

ITEM Torque Range (Nm) Drive Bolt Size (M) D (mm) DC (mm) L (mm) H (mm) Weight (kg) Low Speed (rpm) High Speed (rpm)
JGUN-A.5–AP 169 – 644 3/4” M14 – M22 66 76 205 186 4,4 24 465
JGUN-A1–AP 474 – 1 423 3/4” M20 –M30 66 76 268 188 4,4 6,5 126
JGUN-A2–AP 705 – 2 530  1″ M20 – M36 83 114 318 214 5,4 5 97
JGUN-A3–AP 1 152 – 4 203  1″ M27 – M42 81 76 317 191 5,4 2 39
JGUN-A5–AP 1 491 – 6 779  1 1/2” M36 – M48 105 114 372 214 10 2,5 48
JGUN-A8–AP 1 694 – 10 846 1 1/2” M42 – M56 116 114 391 215 13 1,5 29



Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Product Sheet

Product Sheet (in Finnish) [PDF]
