HYTORC

JetPro

HYDRAULIC PUMP

A series of silent (69 dB) air-cooled electric pumps for the continuous use of one tool. The compact design and simple controls make the pump operation fast and easy and with optional automatic functions the usability is enhanced even further. Our large range of electronic hydraulic pumps include the following JetPro models:

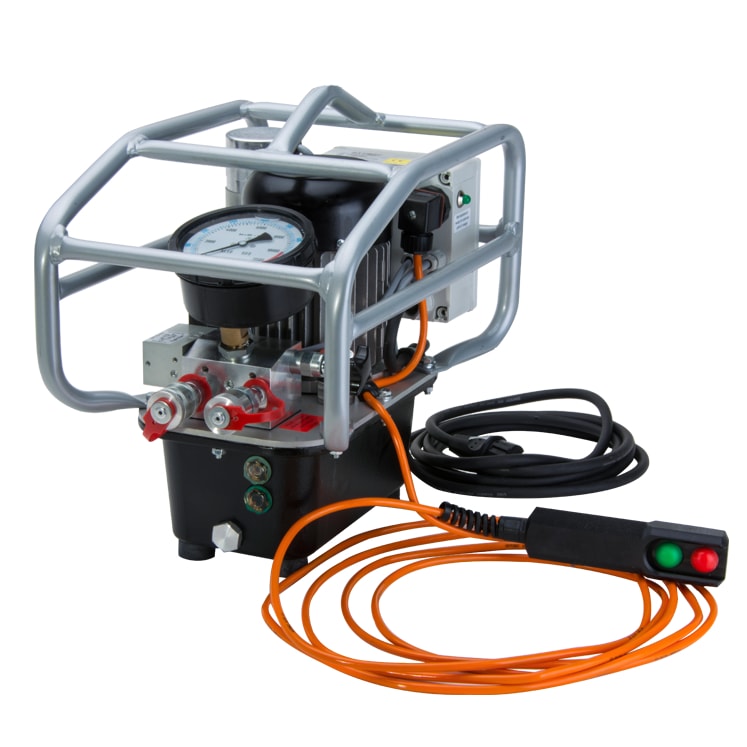

  • MiniJet: Compact and light-weight pump option suitable for maintenance and field use

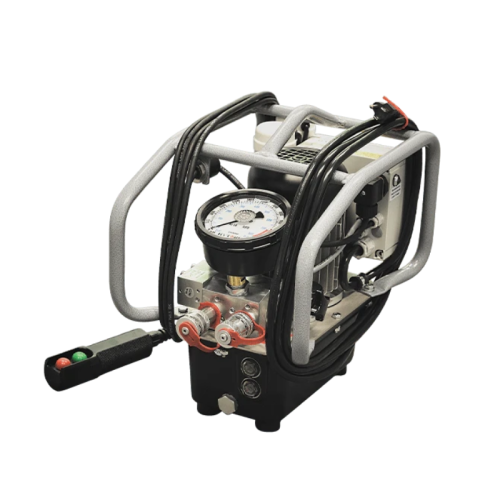

  • JetPro 5.3: Compact and light-weight pump option suitable for maintenance and field use
  • JetPro 6.3: Compact 400 V hydraulic pump for maintenance and field use
  • JetPro 9.3: Compact pump with one or optionally up to four outlets for simultaneous use of several tools.

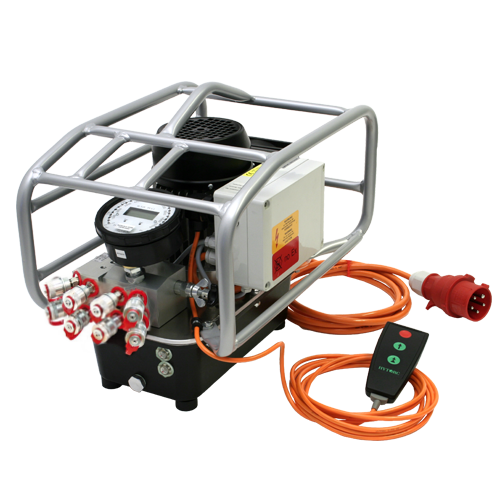

  • JetPro 12.3: High-power hydraulic power unit with up to optional four outputs providing for more demanding needs.

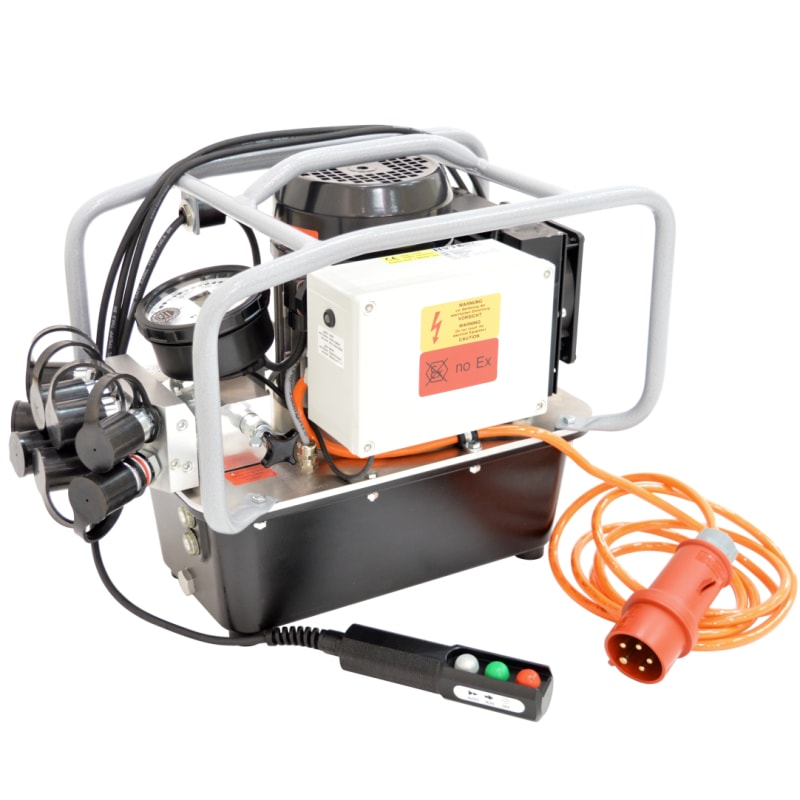

  • JetPro 18.3: High-power hydraulic power unit with up to optional four outputs providing for more demanding needs
  • All our JetPro models can be equipped with semi-automatic or full automatic features.

All our electronic hydraulic pumps include:

  • Accurate pressure regulator (70–700 bar)
  • Calibrated 1.0 gauge
  • Automatic power switch-off function
  • Oil cooler (not included in MiniJet)
  • Remote control with a 5 m wire (24V)



More from HYTORC >>

Category:

Description

JetPro
Item Power unit Force (kW) Oil flow rate, low (l/min) Oil flow rate, middle (l/min) Oil flow rate, high (l/min) Weight (kg) Dimensions W x L x H (mm)
Minijet 230 V 0,6 4 0,4 14 365 x 250 x 350
JetPro 5.3 230 V 0,6 5 1,3 0,5 15 365 x 250 x 350
JetPro 6.3 400 V 0,6 5 1,3 0,5 15 365 x 250 x 350
JetPro 9.3A 230 V 1,5 9 2,4 1 25 425 x 250 x 395
JetPro 12.3A 4T 400 V 1,8 12 3,1 1,4 26 460 x 290 x 400
JetPro 18.3 400 V 3,0 17,5 6 2 29 485 x 310 x 435

Brand

HYTORC

HYTORC

HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>
HYTORC

Product Sheet

Product Sheet (in Finnish) [PDF]
