BVA Hydraulics

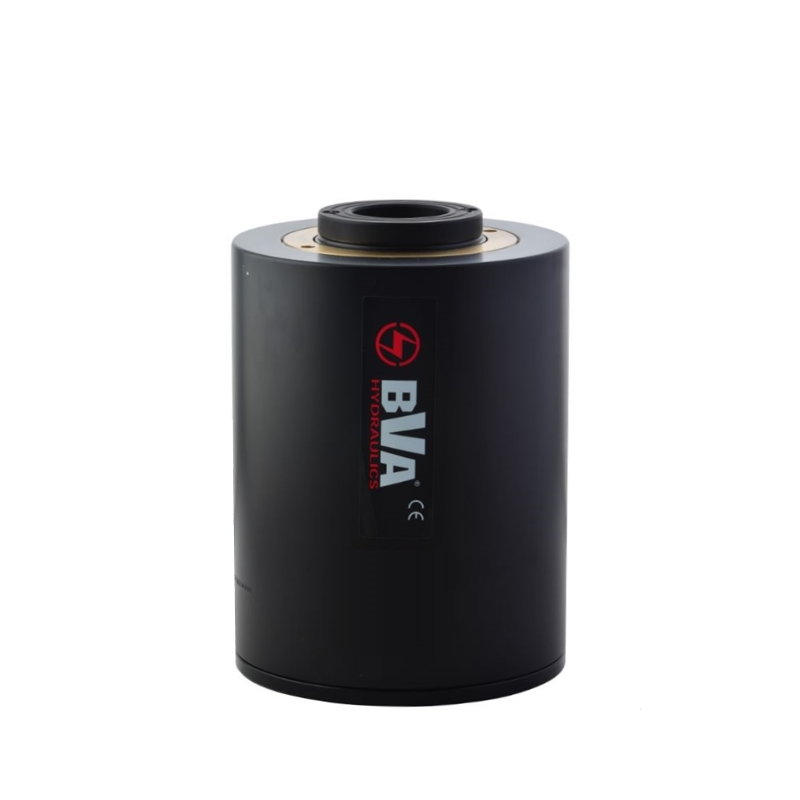

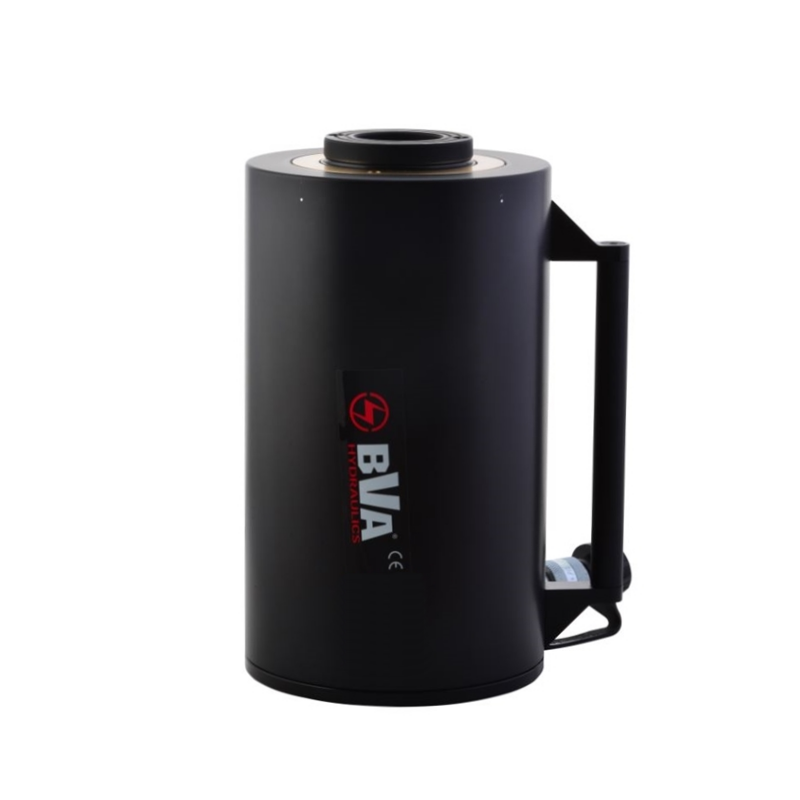

Single Acting Aluminium Hollow Hole Cylinders

HUC SERIES

BVA’s single acting aluminium hollow cylinders cover pushing range of 30-60 ton. The aluminium cylinders are as quality as the traditional steel-framed cylinders but due to their manufacturing material they are considerably lighter and thus easier to move. Hard anodized aluminum rod provides extra protection against corrosion and wear.

  • Piston spring return movement
  • Lightweight aluminum alloy construction
  • Handles included in all models
  • Maximum working pressure 700 bar



More from  BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

Description

Push Capacity: 30 tn (319 kN)
Item Stroke (mm) Oil capacity (cc) Cylinder effective area (cm²) Collapsed height A (mm) Bore Ø C (mm) Outer Ø D (mm) Cylinder Ø E (mm) Plunger Ø F (mm) Base to inlet port G (mm) Weight (kg)
HUC3003T 75 361 46,5 220 98 140 32,3 55 254 10
HUC3006T 152 721 46,5 296 98 140 32,3 55 254 14
Push Capacity: 60 tn (544 kN)
Item Stroke (mm) Oil capacity (cc) Cylinder effective area (cm²) Collapsed height A (mm) Bore Ø C (mm) Outer Ø D (mm) Cylinder Ø E (mm) Plunger Ø F (mm) Base to inlet port G (mm) Weight (kg)
HUC6003T 75 606 79,3 260 133 190 54 76 254 19
HUC6006T 152 1 213 79,3 336 133 190 54 76 254 25
