Tekkor

Impulse Guns

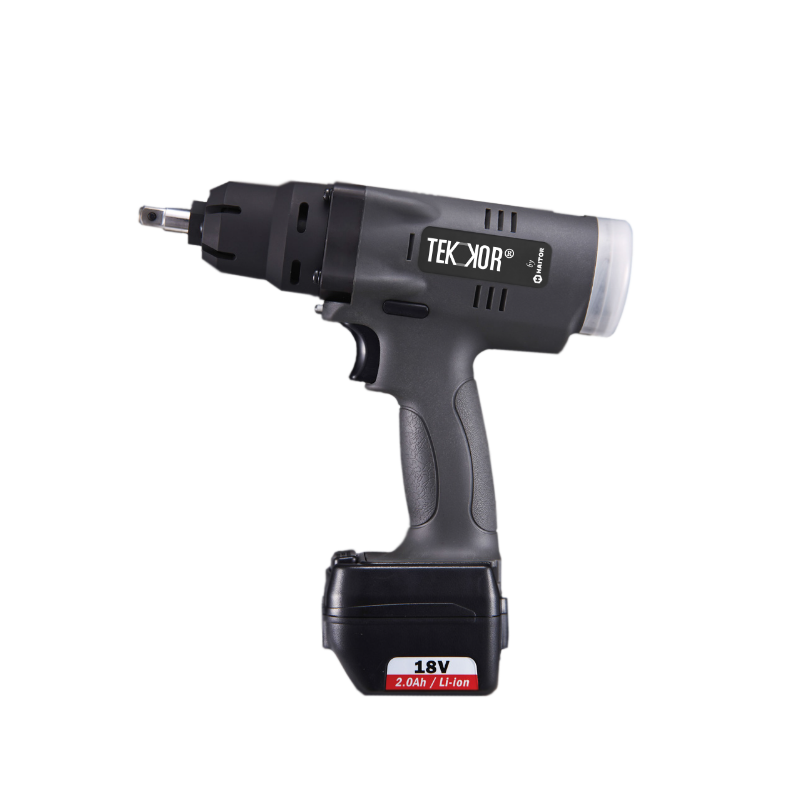

Tekkor battery-powered impulse guns are versatile and reliable tools suitable for a wide variety of applications. Due to their hydraulic impulse system there is no torque reaction on the wrist and the noise levels are low compared to traditional impulse wrenches. Tools cover a torque range of 7-65 Nm. All battery-powered Tekkor tools use the same 18V Li-ion batteries and chargers, making the whole series flexible and easily expandable. In addition, all tools can be programmed with a separate Tekkor control unit, which is a brilliant accessory for fine-tuning tool speed, sounds, light signals and operation the trigger.

  • Reliably and accurately repeatable operation
  • Service-free, brushless electric motor
  • A wide selection of different models for every possible application
  • Easy-to-read LED signals and audio signals for OK / NOK tightening operation
  • Programmable rpm and adjustable trigger
  • Soft-start
  • Battery monitoring feature; the tool shuts itself off when the battery charge drops below the level for sufficient operation
  • Quiet operation <75 db(A)
  • Low vibration level <2,5 m/s2



More from Tekkor >>

Description

Battery-powered impulse guns
Item Drive Torque Range (Nm) Length (mm) Weight (mm) Free Speed (rpm)
TKR-I13Q 1/4″ QC 7 – 13 224 1,2 4 500
TKR-I156 3/8″ SQ 8 – 15 224 1,2 4 500
TKR-I23Q 1/4″ QC 14 – 23 224 1,3 4 500
TKR-I256 3/8″ SQ 15 – 25 224 1,3 4 500
TKR-I35Q 1/4″ QC 22 – 35 224 1,4 3 500
TKR-I356 3/8″ SQ 22 – 35 224 1,4 3 500
TKR-I456 3/8″ SQ 32 – 45 224 1,4 3 500
TKR-I658 1/2″ SQ 45 – 65 224 1,9 3 200

Brand

Tekkor

Tekkor

Haitor's own brand Tekkor is our contract manufacturer's cost-effective alternative to most common fastening needs in the assembly industry. Our easy-to-use impulse wrenches and cordless screwdrivers are excellent choices when looking for an ergonomic, reliable, and repeatable solution for screw connections. The series consists of both pneumatic and battery-powered tools.
Tekkor

Product Sheet

Product Sheet (in Finnish) [PDF]
