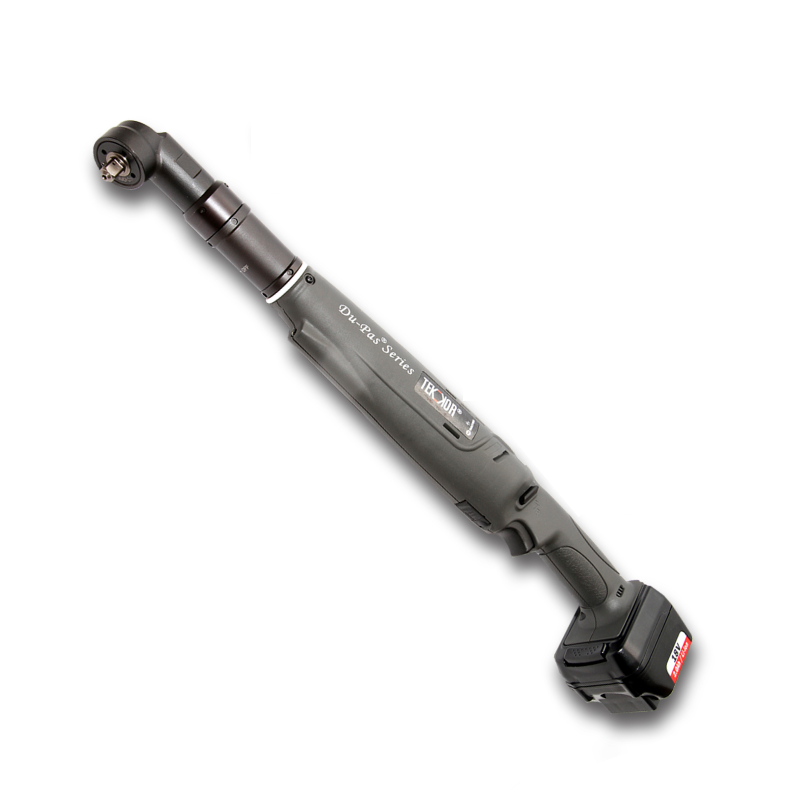

Angle Torque Wrenches

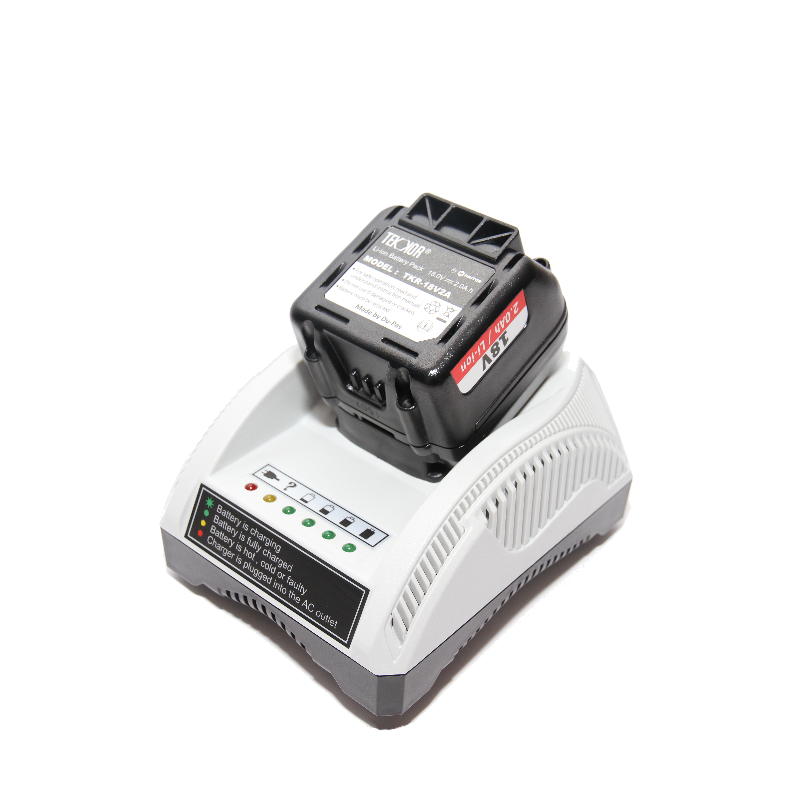

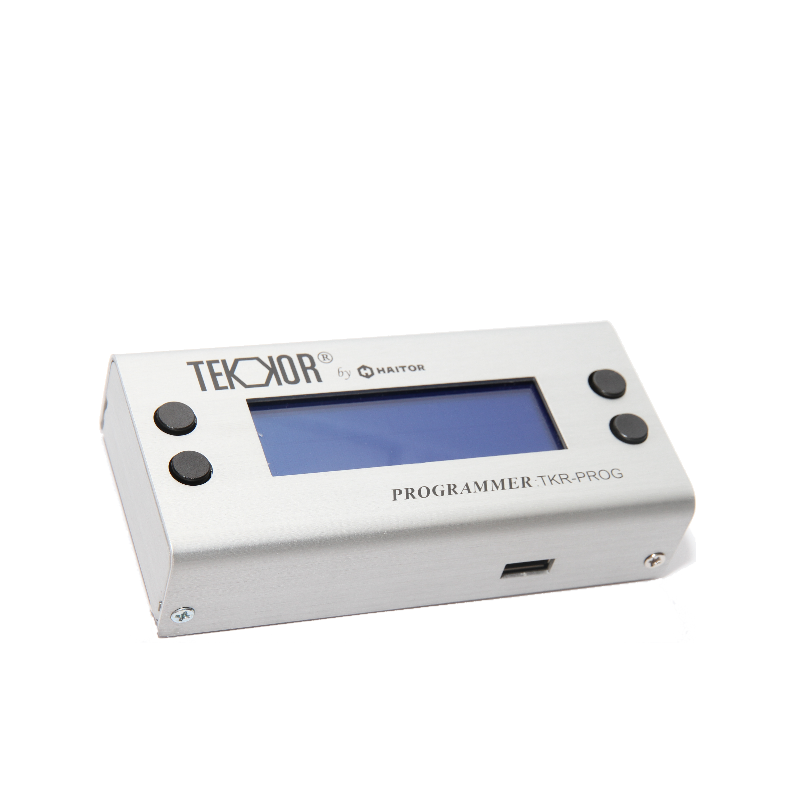

The perfect balance and ergonomy are combined with superb weight-to-power ratio in the Tekkor angle wrench series. A wide selection of models covers a range of 3 – 90 Nm and the accuracy of all the tools is +/- 2%. All battery-powered Tekkor tools use the same 18V Li-ion batteries and chargers, making the whole series flexible and easily expandable. In addition, all tools can be programmed with a separate Tekkor control unit, which is a brilliant accessory for fine-tuning tool speed, sounds, light signals and operation the trigger.

  • Reliably and accurately repeatable operation
  • Service-free, brushless electric motor
  • A wide selection of different models for every possible application
  • Easy-to-read LED signals and audio signals for OK / NOK tightening operation
  • Programmable rpm and adjustable trigger
  • Soft-start
  • Battery monitoring feature; the tool shuts itself off when the battery charge drops below the level for sufficient operation
  • Quiet operation <75 db(A)
  • Low vibration level <2,5 m/s2



More from Tekkor >>

Category:

Description

Long angle models
Item Drive Torque Range (Nm) Length (mm) Weight (kg) Free Speed (rpm)
TKR-K12Q 1/4″ QC 3 – 12 483 1,5 400 – 1 000
TKR-K124 1/4″ SQ 3 – 12 483 1,5 400 – 1 000
TKR-K126 3/8″ SQ 3 – 12 483 1,5 400 – 1 000
TKR-K18Q 1/4″ QC 5 – 18 483 1,5 300 – 600
TKR-K164 1/4″ SQ 5 – 16 483 1,5 300 – 600
TKR-K166 3/8″ SQ 5 – 16 483 1,5 300 – 600
TKR-K306 3/8″ SQ 8 – 30 488 1,6 250 – 480
TKR-K356 3/8″ SQ 10 – 35 488 1,6 200 – 330
TKR-K506 3/8″ SQ 10 – 50 579 2 200
TKR-K508 1/2″ SQ 10 – 50 579 2 200
TKR-K606 3/8″ SQ 25 – 60 579 2 160
TKR-K608 1/2″ SQ 25 – 60 579 2 160
TKR-K706 3/8″ SQ 20 – 70 593 2,5 170
TKR-K708 1/2″ SQ 20 – 70 593 2,5 170
TKR-K908 1/2″ SQ 40 – 90 593 2,5 90
Short angle models
Item Drive Torque Range (Nm) Length (mm) Weight (kg) Free Speed (rpm)
TKR-KL07Q 1/4″ QC 2 – 7 375 1,5 400 – 800
TKR-KL074 1/4″ SQ 2 – 7 375 1,5 400 – 800
TKR-KL076 3/8″ SQ 2 – 7 375 1,5 400 – 800
TKR-KL14Q 1/4″ QC 4 – 14 375 1,5 200 – 500
TKR-KL144 1/4″ SQ 4 – 14 375 1,5 200 – 500
TKR-KL146 3/8″ SQ 4 – 14 375 1,5 200 – 500
TKR-KL306 3/8″ SQ 8 – 30 450 1,8 200

Brand

Tekkor

Tekkor

Haitor's own brand Tekkor is our contract manufacturer's cost-effective alternative to most common fastening needs in the assembly industry. Our easy-to-use impulse wrenches and cordless screwdrivers are excellent choices when looking for an ergonomic, reliable, and repeatable solution for screw connections. The series consists of both pneumatic and battery-powered tools.
Tekkor

Product Sheet

Product Sheet (in Finnish) [PDF]
