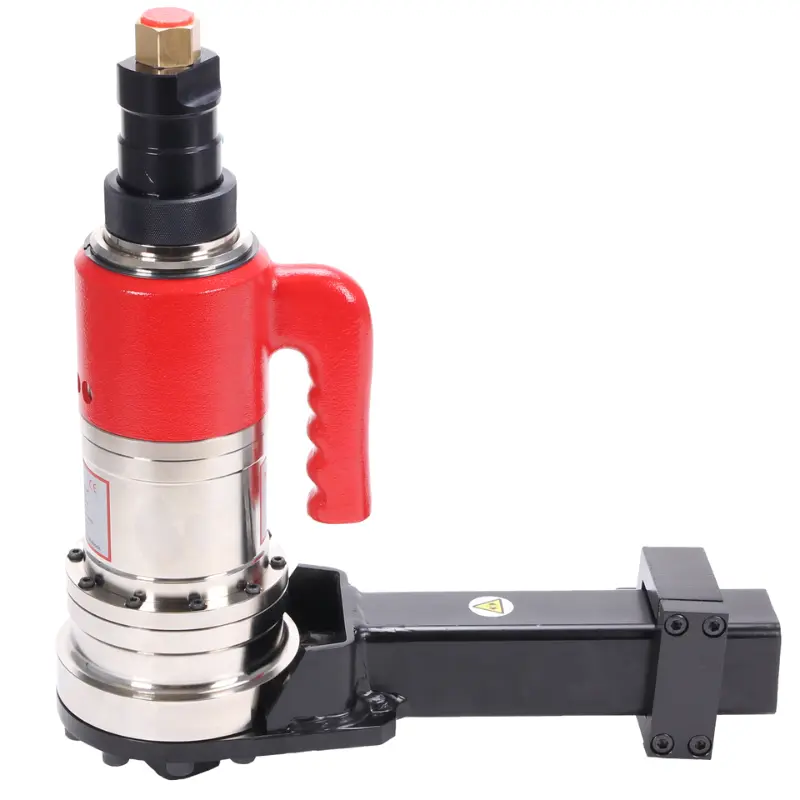

PneuTorque Standard

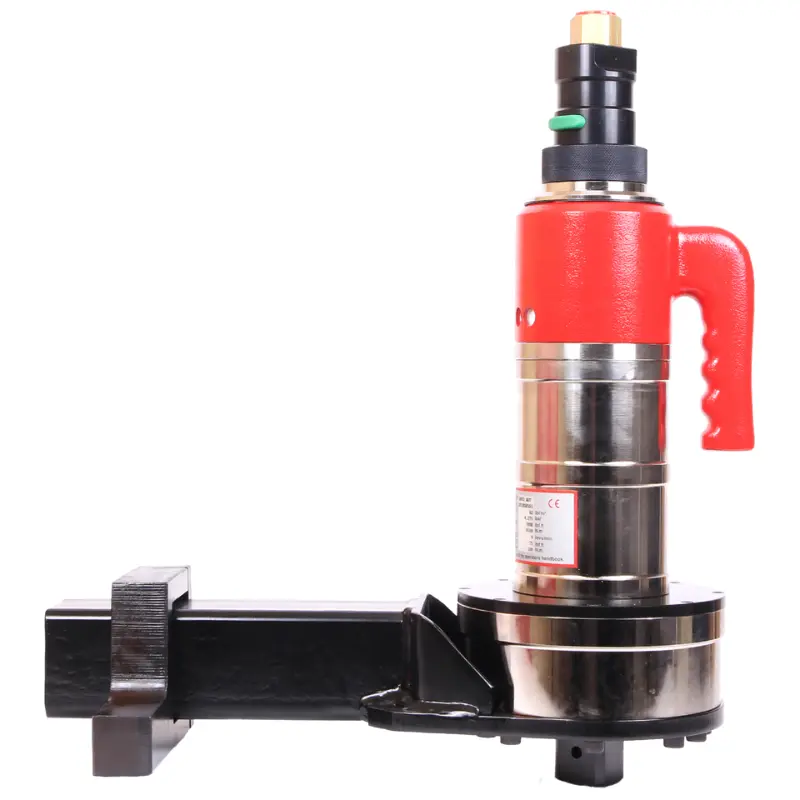

PneuTorque Standard - Image 2
PneuTorque Standard - Image 3
Norbar

PneuTorque Standard

Pneumatic torque wrench

The Norbar PneuTorque Standard series is based on over 50 years of continuous development, making it one of the most widely used pneumatic torque wrenches in the world. Wrenches are available up to 300 000 Nm. The dual-speed models offer up to five times the run-down speed in addition to the single-speed features. The torque wrenches are quiet, vibration-free and feature stall control for ±5% repeatability. The wrenches can be fitted with a fixed torque sensor.

  • Designed for industrial bolted joints
  • Models available up to 300 000 Nm (over 6000 Nm on request)
  • Also available in dual speed: up to 5× faster pre-tightening
  • Directional change: clockwise and counter-clockwise
  • Quiet running: 81 dB(A), uncertainty K = 3 dB
  • Low vibration: maximum measured value 0,444 m/s²
  • Repeatability better than ±5 %
  • Available with fixed torque sensor
  • Specially designed counter-force rods possible depending on the application



More from NORBAR >>

Category:

Description

One Speed Models
Model Item Torque Range Nm Drive Free Speed (rpm) Lenght (mm) Weight (kg) Reaction Arm (kg)
PT1 16031 160 – 680 3/4″ 30 368 10,6 2,2
PT1 16011 160 – 680 1″ 30 373 10,6 2,2
PT1A 16098 270 – 1 200 3/4″ 15 368 11,1 2,2
PT1A 16097 270 – 1 200 1″ 15 373 11,1 2,2
PT2 16013 515 – 1 700 1″ 9 373 11,1 2,2
PT5 16015 880 – 3 400 1″ 5 424 14 2,5
PT6 16017 880 – 3 400 1 1/2″ 5 430 14 2,5
PT7 16066 1 762 – 6 000 1 1/2″ 2,5 457 19,7 6,3
PT9 16072 2 710 – 9 500 1 1/2″ 1,8 452 24,4 8,3
PT11 16046 4 400 – 20 000 2 1/2″ 1,2 546 38,6 13,3
PT12 18086 9 500 – 34 000 2 1/2″ 0,5 593 49,8 6,5
PT13 16052 13 550 – 47 000 2 1/2″ 0,3 629 102,2 6,9
PT14 16045 22 375 – 100 000 3 1/2″ 0,2 726 119,4 10,4
Manual Two Speed
Model Item Torque Range Nm Drive Free Speed (rpm) Lenght (mm) Weight (kg) Reaction Arm (kg)
PT1 MTS 16031.MTS 160 – 680 3/4″ 150 454 14,1 2,2
PT1 MTS 16011.MTS 160 – 680 1″ 150 459 14,1 2,2
PT1A MTS 16098.MTS 270 – 1 200 3/4″ 75 454 14,6 2,2
PT1A MTS 16097.MTS 270 – 1 200 1″ 75 459 14,6 2,2
PT2 MTS 16013.MTS 515 – 1 700 1″ 45 459 14,6 2,2
PT5 MTS 16015.MTS 880 – 3 400 1″ 25 510 17,5 2,5
PT6 MTS 16017.MTS 880 – 3 400 1 1/2″ 25 516 17,5 2,5
PT7 MTS 16066.MTS 1 762 – 6 000 1 1/2″ 12,5 543 23,2 6,3
PT9 MTS 16072.MTS 2 710 – 9 500 1 1/2″ 9 538 27,9 8,3
PT11 MTS 16046.MTS 4 400 – 20 000 2 1/2″ 6 632 42,1 13,3
PT12 MTS 18086.MTS 9 500 – 34 000 2 1/2″ 2,5 679 53,3 6,5
PT13 MTS 16052.MTS 13 550 – 47 000 2 1/2″ 1,5 716 105,7 6,9
PT14 MTS 16045.MTS 22 375 – 100 000 3 1/2″ 1 800 122,9 10,4
PT18 MTS 16054.MTS 85 000 – 300 000 – 0.3 930 380 –
Automatic Two Speed
Model Item Torque Range Nm Drive Free Speed (rpm) Lenght (mm) Weight (kg) Reaction Arm (kg)
PT1 AUT 16031.AUT 160 – 680 3/4″ 150 437 14,1 2,2
PT1 AUT 16011.AUT 160 – 680 1″ 150 442 14,1 2,2
PT1A AUT 16098.AUT 270 – 1 200 3/4″ 75 437 14,6 2,2
PT1A AUT 16097.AUT 270 – 1 200 1″ 75 442 14,6 2,2
PT2 AUT 16013.AUT 515 – 1 700 1″ 45 442 14,6 2,2
PT5 AUT 16015.AUT 880 – 3 400 1″ 25 493 17,5 2,5
PT6 AUT 16017.AUT 880 – 3 400 1 1/2″ 25 499 17,5 2,5
PT7 AUT 16066.AUT 1 762 – 6 000 1 1/2″ 12,5 526 23,2 6,3
PT9 AUT 16072.AUT 2 710 – 9 500 1 1/2″ 9 521 27,9 8,3

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
