Norbar

TruCheck 2

TORQUE TESTER

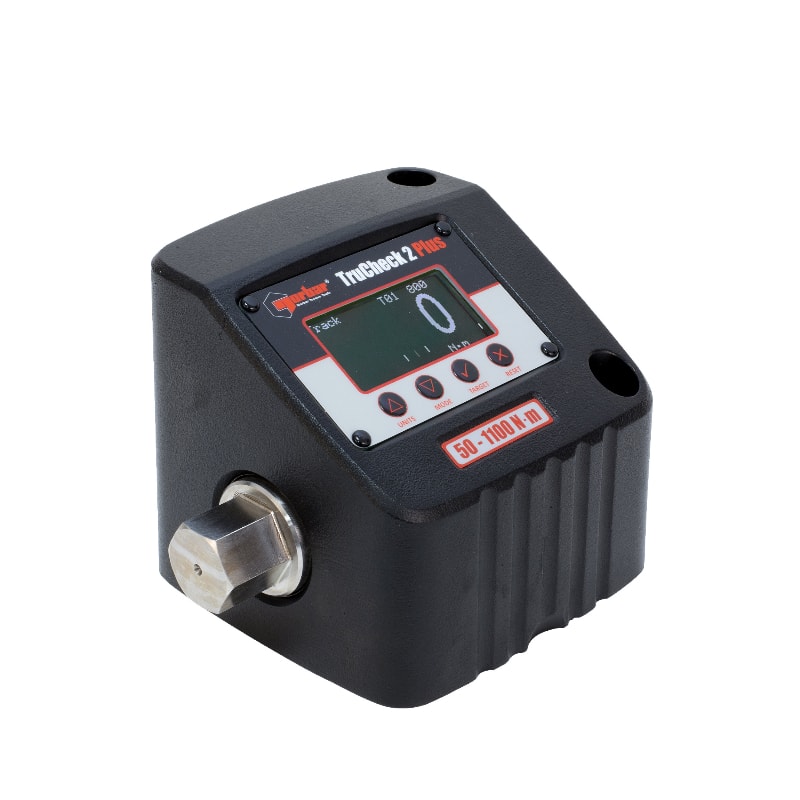

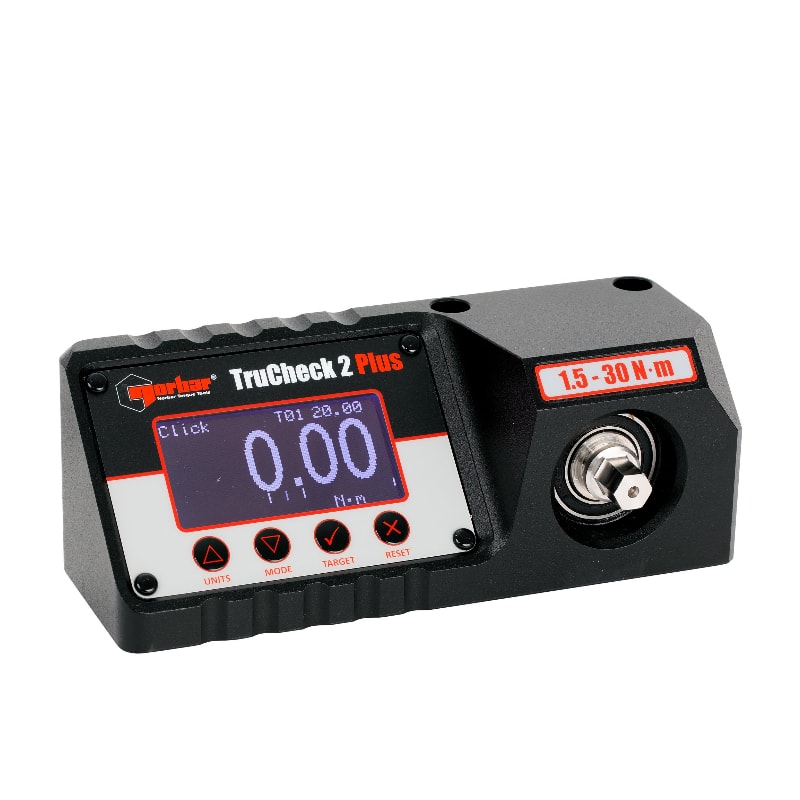

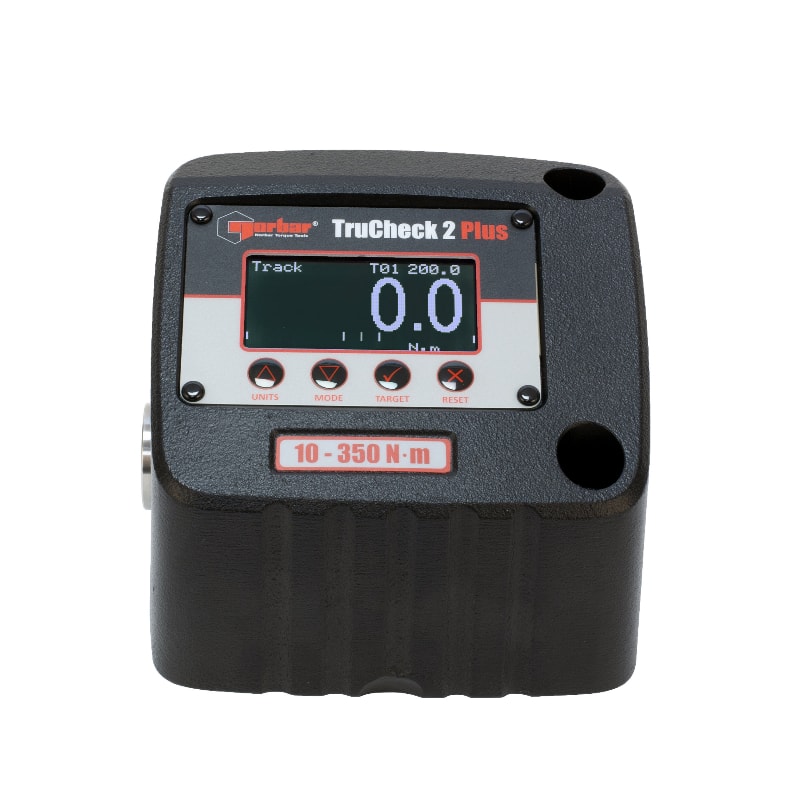

TruCheck 2 is a cost effective torque wrench checker that has been redesigned to incorporate improved features whilst maintaining ease of use. The TruCheck 2 aims to cut the cost of purchasing a torque wrench checking system and remove the reservations over the complexity of using such equipment. TruCheck 2 Plus allows a selection of torque units, three modes of operation (Click, Dial and Track), the ability to store up to 15 targets and select from 12 languages.

  • ±1% of reading accuracy
  • Resolution 0,1 Nm
  • Ability to set 15 preset values
  • Possible to use with either automatic or manual reset
  • Torque units: Nm, lbf.ft and lbf.in
  • Inbuilt Micro USB 2.0 port enables power from any USB power source
  • Supplied with an accredited calibration certificate

Description



TruCheck 2

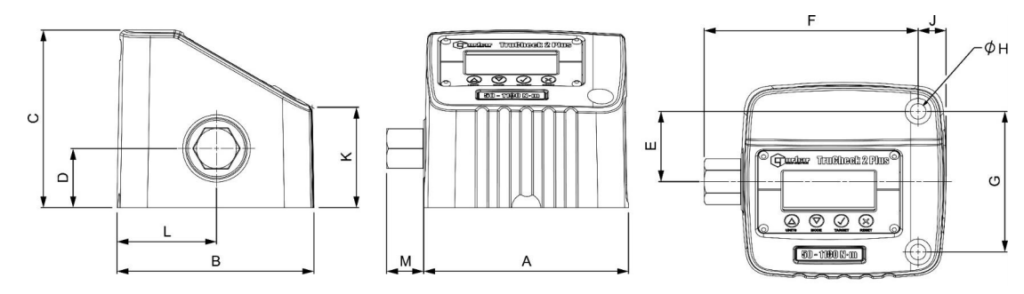

Item Basic Part No. Plus Part No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) Weight (kg) Torque Range (Nm) Drive Adaptors
TruCheck2 3 43514 43515 175 10 6,5 55 10 64 64 72 1,4 0,1 – 3 1/4″ m/hex 1/4″ f/sq
TruCheck2 10 43516 43517 175 10 6,5 55 10 64 64 72 1,4 0,5 – 10 1/4″ m/hex 1/4″ f/sq
TruCheck2 30 43518 43519 175 10 6,5 55 10 64 72 64 1,4 1,5 – 30 10 mm m/hex 1/4″ or 3/8 f/sq
TruCheck2 65 43520 43521 110 95 40 50 117 59 138 10,5 19 80 19 2,6 3 – 65 3/8″ f/sq
TruCheck2 350 43524 43525 110 95 40 50 117 59 138 10,5 19 80 19 2,6 10 – 350 1/2″ f/sq
TruCheck2 1100 43530 43531 120 105 40 60 133 67 138 10,5 19 95 20 3,5 50 – 1 100 27 mm m/hex 3/4″ f/sq
TruCheck2 2100 43532 43533 120 105 40 60 133 67 138 10,5 19 95 20 3,5 200 – 2 100 27 mm m/hex 1″ f/sq

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
Norbar

Product Sheet

Product Sheet (in Finnish) [PDF]
