Flange Mounted Transducers

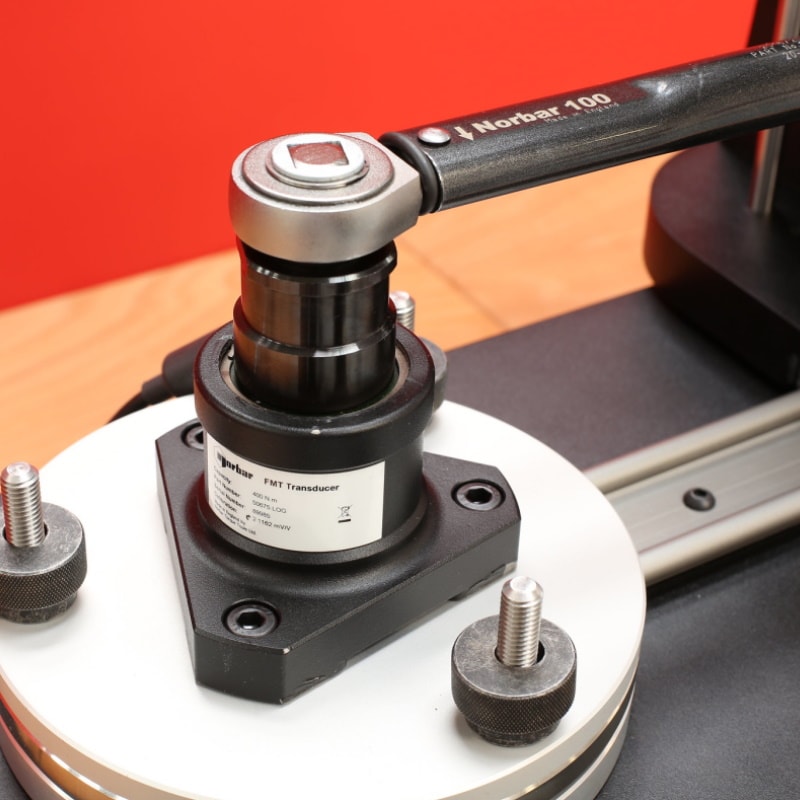

Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. Attaching points allow mounting the transducers on a flat surface or a torque wrench loader. The transducer lead is also included and is fitted with a high quality Lemo® connector.

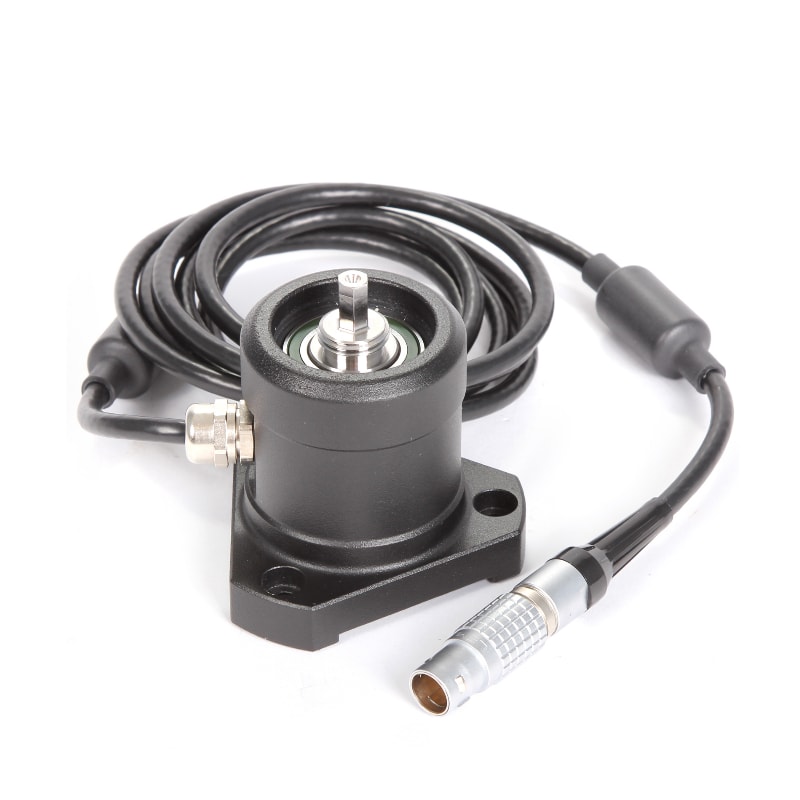

  • Transducer is equipped with a sensor cable
  • Typically better than Class 1 for the primary classification range ±0.5% of reading from 20% to 100% of full scale
  • ‘SMART’ transducers have a built in memory circuit containing essential information about the transducer – Norbar’s instruments immediately recognize the transducer and  are ready for use

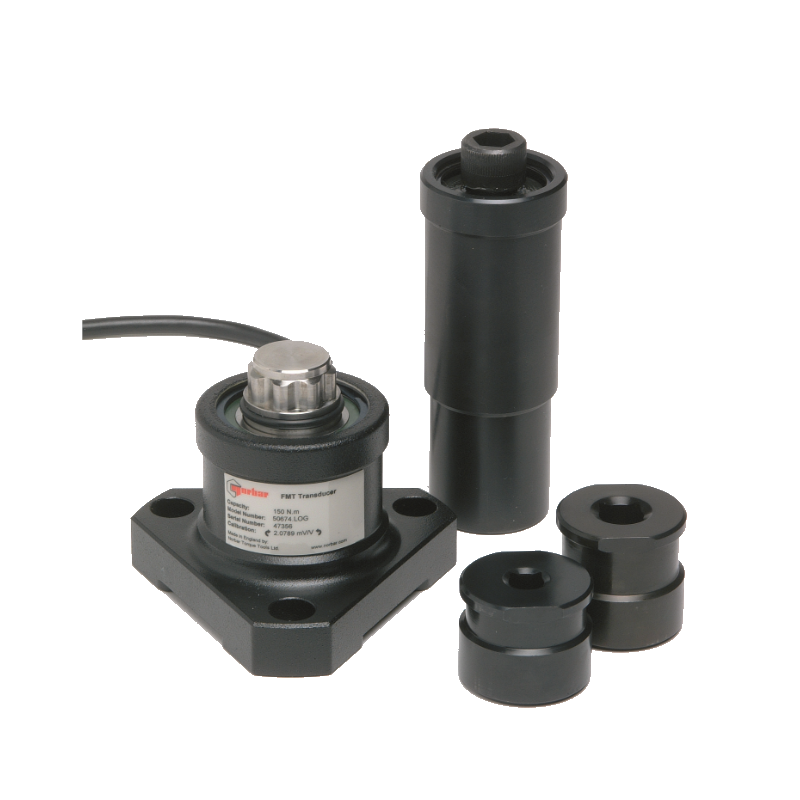

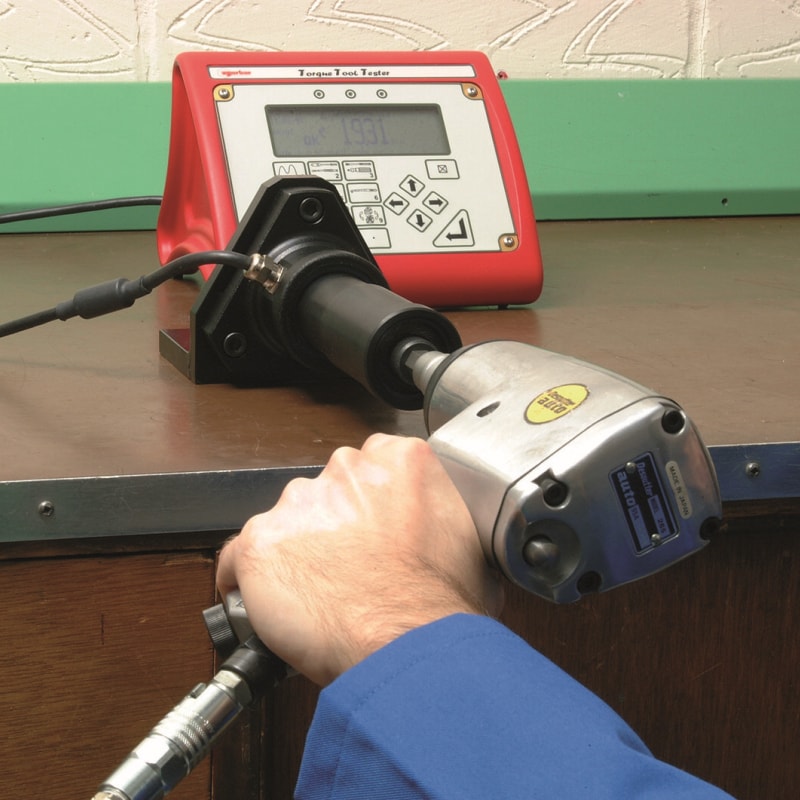

  • Rundown Fixture is included on transducers up to 150 Nm allowing joint simulation for power tool testing
  • Supplied with a calibration certificate

Description

Flange Mounted Transducers
Item Torque Range (Nm) Drive Rundown Drive
50671.xxx 0.04 – 2 1⁄4” 50539 1⁄4″ hex
50672.xxx 0.5 – 10 1⁄4” 50540 1⁄4″ hex
50673.xxx 1.25 – 25 1⁄4”  + 3⁄8” 50541 1⁄4″ hex
50844.xxx 3 – 60 3⁄8” + 1⁄2” 50845 22 m Bi-Square
50674.xxx 7.5 – 150 3⁄8”  + 1⁄2” 50692 22 mm Bi-Square
50675.xxx 20 – 400 1⁄2”  + 3⁄4” 50819 22 mm Bi-Square
50676.xxx 30 – 1 500 1⁄2”  + 3⁄4”  + 1” 22 mm Bi-Square
