Hydraulic Pump Units for Tensioners and Nuts

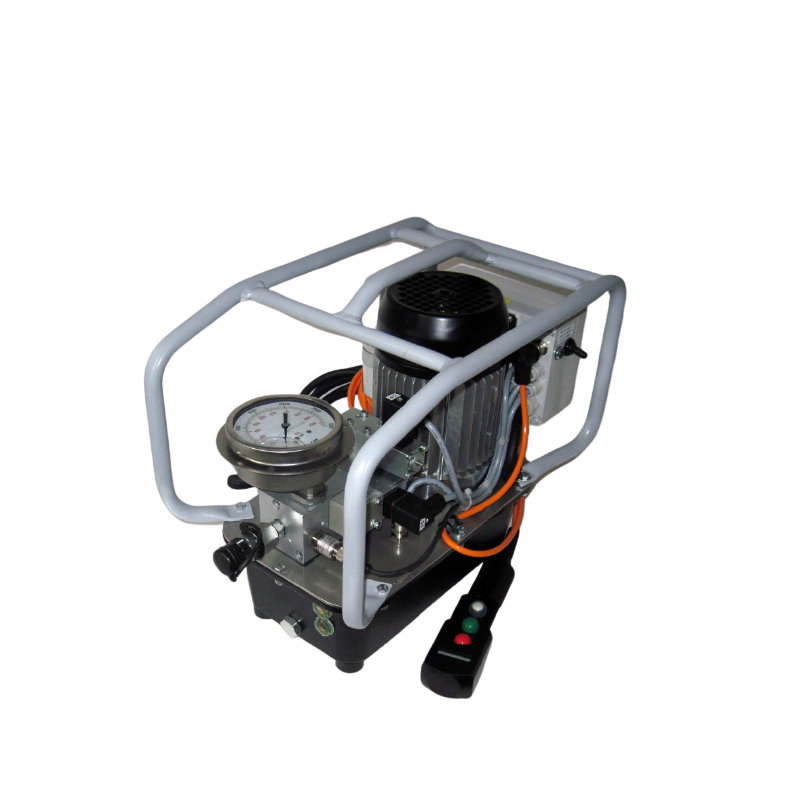

The HYT15A-230 is a complete electric driven high pressure hydraulic pump which generaters pressure up to 1500 bar. One of the major features of the pump unit is its ability to be controlled with an advanced and versatile remote control. The pump unit is designed to work in the most challenging conditions and is supplied with a calibrated pressure gauge, quick connectors, a declaration of conformity and a pressure test certificate.

  • Max. flow at 70 bar is 8,0 litres/minute – flow at maximum pressure 0,15 litres/minute
  • Max. pressure 1 500 bar, also available in 2 000 bar version
  • Light-weight and compact
  • Maintains pressure at set level automatically when pressure drops
  • Pressure can be released manually or from the remote control
  • Model with 5m electric cord shows pressure on the display of the remote


More from HYTORC >>

SKU: HYT15A-230 Category:


Item Max. Working Pressure (bar) Max. Consumption (l/min) Oil Capacity (l) Dimensions W x L x H (mm) Weight (kg)
HYT15A-230 1500 8,0/0,15 2,5 450 x 265 x 400 25





HYTORC is the world’s leader in hydraulic and pneumatic torque wrench manufacturing. With over 50 years of experience focused entirely on developing the highest quality industrial bolting systems, HYTORC is the most trusted name in the industry. The latest product line features patented industry-firsts like hands-free operation, onboard documentation systems and industry-leading bolt load accuracy to reduce nut loosening and joint failure. Haitor has been cooperating with HYTORC throughout its whole lifetime. Visit manufacturer's website >>

Product Sheet

Product Sheet (in Finnish) [PDF]
