Hydraulic Link Hoses and Couplings

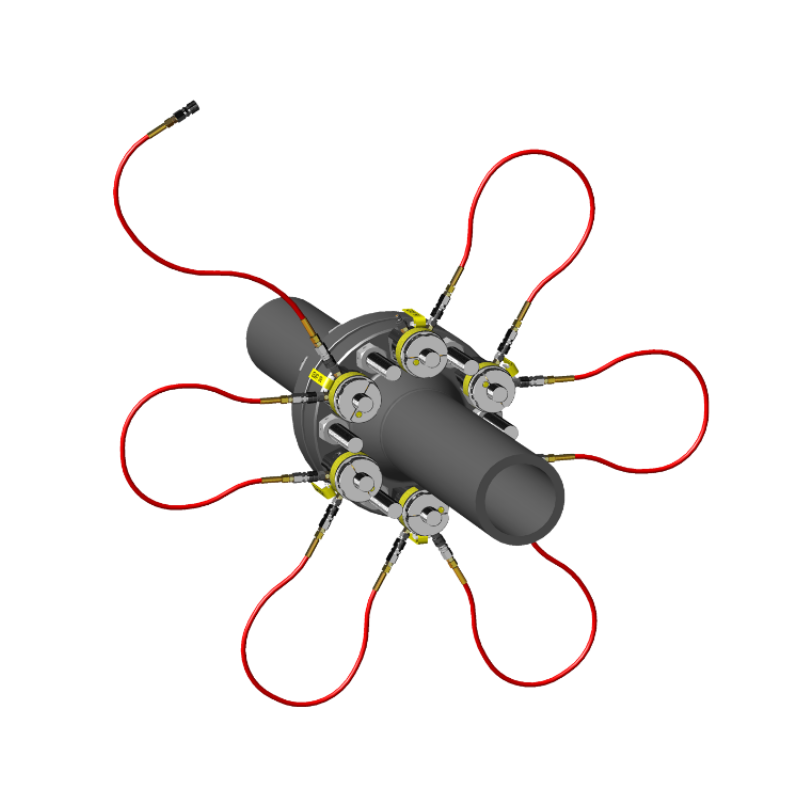

This flexible hose system is a quick and easy way to connect multiple or single bolt tensioning tools to a power pack pump. The high quality flexible hose is fitted with suitable male and female quick release hydraulic connections making bolt tensioning tool linking a very rapid and intuitive task. Hoses are supplied in 1m, 1.5m, 2m, 2.5m & 3m lengths, in addition other lengths are available on request. All hoses are equipped with a transparent, safety requirements fulfilling PVC leakage protection hose.

  • High pressure rating and brittle-free, long-lasting hose material
  • Working pressures 1500 and 2500 bar
  • Color coding, 1500 bar hose is blue and 2500 bar hose is red
  • All hoses are delivered with pressure testing and inspection certificates according to ISO standard requirements
  • Compact, protective PVC  design
  • Unique patented sealing design
  • Non-Drip on connection and disconnection
Category:

Description

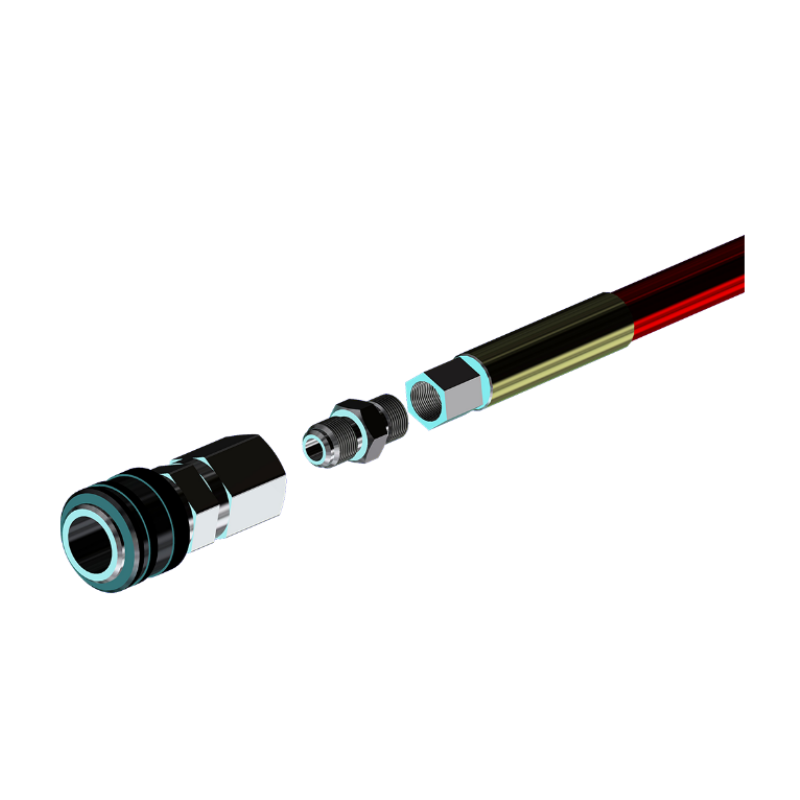

Hydraulic link hoses and couplings
Item Description Color
KPHL1500-X High pressure hose 1 500 bar, length x meters, female-male 116-connections blue
KPHL1501-X High pressure hose 1 500 bar, length x meters, female-female 116-connections blue
KPHL1502-X High pressure hose 1 500 bar, length x meters, male-male 116-connections blue
KPHL2500-X High pressure hose 2 500 bar, length x meters, female-male 125-connections red
KPHL2501-X High pressure hose 2 500 bar, length x meters, female-female 125-connections red
KPHL2502-X High pressure hose 2 500 bar, length x meters, male-male 125-connections red
